• Model NO.：SWD80
• Engine Power：<74kw
• Certification：ISO9001: 2000, ISO140001
• Condition：New
• Color：Yellow
• Blade Type：Straight
• Blade Capacity：3.0 M3
• Track Width：400 mm
• Max. Tractive Force：65kn
• Operating Weight：8.7 Ton
• Transport Package：Naked
• Specification：ISO
• Trademark：SINOWAY
• Origin：China
• HS Code：84314990
• Production Capacity：50 Units,Month

Basic Info.

Model NO. SWD80 Engine Power <74kw Certification ISO9001: 2000, ISO140001 Condition New Color Yellow Blade Type Straight Blade Capacity 3.0 M3 Track Width 400 mm Max. Tractive Force 65kn Operating Weight 8.7 Ton Transport Package Naked Specification ISO Trademark SINOWAY Origin China HS Code 84314990 Production Capacity 50 Units/Month

Product Description

Main Features for SINOWAY SWD80 Agriculture Bulldozer

The machine adopts the LR4A3Z-22 diesel engine, which is featured with a big power reserve, strong output power and low specific fuel consumption.

Gearbox is applied to 4F plus 2R mechanical shift, which is suitable for several kinds of environment.

Integral trolley traveling construction adopting rigid chassis and semi-rigid hemger.

The advanced control system is equipped to turn around with full hydraulic, with flexible and laborsaving operation.

Driver's cab is welded with profile steel, with high strength, resistant against impact and good protection performance.

The bulldozer is applicable for construction in narrow ground, which is flexible and high in its operation efficiency.

The machine adopts the YTO LR4A3Z-22 diesel engine, which is featured with a big power reserve, strong output power and low specific fuel consumption.

Gearbox is applied to 4F plus 2R mechanical shift, which is suitable for several kinds of environment.

Integral trolley traveling construction adopting rigid chassis and semi-rigid hemger.

The advanced control system is equipped to turn around with full hydraulic, with flexible and laborsaving operation.

Driver's cab is welded with profile steel, with high strength, resistant against impact and good protection performance.

The bulldozer is applicable for construction in narrow ground, which is flexible and high in its operation efficiency.

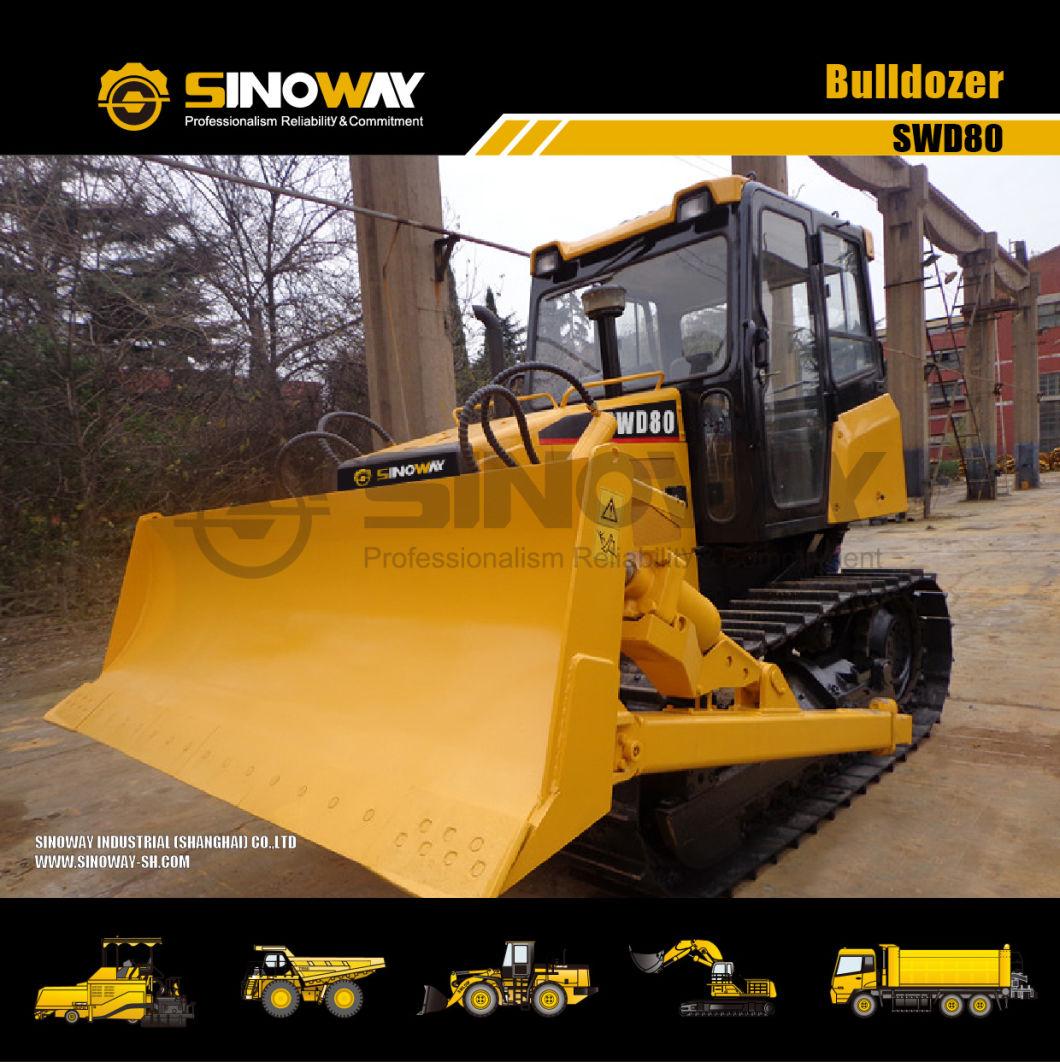

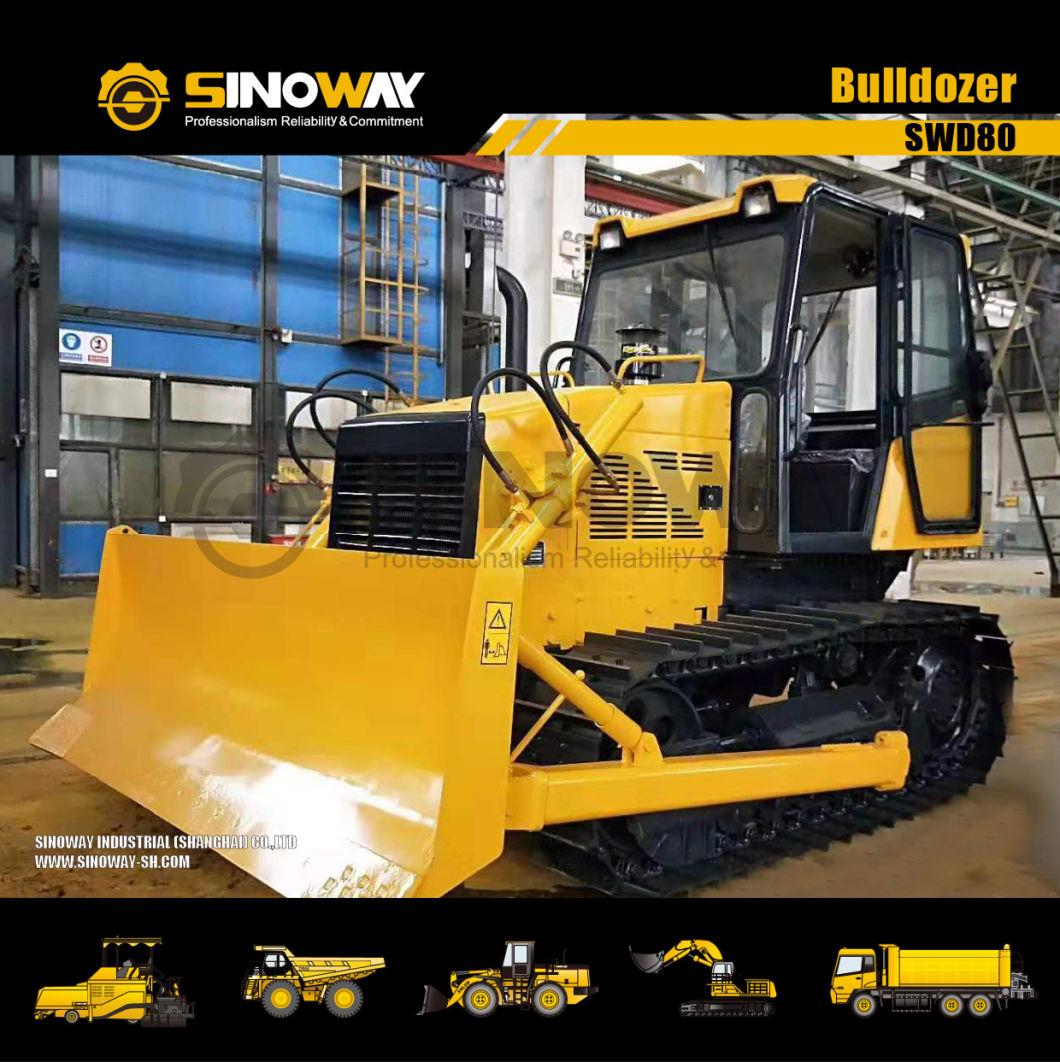

Product Show

Specifications

Engine
Model	YTO
Type	Four-cylinder,water-cooled turbocharged,mechanical injection
Rated power	60KW
Rated speed	2200rpm
Implement Hydraulic System
Hydraulic flow rate	110L/min
Hydraulic pressure	16MPa
Pump type	Gear pump
Control valve	Hand operated
Under Carriage System
Sprocket	Integral
Number of track rollers (each side)	5
Number of carrier rollers (each side)	(3 single, 2 double)
Number of front idler (each side)	11
Track type	Single grouser
Track tension	Hydraulic
Track pitch	154mm
Track width	400mm
Number of track shoes (each side)	39
Track length on ground	1960mm
Ground clearance	350mm
Main Technical Specification
Operating weight(without ripper)	8700Kg
Ground pressure(without ripper)	0.051MPa
Grade ability	58%
Overall dimensions (L×W×H,without ripper)	4200×2544×2934mm
Max. tractive force	66KN
Working Equipment
Blade type	Straight
Width	2544mm
Height	880mm
Max. digging depth	357mm
Max. lift above ground	784mm
Tilting angle	10°
Blade capacity	3m3
Transmission System
Gear box	Mechanical
Bevel gear	One pair spiral bevel gear
Final drive	One pair columnar gear floating sealing
Gear shifts(Forward/Reverse)Travelling speed(km/h)	F4/R2
Forward/Reverse I	2.4~10.4
Forward/Reverse II	4.9~8.9
Service Capacities
Fuel tank	100L
Water tank	22L
Implement oil tank	29L
Steering clutch	Dry multi-plate, floating control
Steering brake	Mechanical pedal control
