14ton Single Drum Vibratory Road Roller Vibration Asphalt Compactor Roller with Padfoot Shell
Sinoway Industrial (Shanghai) Co., Ltd.- Type:Road Roller
- Working Method:Vibration
- Axle:Uniaxial Monowheel
- Grinding Wheel Type:Sheep Foot Roller
- Compaction Depth:40cm
- Engine Type:Diesel Engine
Base Info
- Model NO.:SWR214H
- Travel Speed:40cm,s
- Centrifugal Force:290kn
- Certification:CE, ISO 9001:2008
- Condition:New
- Drum Width:2100 mm
- Drum Dia.:1600 mm
- Tire Size:23.1-26
- Transport Package:Nude
- Specification:ISO2008
- Trademark:Sinoway
- Origin:CHINA
- HS Code:84294019
- Production Capacity:300 Units,Month
Description
EngineModel Cummins 6BT5.9 Type Six-cylinder,water-cooled,turbocharged, mechanical injection Rated power 110kw Rated speed 2300rpm Transmission System Type Hydraulic drive Grade ability 35% Travelling speed (km/h) Forward/Reverse 0 - 11 Travelling pump Sauer/Rexroth piston pump Travelling motor Sauer/Rexroth piston motor Axle Drive type Dual wheel drive Front axle load 7700Kg Rear axle load 6300Kg Main Technical Specification Operating weight 14000Kg Type Hydraulic vibration Frequency 29/35Hz Amplitude 0.9 / 1.8mm Static linear load 400N/cm Vertical oscillation 8º Drum shell thickness 24mm Centrifugal force (high ampl.) 290KN Centrifugal force (low ampl.) 180KN Working pressure 42MPa Steering System Type Hydraulic articulated steering Steering cylinder Two cylinders Steering pump Gear pump Working pressure 13MPa Steering angle ± 35° Min. Steering radius 7500mm Braking System Service brake Oil -cut off brake Parking brake Hand operated drum brake Service Capacities Hydraulic tank 180L Drive axle central gear box 25L Fuel tank 200L Engine crank case 19L Dimensions Overall length 5820mm Overall width 2278mm Overall height 3050mm Drum width 2100mm Wheel base 3160mm Drum Dia. 1600mm Tyre size 23.1-26 Ground clearance 472mm Optional Pad foot Compaction meter

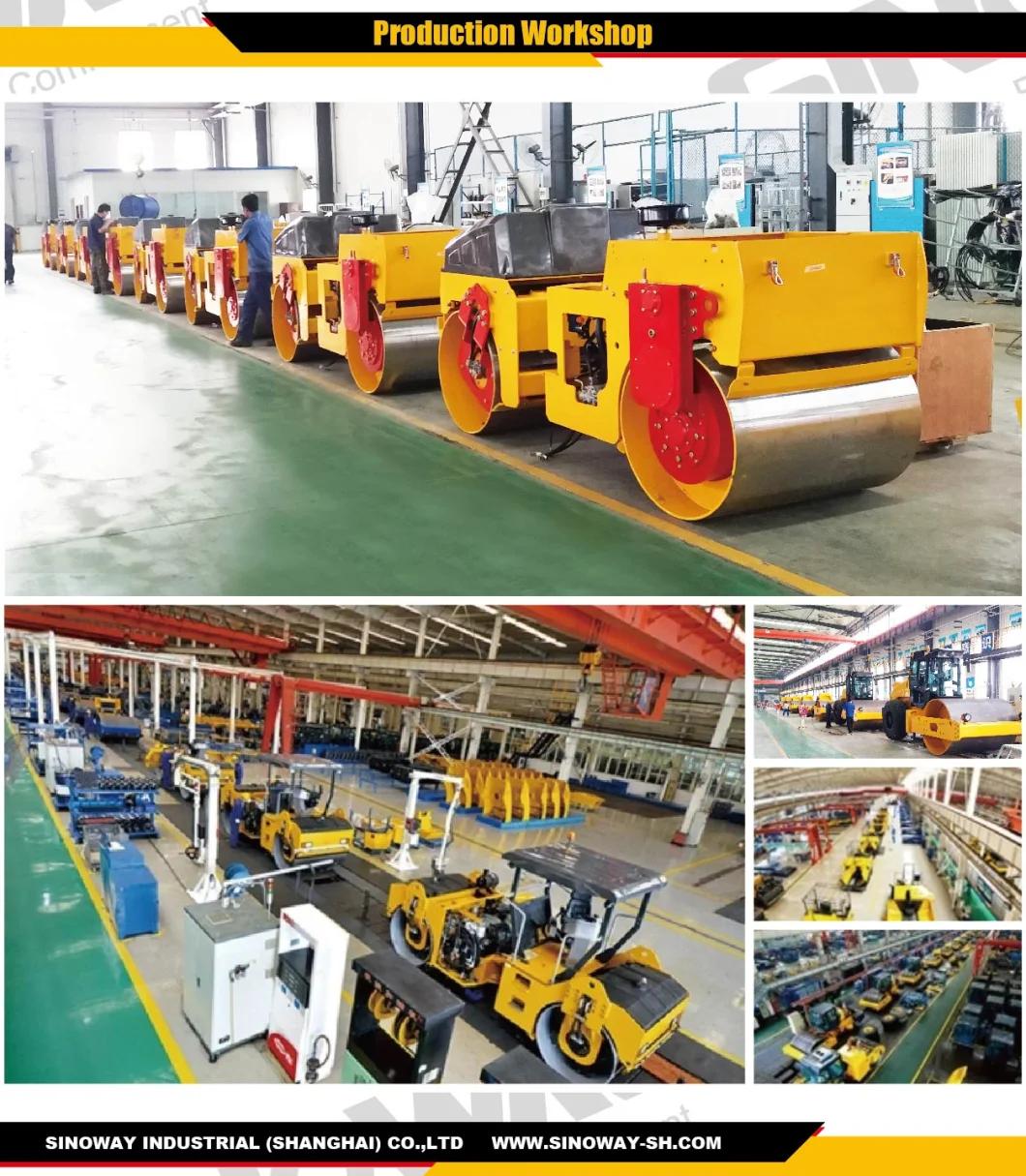

Production Line
