• Model NO.：SWG180
• Blade Wide：3965mm
• Drive Type：6X4
• Engine Make：Cummins
• Rated Power：180HP
• Warranty：12 Months
• Brand：Sinoway
• Transport Package：Nude
• Specification：180hp
• Trademark：SINOWAY
• Origin：China
• HS Code：84314990
• Production Capacity：200 Unit Per Year

Basic Info.

Model NO. SWG180 Blade Wide 3965mm Drive Type 6X4 Engine Make Cummins Rated Power 180HP Warranty 12 Months Brand Sinoway Transport Package Nude Specification 180hp Trademark SINOWAY Origin China HS Code 84314990 Production Capacity 200 Unit Per Year

Product Description

Main Features

♠ Articulated frame with front wheel steering, small turning radius and flexible maneuverability.

♠ Electro-hydraulic control power shift gearbox, 6 gears forward and 3 gears backward.

♠ Internationalized hydraulic fittings, reliable operation.

♠ The action of spade is controlled by full hydraulic pressure.

♠ The rear axle is a three-stage drive axle equipped with NO-SPIN self-locking differential.

♠ The control platform and seat can be adjusted, the control handle and instrument are arranged reasonably, the use is convenient, and the driving comfort is improved.

♠ The cab is luxurious and beautiful, with wide vision and good sealing.

♠ It can be equipped with front bulldozer, back looser, front looser rake and automatic leveling device.

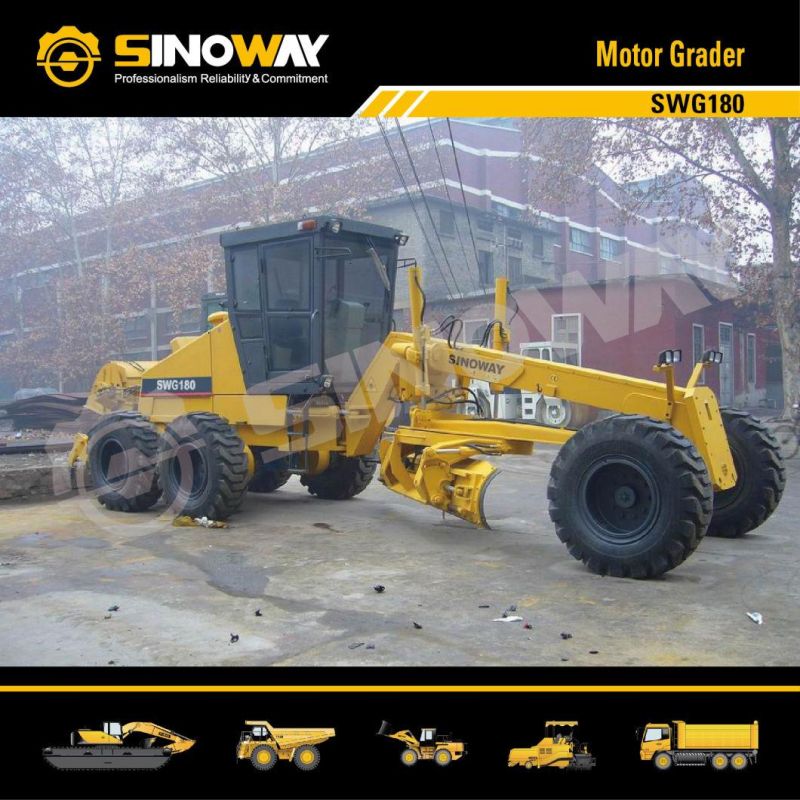

Product Show


Specifications

Engine
Model	Cummins 6BTA5.9
Type	Six-cylinder,water-cooled,turbocharged, aftercooled, mechanical injection
Rated power	132KW
Rated speed	2300rpm
Transmission System
Torque conveter type	3 elements, single stage
Torque ratio	1.5~3
Cooling type	Oil cooled, pressure circulation
Gearbox type	Power shift
Gear shifts(Forward/Reverse)Travelling speed(km/h)	F6/R3
Forward/Reverse I	5.2/5.2
Forward/Reverse II	7.9/11.8
Forward/Reverse III	11.8/25.0
Forward IV	17.9
Forward V	25
Forward VI	36.1
Steering System
Front wheel steering angle	45º(L/R)
Articulated steering angle	25º(L/R)
Drive type	Dual action cylinder
Axle
Drive type	Four wheel drive(6×4)
Front axle ground clearance	630mm
Front wheel lean	17º(L/R)
Oscillation	±15º
Drive axle	Three stages with No-SPIN differential
Working Equipment
Control system	Hydrostatic drive system
Hydraulic pump	Gear pump
Control valve	Two sets, five pieces per set
Control pressure	18MPa
Hydraulic oil cylinder	Dual action cylinder
Max. tractive force	80.3KN
Ground penetration	500mm
Blade width	3965mm
Blade cycling	360º
Max. bank cutting angle	90º(L/R)
Operating weight	15400kg
Braking System
Service brake	Hydraulic caliper disc brake actuate 4 rear wheels
Parking brake	Hand operated hoop brake
Dimensions
Overall length	8700mm
Overall width(wheel outside)	2600mm
Overall height	3500mm
Wheel base	5985mm
Front tread	2150mm
Rear tread	2340mm
Tyre size	17.5-25
Service Capacities
Fuel tank	228L
Engine crank case	19L
Hydraulic tank	130L
Gear box	21L
Rear axle	28L
Balance box	23L(each)
Worm gear case	2.5L
Tandem Drive
Type	Swing type with roller chain transmission
Speed ratio	18.03
