• Model NO.：SWD100
• Condition：New
• Color：Yellow
• Blade Type：Straight
• Blade Capacity：3.5 M3
• Blade Height：960mm
• Track Width：450 mm
• Rear Ripper：as Optional
• Warranty：One Year
• Transport Package：Naked
• Specification：ISO
• Trademark：SINOWAY
• Origin：China
• HS Code：84291110
• Production Capacity：200PCS,Month

Basic Info.

Model NO. SWD100 Condition New Color Yellow Blade Type Straight Blade Capacity 3.5 M3 Blade Height 960mm Track Width 450 mm Rear Ripper as Optional Warranty One Year Transport Package Naked Specification ISO Trademark SINOWAY Origin China HS Code 84291110 Production Capacity 200PCS/Month

Product Description

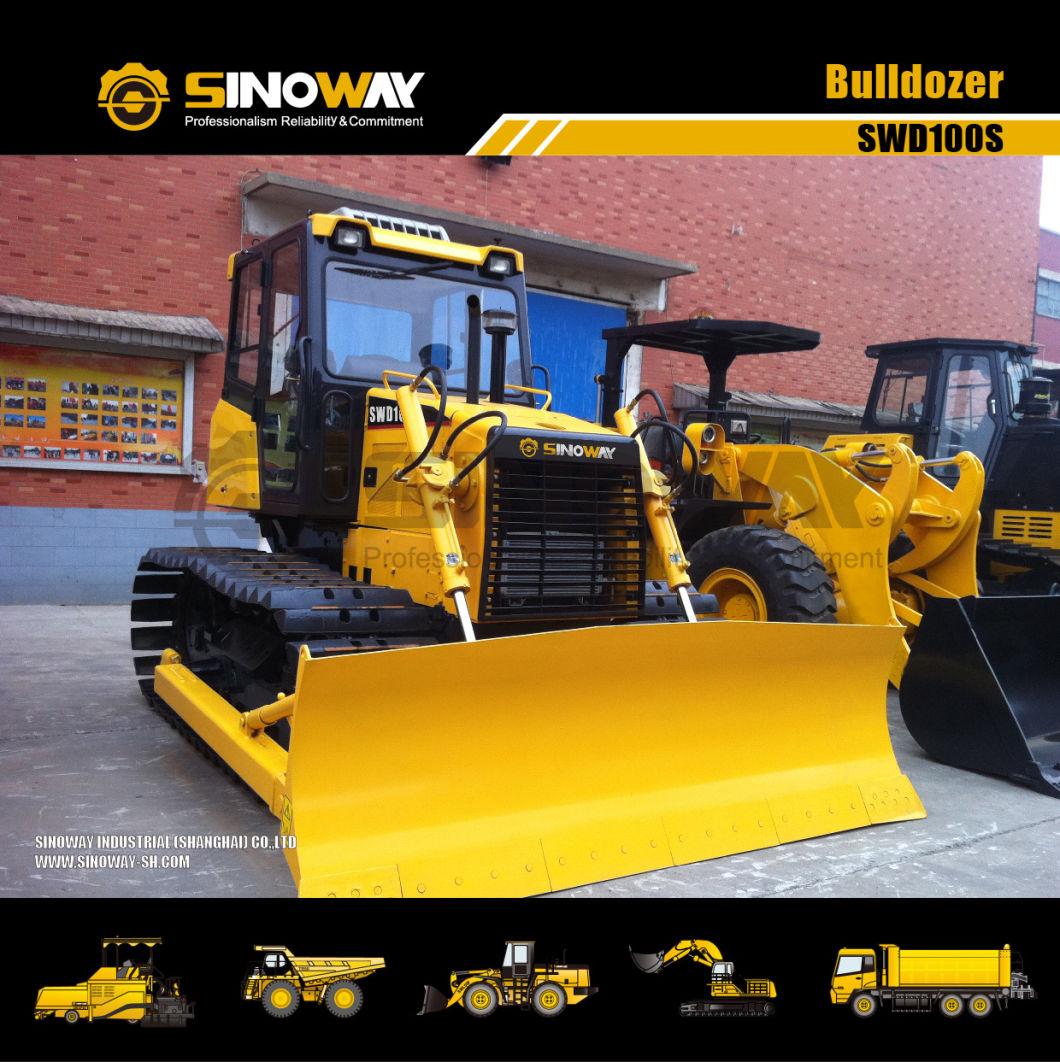

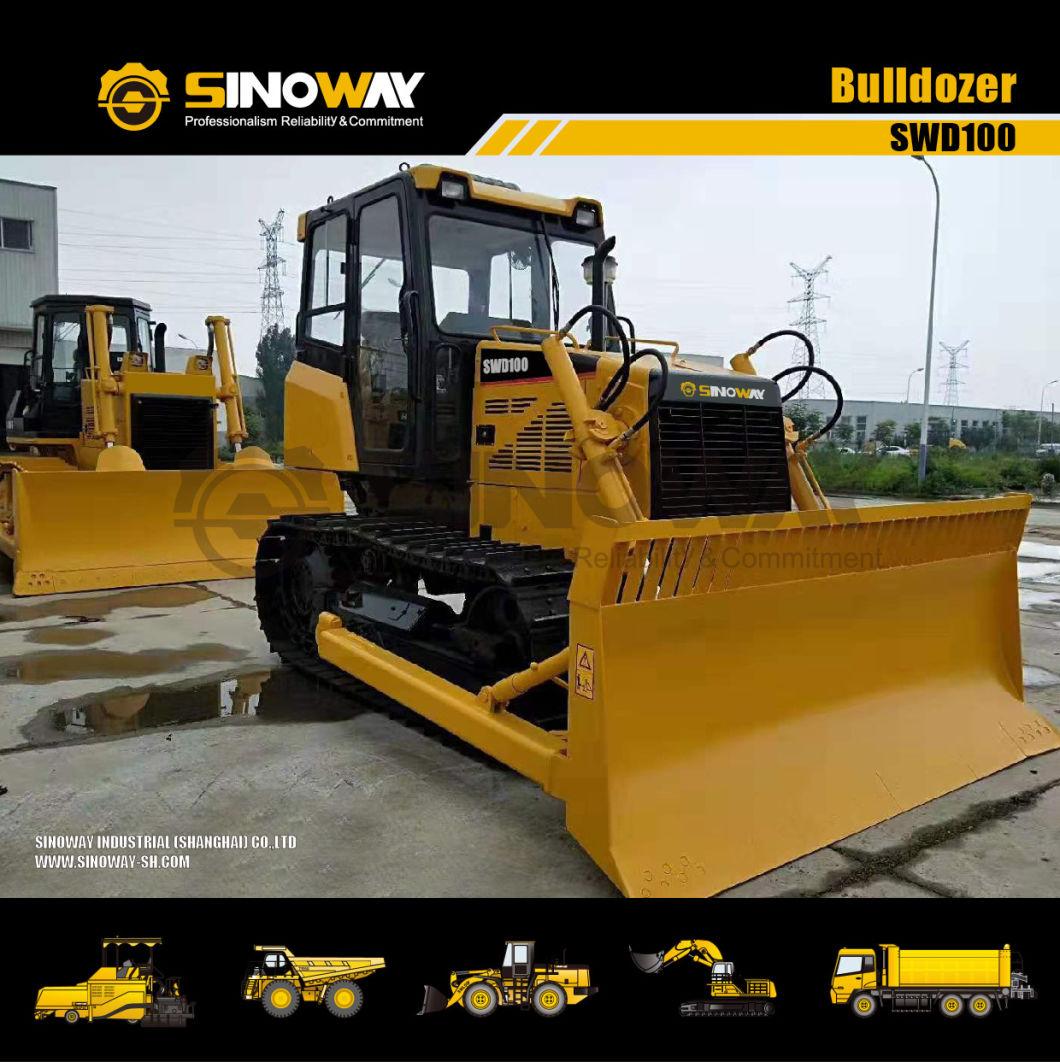

Highlight for SINOWAY SWD100 Bulldozer

SWD100 bulldozer is 100 horsepower track-type dozer with elevated sprocket, power shift drive, semi-rigid suspended and hydraulic controls.
100 horsepower, elevated sprocket bulldozer integrate with modular design is easy to repair & maintenance, It relieves oil with difference pressure, the hydraulic system performs protecting environment and save energy with high working efficiency. Safety comfortable operation condition, electric monitoring and ROPS cabin with reliable entire quality, excellent service is your wise choosing.
It can be equipped with straight tilting blade, angle blade, coal pushing blade, U shape blade; single shank ripper, three shanks ripper; ROPS, FOPS, forest defence cabin etc.. It is can ideal machine used in communication, oil field, power, mining etc. large earth moving program.

Sinoway supply a broad line of crawler bulldozers, including compact models, small and large construction bulldozers, mining dozers and swamp bulldozer. Whether your application is moving dirt from construction sites, landscaping residential areas, or even breaking limestone at a mine pit, Sinoway bulldozers will meet your needs.


Product Show




Specifications


Engine
Model	RICARDO tech diesel engine LR6A3
Type	Six-cylinder,water-cooled normally aspirated,mechanical injection
Rated power	73.5KW
Rated speed	2300rpm
Implement Hydraulic System
Hydraulic flow rate	115L/min
Hydraulic pressure	16MPa
Pump type	Gear pump
Control valve	Hand operated
Under Carriage System
Sprocket	Integral
Number of track rollers (each side)	6
Number of carrier rollers (each side)	(4 single, 2 double)
Number of front idler (each side)	11
Track type	Single grouser
Track tension	Hydraulic
Track pitch	171mm
Track width	450mm
Number of track shoes (each side)	39
Track length on ground	2160mm
Ground clearance	368mm
Main Technical Specification
Operating weight(without ripper)	10000Kg
Ground pressure(without ripper)	0.054MPa
Grade ability	58%
Overall dimensions (L×W×H,without ripper)	4190×2935×2982mm
Max. tractive force	81KN
Working Equipment
Blade type	Straight
Width	2935mm
Height	960mm
Max. digging depth	350mm
Max. lift above ground	830mm
Tilting angle	8.5°
Blade capacity	3.5m3
Transmission System
Gear box	Mechanical
Bevel gear	One pair spiral bevel gear
Final drive	One pair columnar gear floating sealing
Gear shifts(Forward/Reverse)Travelling speed(km/h)	F4/R2
Forward/Reverse I	2.6~10.4
Forward/Reverse II	3.7~6.7
Service Capacities
Fuel tank	250L
Water tank	22L
Implement oil tank	30L
Steering clutch	Dry multi-plate, floating control
Steering brake	Mechanical pedal control
