• Model NO.：SWL30
• Type：Small Loader
• Brand：Sinoway
• Product Name：Shovel Loader
• Operating Weight：10.2 Ton
• Bucket Capacity：1.7 M3
• Max. Traction Force：93.5 Kn
• Dumping Clearance：3160mm
• Tire Size：17.5-25
• A/C：Optional
• Warranty：One Year
• Transport Package：Nude
• Specification：ISO
• Trademark：SINOWAY
• Origin：China
• HS Code：8429510000
• Production Capacity：500 PC,Month

Basic Info.

Model NO. SWL30 Type Small Loader Brand Sinoway Product Name Shovel Loader Operating Weight 10.2 Ton Bucket Capacity 1.7 M3 Max. Traction Force 93.5 Kn Dumping Clearance 3160mm Tire Size 17.5-25 A/C Optional Warranty One Year Transport Package Nude Specification ISO Trademark SINOWAY Origin China HS Code 8429510000 Production Capacity 500 PC/Month

Product Description

Main Features

Power to work harder
Our new wheel loaders match their power to the job with world-class, versatile engines, designed to maximize torque and deliver more power and breakout force at lower engine speeds.
Transmission Efficiency
The new ZF tech.power shift transmission,including torque converter, cleverly adapts to any situation, ensuring the maximum transfer of power to improve performance and fuel efficiency.
Adaptive Hydraulics
Sinoway new-generation advanced hydraulic system adapts itself to any job organizing the mechanical, electrical and hydraulic systems to work in perfect harmony. Power is supplied only as needed, achieving optimum operation, whatever the application.
New Z bar linkage 7
Optimized Z-Bar geometry further improves the adaptability of our machines enhancing bucket breakout force, loading stability, speed and operator visibility.
For the ultimate in traction and manoeuvrability, you can rely on our limited-slip differential axles. They automatically deliver power to the wheels making turning easier, reducing tire wear and maximizing bucket-filling performance.

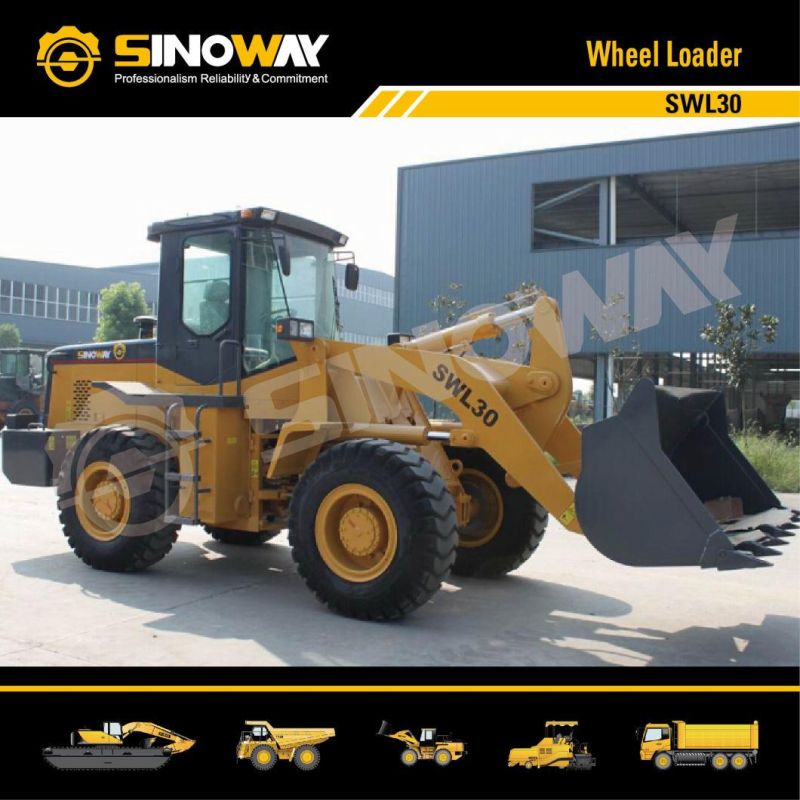

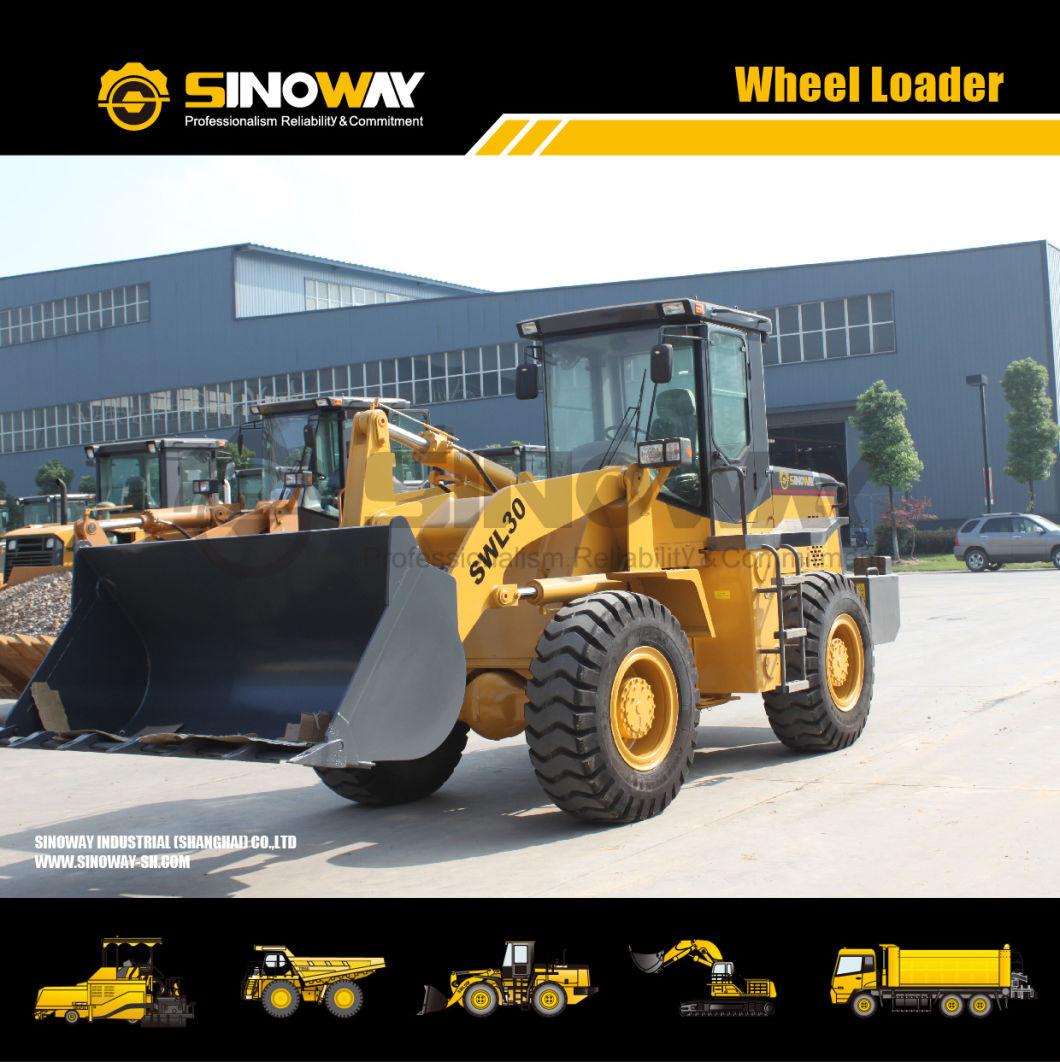

Product Show




Specifications

Engine
Model	Cummins 6BT5.9
Type	Six-cylinder,water-cooled, turbocharged,mechanical injection
Rated power	97KW
Rated speed	2200rpm
Main Technical Specification
Rated load	3000Kg
Operating weight	10000Kg
Rated bucket capacity	1.7m3
Max. breakout force	100KN
Max. dump clearance	3060mm
Dump reach	1008mm
Dump angle at any position	45o
Digging depth(with bucket bottom horizontal)	210mm
Min. turning radius(outside of bucket)	5500mm
Oscillating angle of rear axle	±11o
Lifting time of bucket	≤5.6s
Lowering time of bucket	≤3.1s
Dumping time	≤1.1s
Implement Hydraulic System
Model of oil pump	CBGj2100
System pressure	15.6MPa
Model of multi-way directional valve	DF25.2C
Priority valve	DJS2-UX
Axle And Tyre
Type of main reducer	Spiral bevel gear, single stage
Gear ratio of main reducer	5.285
Type of final reducer	Single stage planetary
Gear ratio of final reducer	3.88
Total ratio	20.5
Max. tractive force	97KN
Tyre size	17.5-25
Steering System
Type	Articulated fully hydraulic steering
Model of steering pump	CBY2050
Model of redirector	BZZ1-500
System pressure	9.8MPa
Articulated steering angle	38±1o(L/R)
Transmission System
Torque Converter
Model	YJH315-3
Type	3 elements, singel stage
Torque ratio	3
Cooling type	Pressure oil circulating
Gear box
Model	YJSW315-3
Type	Power shift
Gear shifts(Forward/Reverse)	F2/R1
Travelling speed(km/h)
Forward/Reverse I	10.8/14.5
ForwardII	32.5
Dimensions
Overall length(with bucket on ground)	6970mm
Overall width(to outside of wheels)	2250mm
Overall height(to the top of the cab)	3228mm
Bucket width	2330mm
Wheel base	2750mm
Tread	1850mm
Ground clearance	360mm
Service Capacities
Fuel tank	150L
Engine crank case	20L
Converter and gear box	32L
Hydraulic tank	140L
Braking System
Service brake	Air-pushing-oil disc brake on four wheel
Air pressure	0.65MPa
Parking brake	Cable-Controlled caliper disc brake

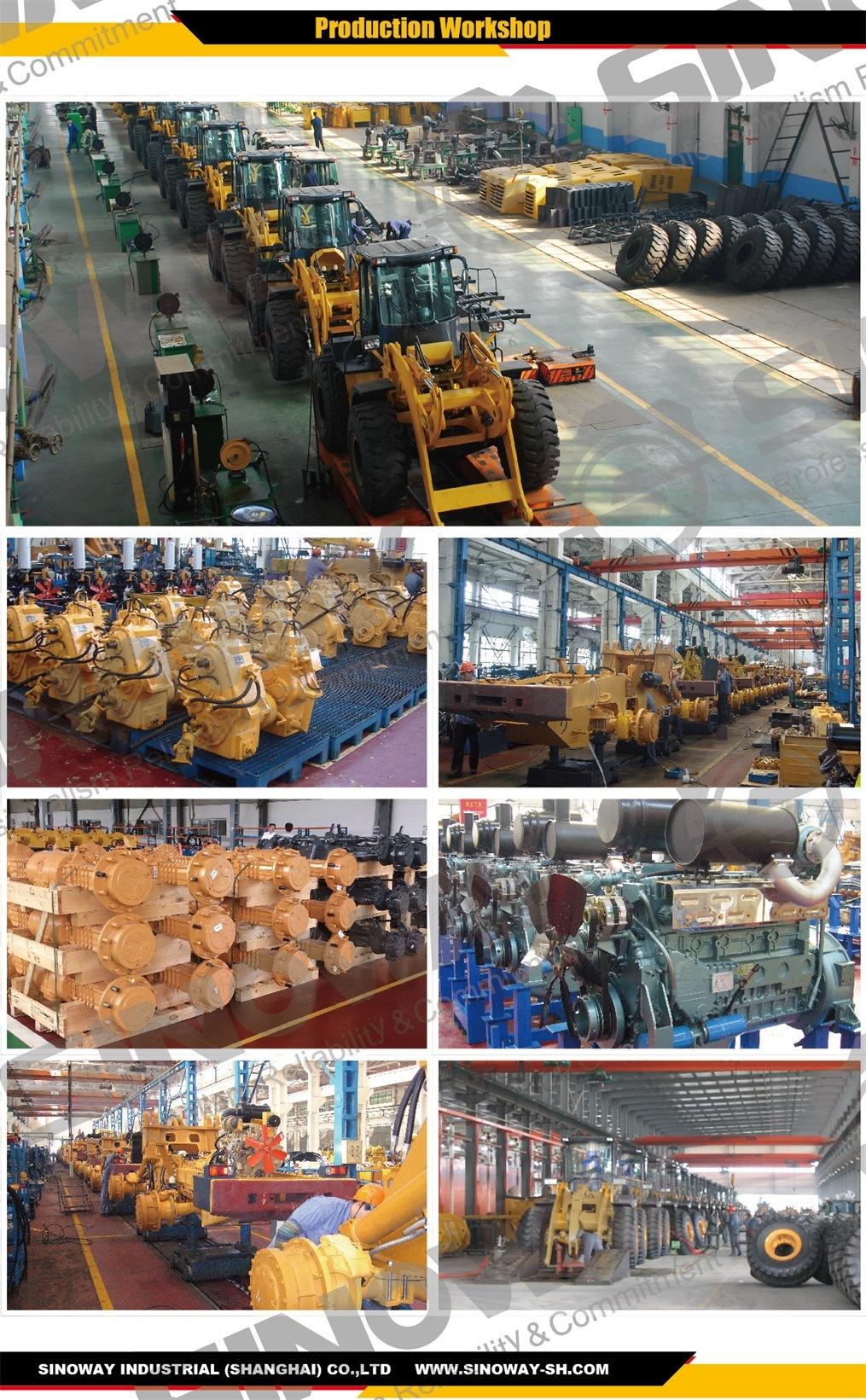

Production line
