• Model NO.：SWMD420S
• Condition：New
• Color：Yellow
• Blade Capacity：16m3
• Blade Type：Semi-U
• Track Width：610 mm
• Max. Lifting Height：1545 mm
• Warranty：One Year
• Appilitation：Mining
• Transport Package：Nude
• Specification：ISO9001
• Trademark：SINOWAY
• Origin：China
• HS Code：84314990
• Production Capacity：200 PCS , Year

Basic Info.

Model NO. SWMD420S Condition New Color Yellow Blade Capacity 16m3 Blade Type Semi-U Track Width 610 mm Max. Lifting Height 1545 mm Warranty One Year Appilitation Mining Transport Package Nude Specification ISO9001 Trademark SINOWAY Origin China HS Code 84314990 Production Capacity 200 PCS / Year

Product Description

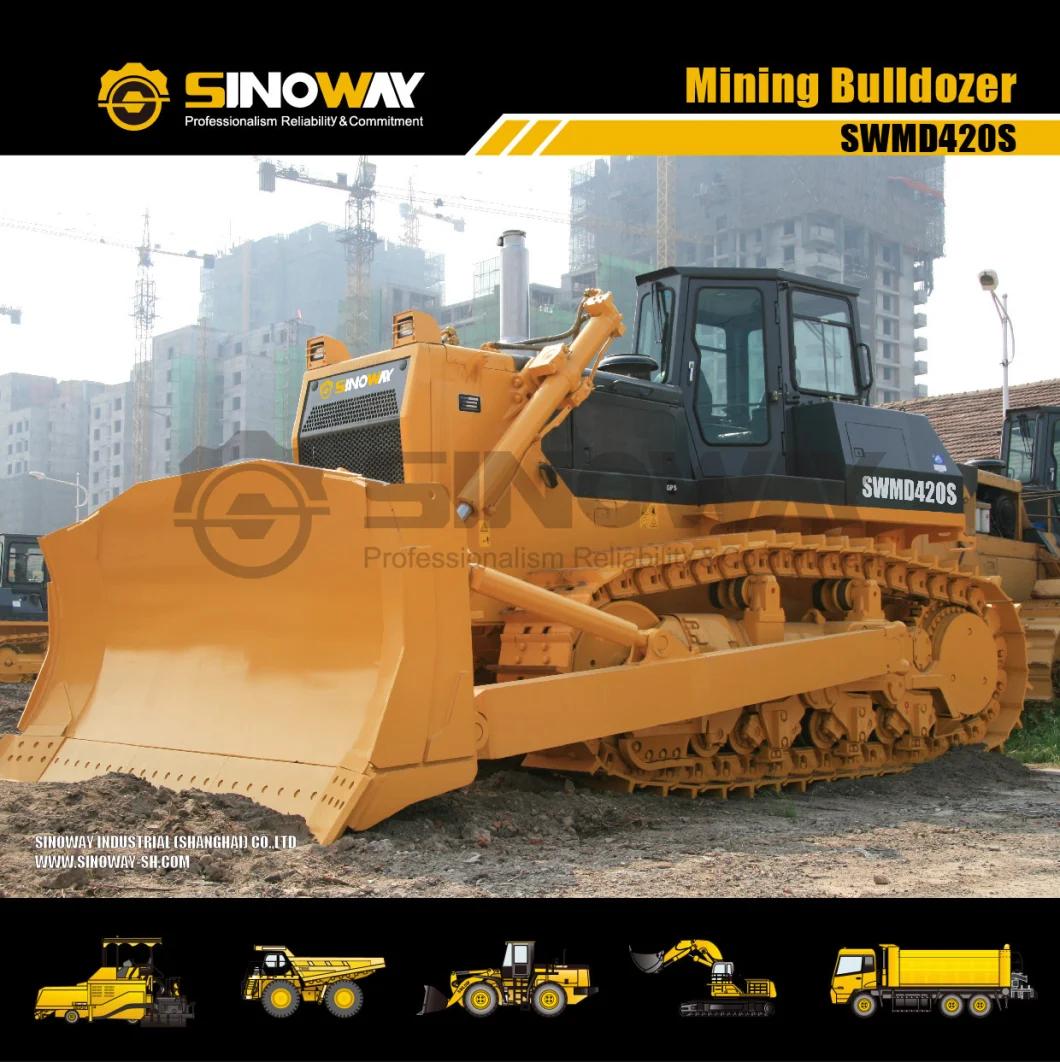

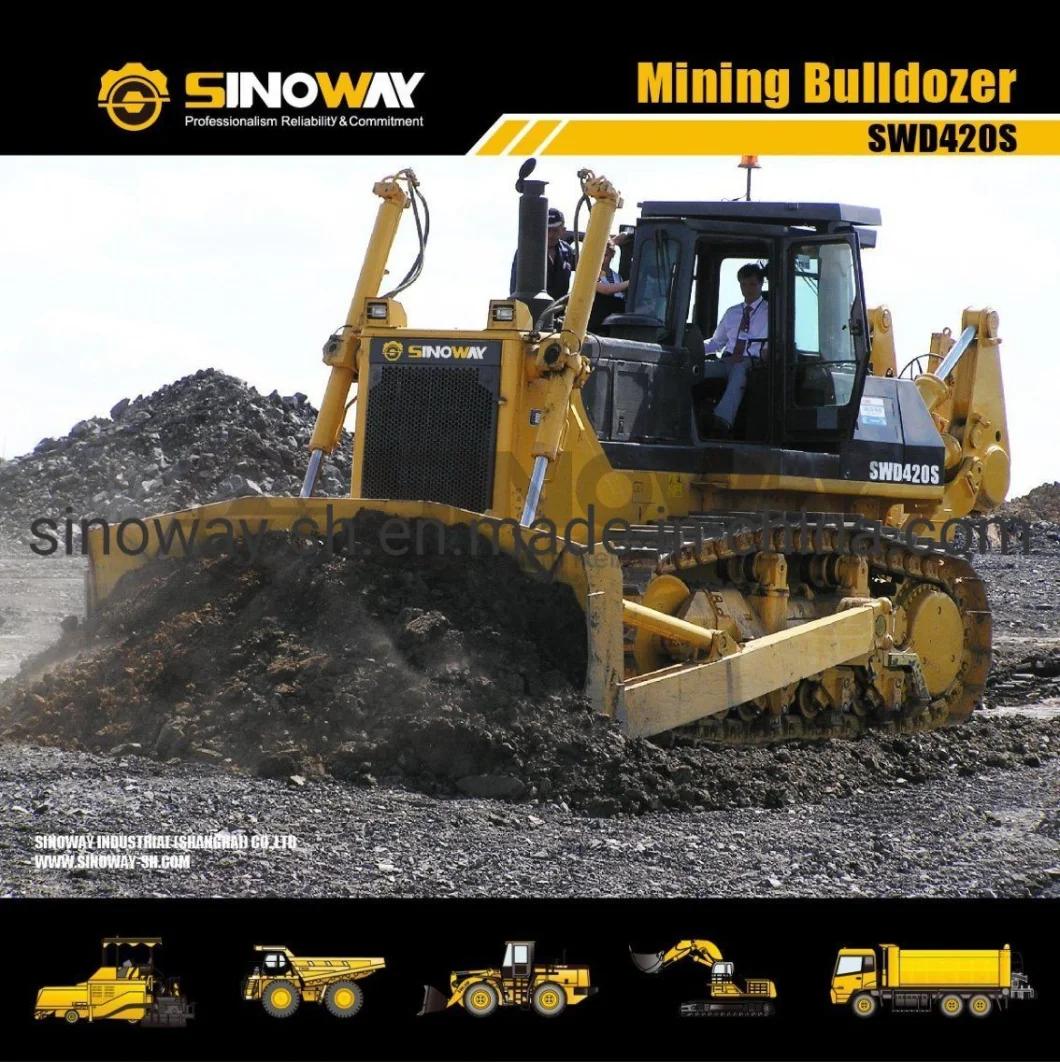

SINOWAY SWD420S Bulldozer Features

As a monster manchine,SWMD420S challenges the competition head-on with its international class roller suspension and muscular push/pull power. Mainly used in large mining projects,SWMD420S has the power to adapt to tough working conditions and its top features include ROPS cab with FOPS function, central pressure measurement, central lubrication and automatic track tensioning.

Powerful Cummins turbocharged diesel engine reduces the quantity of parts by >25% and saves the maintenance time by >50% than like products, featuring strong power and high efficiency and energy-saving.

The high reliability power shift transmission and the planetary gear final drive feature high power transmission efficiency and high durability and productivity.

The new structure cylinder and the originally imported seals and hydraulic hoses for critical portions are adopted to greatly promote the service life and reliability. The external working valves make the maintenances easier.

The international brand instruments feature higher reliability and more accurate and distinct indications and realize electronic monitoring and out-of-limit alarm for the operation conditions of major components and for the parameters such as oil temperature, oil level, and water temperature.

The K-type air suspension traveling system and hinged chassis structure can effectively guard the drive system against the influence of impact load and improve the traction performance and life of the machine.

The full box-type main frame with application of high performance materials and high strength castings features high carrying capacity against impact load and bending moment to support the continuous high-strength working of machine under severe working condition and the high quality welds guarantee the life cycle of the main frame.

Product Show

Specifications

Engine
Model	Cummins
Type	In-line, water-cooled, 4-cycle turbocharged, intercooled, direct injection
Rated power	310KW
Rated Speed	2000rpm
Under Carriage System
Type	K type elastic suspended structure
Number of track rollers (each side)	7
Number of carrier rollers (each side)	2
Track type	Link master, seal, lubricated type
Track pitch	260.35mm
Track width	610mm
Number of track shoes (each side)	41
Track length on ground	3560mm
Track gauge	2260mm
Ground clearance	525mm
Main Technical Specification
Operating weight(with ripper)	53000Kg
Ground pressure	0.123MPa
Grade ability	30°

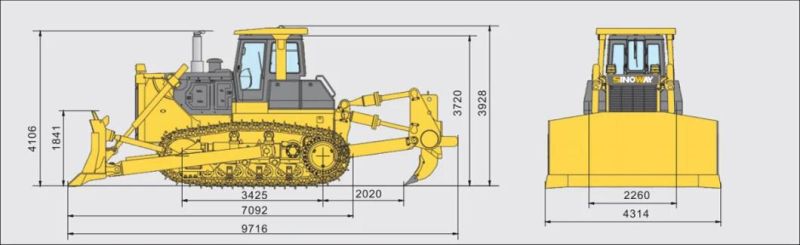

Overall dimensions (L×W×H)	9630×4315×3955mm
Working Equipment
Blade type	Semi-U blade
Width	4315mm
Height	1875mm
Max. digging depth	700mm
Max. lift above ground	1545mm
Blade capacity	16m³
Ripper type	Single-shank ripper
Ripping depth of ripper	1400 mm
Lifting height of ripper	1130 mm
Transmission System
Torque converter	3-element, 1 stage, 1 phase
Transmission	Forced connected, planetary gear hydraulic control
Main drive	Spiral bevel gear, splash lubrication
Final drive	1-stage spur gear, 1-stage planetary speed reduction, splash lubrication
Travel Speed
Gear shifts(Forward/Reverse)	F3/R3
Travelling speed
Forward I	0~3.7km/h
Forward II	0~6.8km/h
Forward III	0~12.2km/h
Reverse I	0~4.4km/h
Reverse II	0~8.2km/h
Reverse III	0~14.8km/h
Steering clutch	Wet, multi-disc, spring loaded, hydraulically separated, electric and hydraulic control
Steering brake	Wet, floating, hydraulic helping operation, hydraulic control
