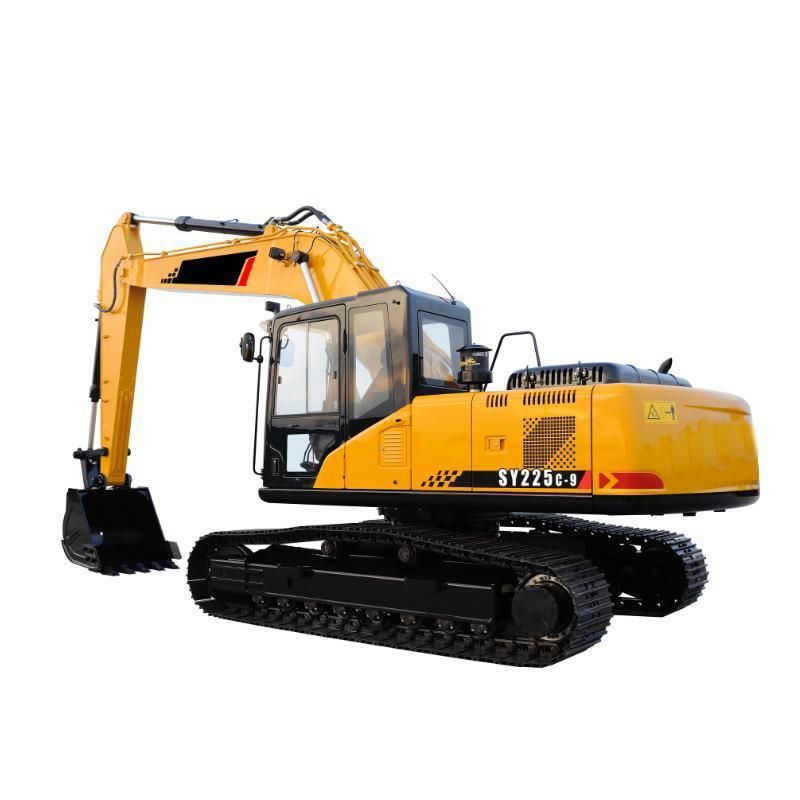

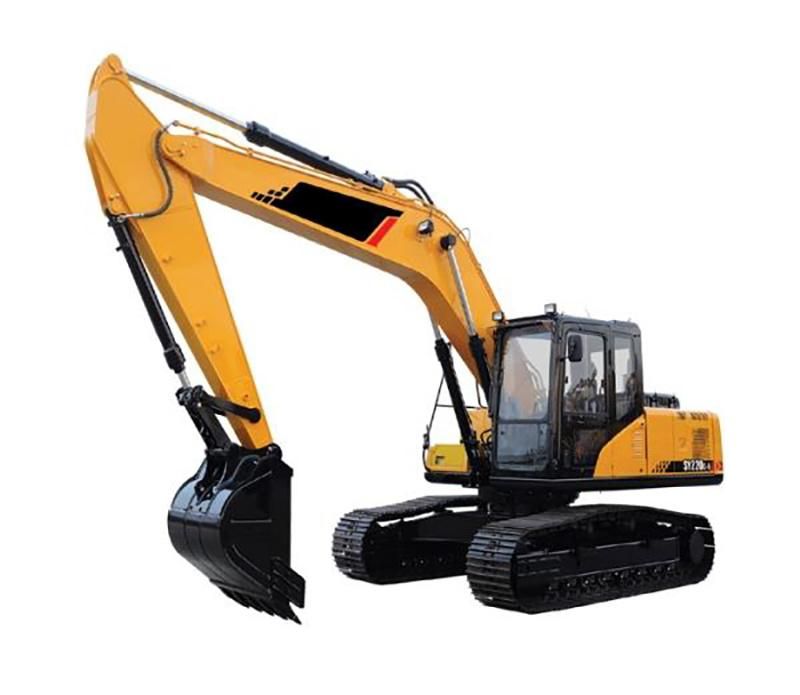

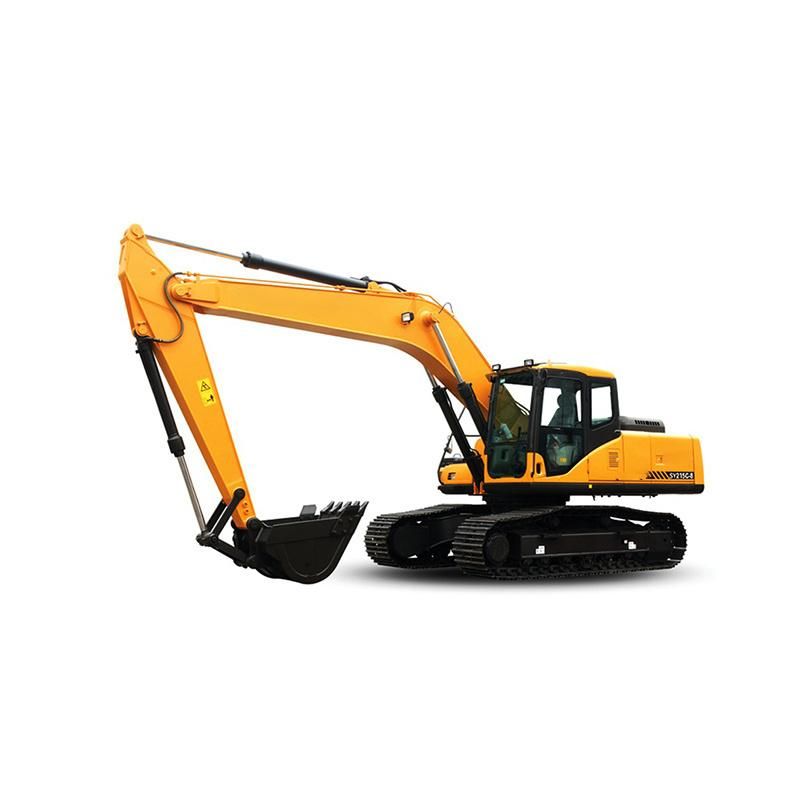

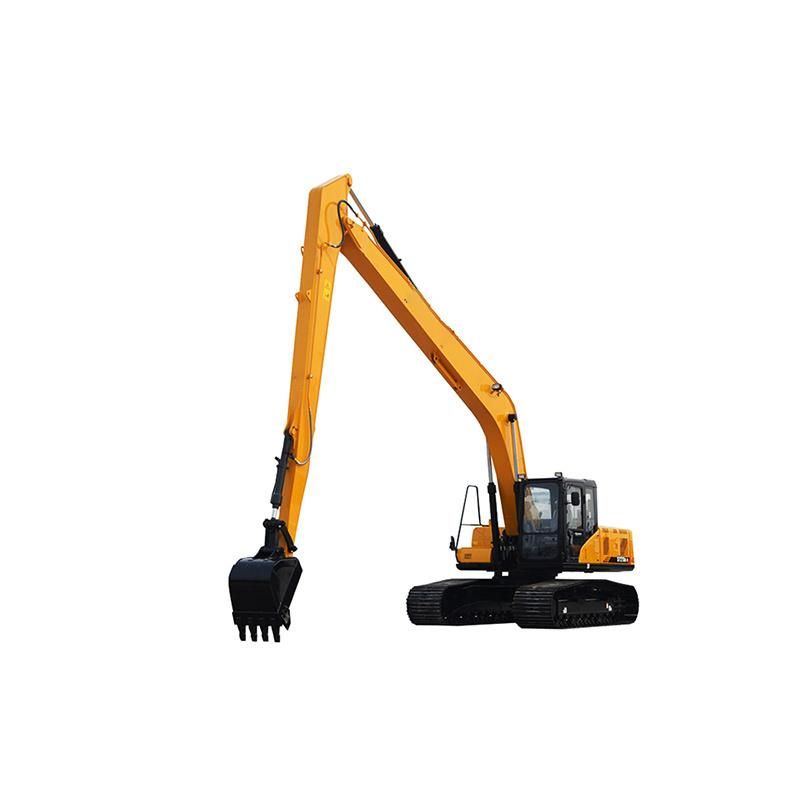

22ton Hydraulic Excavators Mini Excavator Sy215c Crawler Excavator
Evangel Industrial (Shanghai) Co., Ltd.- Warranty：1 Year
- Type：Crawler Excavator
- Usage：Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
- Bucket：Grab Shovel
- Transmission：Hydraulic Transmission
- Drive Type：Electric Drive
Base Info
- Model NO.：SY215C
- Bucket Capacity：>1.5m³
- Size：Small-Scale
- Certification：CE, ISO9001: 2000
- Condition：New
- Low Fuel Consumption：Strong Power, High Efficiency
- Sy215c：Sy215c
- Transport Package：Nude Package
- Specification：iso, ce
- Origin：Jiangsu, China (Mainland)
- HS Code：8701200000
- Production Capacity：1000 Units, Year
Description
Item
Main specification
Unit
SY215C
Operating weight
kg
20975
Standard bucket capacity
m³
0.93
Rated power
kw/rpm
114/2050
Length
mm
9395
Width
mm
2980
Height
mm
2955
Headpiece width
mm
2710
Mouldboard height
mm
2990
Standard mouldboard width
mm
600
Gauge
mm
2380
Minimum ground clearance
mm
440
Tail gyroradius
mm
2750
Tread
mm
3445
Track length
mm
4250
Maximum digging height
mm
9305
Discharge height
mm
6475
Max digging depth
mm
6630
Max vertical arm digging depth
mm
5980
Maximum digging distance
mm
9885
Least radius gyration
mm
3630
Least radius gyration height
mm
7570
Speed of travel(high/low)
km/h
5.5/3.2
Rotating speed
rpm
11
Gradeability
%/°
70/35
Ground clearance
kpa
45
Bucket digging ability
kN
138
Pole digging capacity
kN
100
