- Model NO.：910M
- Type：Medium-sized Loader
- Transport Package：Nude Package
- Specification：,
- Trademark：Caterpillar
- Origin：Japan
- Production Capacity：5000
Basic Info.
Model NO.
910M
Type
Medium-sized Loader
Transport Package
Nude Package
Specification
/
Trademark
Caterpillar
Origin
Japan
Production Capacity
5000
Product Description

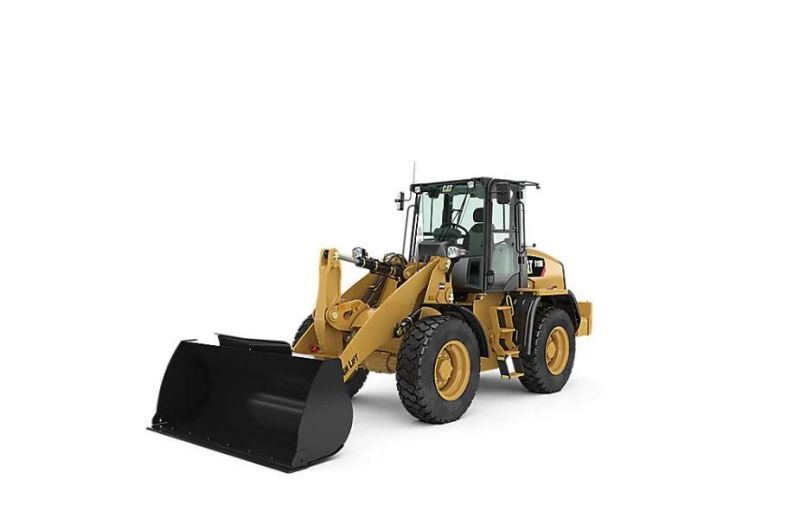

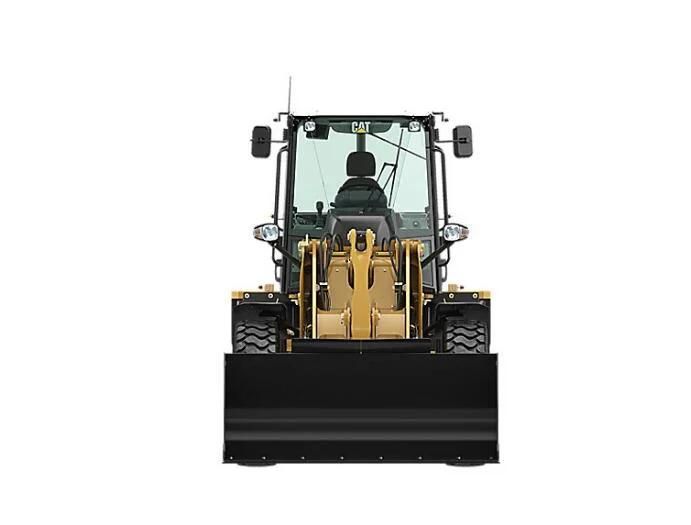

Popular Design 8 Ton Samll Loader Cat 910M
ENGINE
UNITS:| Maximum Gross Power | 74.0 kW |
| Net Power | 72.0 kW |
| Engine Model | Cat C4.4 ACERT� |
| Maximum Gross Power - ISO 14396 | 74.0 kW |
| Maximum Gross Power - ISO 14396 (DIN) | 74.0 kW |
| Maximum Gross Power - Maximum Engine Speed | 2350.0 r/min |
| Maximum Gross Power - SAE J1995 | 76.0 kW |
| Rated Net Power - Rated Engine Speed | 2200.0 r/min |
| Rated Net Power - SAE J1349 | 72.0 kW |
| Bore | 105.0 mm |
| Displacement | 4.4 l |
| Emissions | Engine meets U.S. EPA Tier 4 Final/EU Stage IV emission standards. |
| Maximum Gross Torque - ISO 14396 | 450.0 N·m |
| Maximum Gross Torque - SAE J1995 | 455.0 N·m |
| Maximum Net Torque - ISO 9249 | 446.0 N·m |
| Maximum Net Torque - SAE J1349 | 441.0 N·m |
| Note | Net power advertised is the power available at the flywheel plus front drive implement pump when the engine is equipped with fan, air cleaner, muffler and alternator. |
| Rated Net Power - ISO 9249 | 72.0 kW |
| Rated Net Power - ISO 9249 (DIN) | 72.0 kW |
| Stroke | 127.0 mm |
WEIGHTS
| Operating Weight | 8116.0 kg |
SERVICE REFILL CAPACITIES
| Cooling System | 21.5 l |
| Fuel Tank | 154.0 l |
| Engine Crankcase | 8.8 l |
| Hydraulic System - Including Tank | 98.0 l |
| Axles - Front Center Differential | 7.5 l |
| Axles - Rear Center Differential | 7.5 l |
| Diesel Exhaust Fluid (DEF) Tank | 18.9 l |
| Hydraulic Tank | 55.0 l |
| Note | DEF used in Cat SCR systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1. |
| Transmission | 3.4 l |
OPERATING SPECIFICATIONS
| Rated Bucket Capacity | 1.9 m³ |
BUCKETS
| Bucket Capacities | 1.3 m3-1.9 m3 (1.7 yd3-2.5 yd3) |
CAB
| ROPS | ISO 3471:2008 |
| FOPS | ISO 3449:2005 Level II |
| Note (1) | Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe. |
| Note (2) | The declared dynamic operator sound pressure levels per ISO 6396:2008*, when properly installed and maintained, is 77 dB(A). |
| Note (3) | The labelled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC is 103 dB(A). |
| Note (4) | *The measurements were conducted with the cab doors and windows closed. |
AXLES
| Front | Fixed; Locking differential (standard) |
| Rear | Oscillating �11 degrees; Locking differential (Standard) |
LOADER HYDRAULIC SYSTEM
| Hydraulic Cycle Time - Dump, at Maximum Reach | 1.4 s |
| Hydraulic Cycle Time - Float Down, Maximum Lift to Ground Level | 3.7 s |
| Hydraulic Cycle Time - Rackback | 2.2 s |
| Hydraulic Cycle Time - Raise, Ground Level to Maximum Lift | 5.2 s |
| Hydraulic Cycle Time - Total Cycle Time | 12.5 s |
| Maximum Flow - Implement Pump | 122.0 l/min |
| Maximum Flow - Implement Pump - 3rd Function, Maximum Flow | 90.0 l/min |
| Maximum Flow - Implement Pump - 4th Function, Maximum Flow | 90.0 l/min |
| Maximum Working Pressure - Implement Pump | 23500.0 kPa |
| Relief Pressure - Tilt Cylinder | 34000.0 kPa |
| Relief Pressure - Tilt Cylinder - 3rd Function Maximum Working Pressure | 21000.0 kPa |
| Relief Pressure - Tilt Cylinder - 4th Function Maximum Working Pressure | 21000.0 kPa |
STEERING
| Maximum Flow - Steering Pump | 66.0 l/min |
| Maximum Working Pressure - Steering Pump | 18500.0 kPa |
| Number of Steering Wheel Turns - Full Left to Full Right or Full Right to Full Left | 3.75 turns |
| Steering Articulation Angle - Each Direction | 40.0 ° |
| Steering Cycle Times - Full Left to Full Right - At 2,350 rpm: 90 rpm Steering Wheel Speed | 3.2 s |
TIRES
| Note (1) | Other tire choices are available. Contact your Cat dealer for details. |
| Note (2) | In certain applications, the loader's productive capabilities may exceed the tire's tonnes-km/h (ton-mph) capabilities. |
| Note (3) | Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model. |
| Other Choices Include | 15.5-R25; 17.5-25 12PR; 17.5-25 12PR L2; 17.5-R25 XHA * L3; 17.5-R25 * L2/L3 PC RM; 17.5-25 16PR L3, 3PC Rim; 17.5-25 GY L2/L3; 17.5-25 12PR L2, SNOW; Flexport� |
| Standard Size | 15.5-25 12PR |
TRANSMISSION
| Forward and Reverse - High Range | 40.0 km/h |
| Forward and Reverse - Low Range, Speed Range 1* | 10.0 km/h |
| Forward and Reverse - Low Range, Speed Range 2* | 20.0 km/h |
| Note | *Creeper Control allows speed control from a stand still up to 10 km/h (6.3 mph). The Creeper Control will only work in Range 1. |
