- Model NO.：980L
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
- Type：Large Loader
- Bucket Capacity：4.2-12.2 Cbm
- Operating Weight：30090 Kg
- Engine：Cat C13 Acert
- Net Power - ISO 9249：303 Kw
- Maximum Gross Power：278 Kw
- Breakout Force：224 Kn
- Brakes：Full Hydraulic Enclosed Wet-Disc with Integrated
- Color：Yellow
- Ground Clearance：453 mm
- Wheel Base：3800 mm
- Transport Package：Roro Shipping
- Specification：ISO, CE
- Trademark：CATERPILAR
- Origin：Shanghai, China
- HS Code：84295100
- Production Capacity：1000sets,Month
Basic Info.
Model NO.
980L
Load and Unload Mode
Front Discharge
Walking Mode
Wheeled
Type
Large Loader
Bucket Capacity
4.2-12.2 Cbm
Operating Weight
30090 Kg
Engine
Cat C13 Acert
Net Power - ISO 9249
303 Kw
Maximum Gross Power
278 Kw
Breakout Force
224 Kn
Brakes
Full Hydraulic Enclosed Wet-Disc with Integrated
Color
Yellow
Ground Clearance
453 mm
Wheel Base
3800 mm
Transport Package
Roro Shipping
Specification
ISO, CE
Trademark
CATERPILAR
Origin
Shanghai, China
HS Code
84295100
Production Capacity
1000sets/Month
Product Description

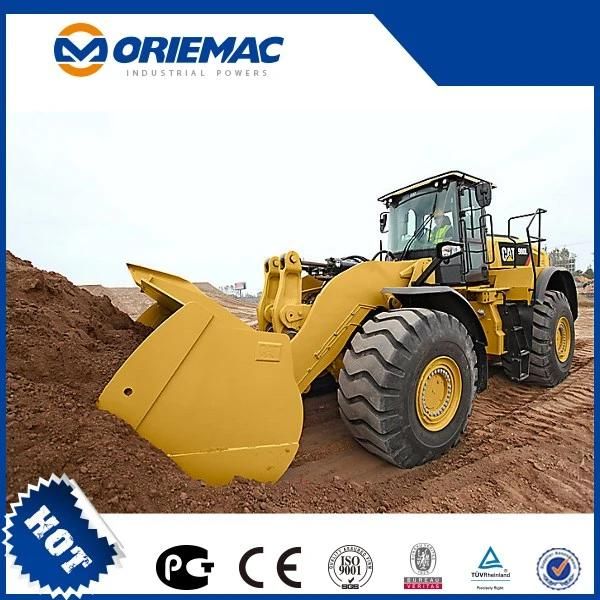

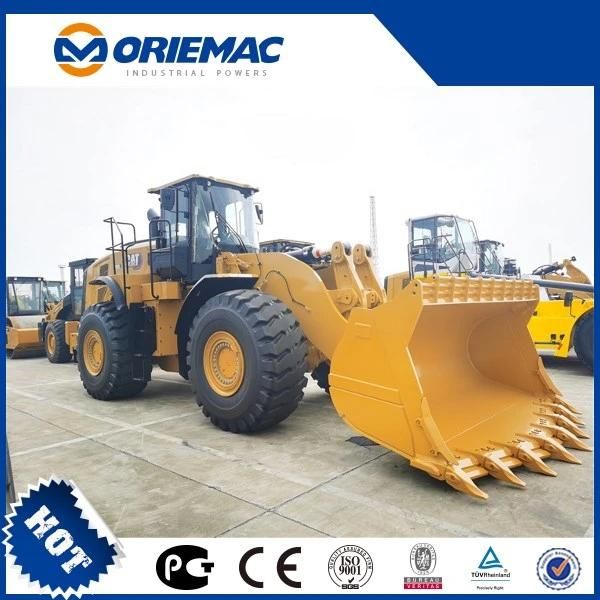

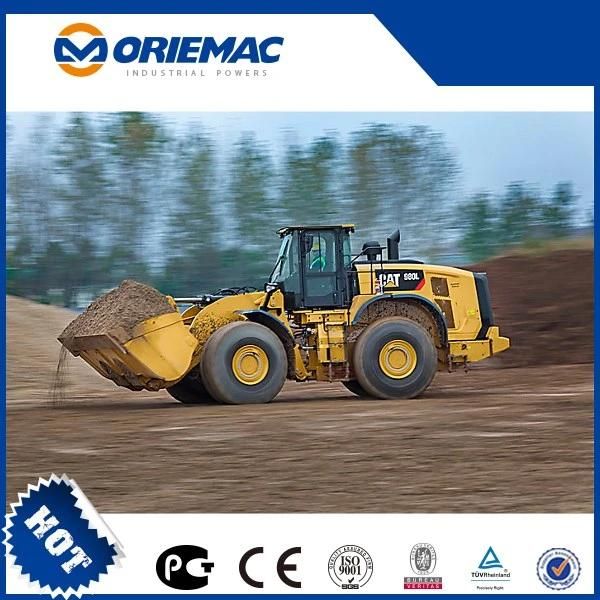

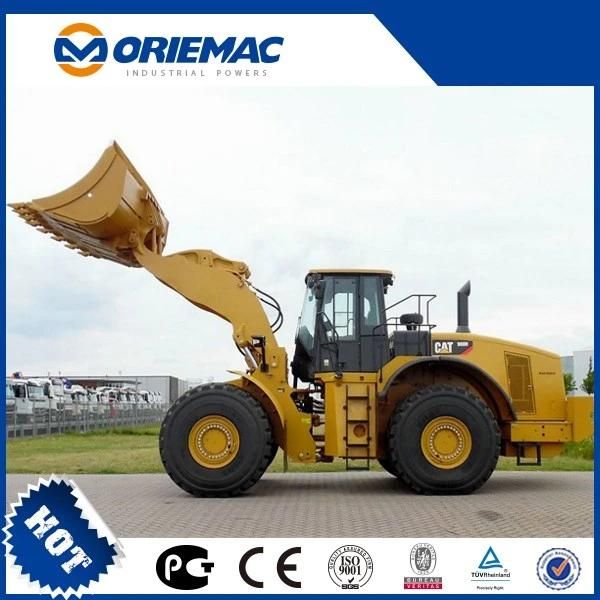

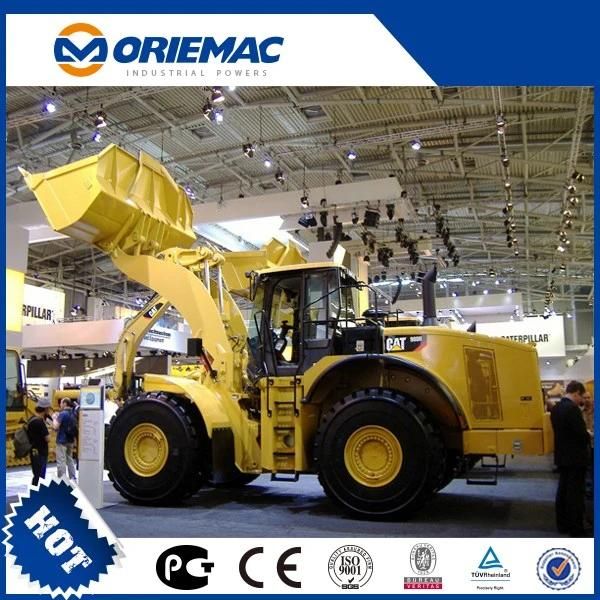

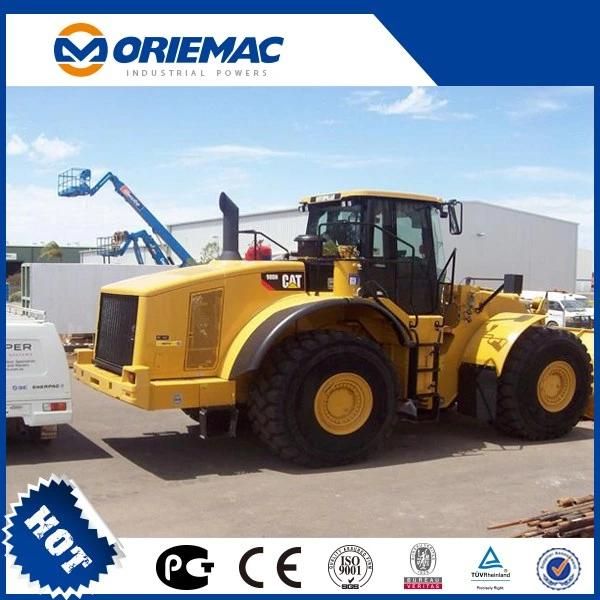

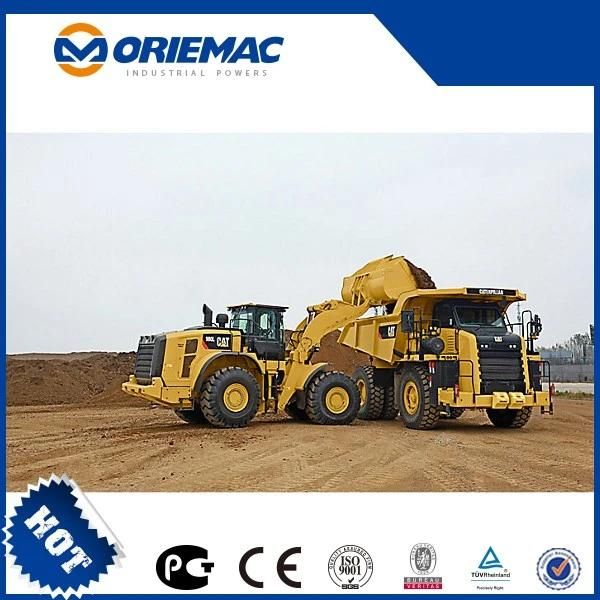

Caterpilar Earthmoving Construction Equipment Cat 980L 8 Tons Front End Wheel Loader OVERVIEW
The 980L Wheel Loader is equipped with built-in proven technologies to meet your expectations for reliability, productivity, fuel efficiency, and a long service life. This machine provides you increased power, incorporates a new shifting strategy and a lockup clutch torque converter that delivers smoother shifts, faster acceleration and increased travel speed when climbing a grade. This machine delivers the reliability, durability, and versatility you've come to expect from a Cat machine.
OPTIONAL CONFIGURATIONS
- Aggregate Handler
- Industrial and Waste Handler
- Steel Mill
- Block Handler
- Forestry
- Port and Harbor
ENGINE
| Net Power - ISO 9249 | 278.0 kW |
| Engine Model | Cat C13 ACERT |
| Displacement | 12.5 l |
| Maximum Power - 1,800 rpm - ISO 14396 - Metric | 303.0 kW |
| Maximum Net Power - 1,800 rpm - ISO 9249 - Metric | 278.0 kW |
| Maximum Net Torque - 1,000 rpm | 2040.0 N·m |
| Peak Gross Torque - 1,300 rpm - ISO 14396 | 2172.0 N·m |
SERVICE REFILL CAPACITIES
| Cooling System | 45.0 l |
| Crankcase | 37.0 l |
| Transmission | 77.0 l |
| Hydraulic Tank | 153.0 l |
| Differential - Final Drives - Front | 84.0 l |
| Differential - Final Drives - Rear | 84.0 l |
| Fuel Tank | 426.0 l |
WEIGHTS
| Operating Weight | 30090.0 kg |
| Note | Weight based on a machine configuration with Michelin 29.5R25 XLDD1 L4 radial tires, full fluids, operator, standard counterweight, cold start, roading fenders, Product Link?, open differential axles (front/rear), secondary steering, sound suppression, and a 5.4 m? general purpose bucket with BOCE. |
BUCKETS
| Bucket Capacities | 4.2-12.2 m? (5.5-16.0 yd3) |
TRANSMISSION
| Forward - 1 | 6.9 km/h |
| Forward - 2 | 13.3 km/h |
| Forward - 3 | 23.5 km/h |
| Forward - 4 | 39.5 km/h |
| Reverse - 1 | 7.8 km/h |
| Reverse - 2 | 15.2 km/h |
| Reverse - 3 | 26.9 km/h |
| Reverse - 4 | 39.5 km/h |
| Note | Maximum travel speed in standard vehicle with empty bucket and standard L4 tires with 933 mm roll radius. |
OPERATING SPECIFICATIONS
| Breakout Force | 224.0 kN |
| Static Tipping Load - Full 37° Turn - No Tire Deflection | 20796.0 kg |
| Static Tipping Load - Full 37° Turn - With Tire Deflection | 19565.0 kg |
| Note (1) | For a machine configuration as defined under ?Weight.? |
| Note (2) | Full compliance to ISO 143971:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing. |
HYDRAULIC SYSTEM
| Implement Pump Type | Variable Displacement Piston |
| Implement System - Maximum Operating Pressure | 34300.0 kPa |
| Implement System - Maximum Pump Output at 2,250 rpm | 449.0 l/min |
| Hydraulic Cycle Time - Total | 10.1 s |
BUCKET CAPACITIES
| Bucket Range | 4.2-12.2 m³ (5.5-16.0 yd³) |
DIMENSIONS - HIGH LIFT
| Centerline of Rear Axle to Edge of Counterweight | 2608.0 mm |
| Centerline of Rear Axle to Hitch | 1900.0 mm |
| Ground Clearance | 453.0 mm |
| Height - Top of Exhaust Pipe | 3746.0 mm |
| Height - Top of Hood | 3110.0 mm |
| Height - Top of ROPS | 3813.0 mm |
| Hinge Pin Height at Carry | 678.0 mm |
| Hinge Pin Height at Maximum Lift | 4760.0 mm |
| Lift Arm Clearance at Maximum Lift | 4010.0 mm |
| Maximum Width over Tires | 3296.0 mm |
| Note | All dimensions are approximate and based on Michelin 29.5R25 XLDD1 L4 radial tires. |
| Overall Length - Without Bucket | 8302.0 mm |
| Rack Back - Carry Height | 48 degrees |
| Rack Back - Maximum Lift | 61 degrees |
| Rack Back at Ground | 39 degrees |
| Tread Width | 2440.0 mm |
| Wheel Base | 3800.0 mm |
DIMENSIONS - STANDARD LIFT
| Centerline of Rear Axle to Edge of Counterweight | 2608.0 mm |
| Centerline of Rear Axle to Hitch | 1900.0 mm |
| Ground Clearance | 453.0 mm |
| Height - Top of Exhaust Pipe | 3746.0 mm |
| Height - Top of Hood | 3110.0 mm |
| Height - Top of ROPS | 3813.0 mm |
| Hinge Pin Height at Carry | 621.0 mm |
| Hinge Pin Height at Maximum Lift | 4539.0 mm |
| Lift Arm Clearance at Maximum Lift | 3795.0 mm |
| Maximum Width over Tires | 3296.0 mm |
| Note | All dimensions are approximate and based on Michelin 29.5R25 XLDD1 L4 radial tires. |
| Overall Length - Without Bucket | 8214.0 mm |
| Rack Back - Carry Height | 48 degrees |
| Rack Back - Maximum Lift | 61 degrees |
| Rack Back at Ground | 40 degrees |
| Tread Width | 2440.0 mm |
| Wheel Base | 3800.0 mm |
