• Model NO.：JM802H
• Travel Speed：8km,H
• Centrifugal Force：21kn
• Certification：CE, ISO 9001:2000
• Condition：New
• Operating Weight：2000kg
• Rolling Width：1000mm
• Vibration Frequency：65Hz
• Engine Power/Speed：18.4,2600kw , R,Min
• Transport Package：Container
• Specification：2600*1320*2580
• Trademark：SINOHENG
• Origin：China
• HS Code：84294019
• Production Capacity：500 Sets,Month

Basic Info.

Model NO. JM802H Travel Speed 8km/H Centrifugal Force 21kn Certification CE, ISO 9001:2000 Condition New Operating Weight 2000kg Rolling Width 1000mm Vibration Frequency 65Hz Engine Power/Speed 18.4/2600kw / R/Min Transport Package Container Specification 2600*1320*2580 Trademark SINOHENG Origin China HS Code 84294019 Production Capacity 500 Sets/Month

Product Description

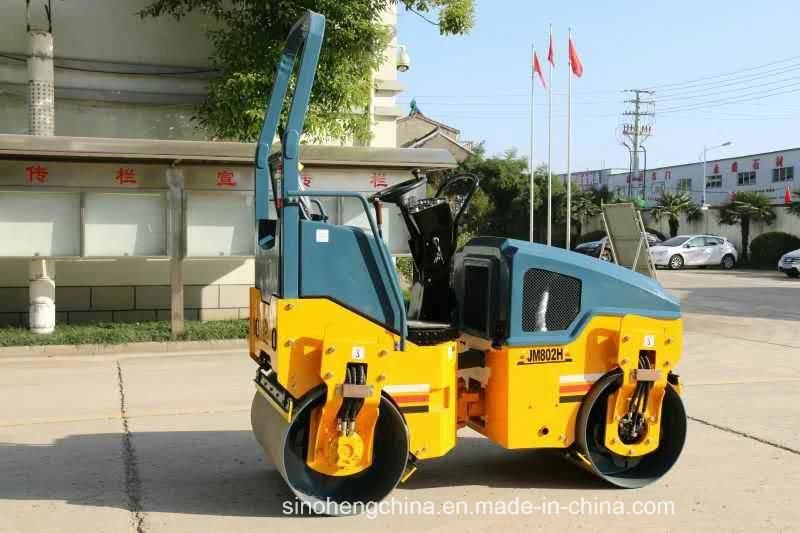

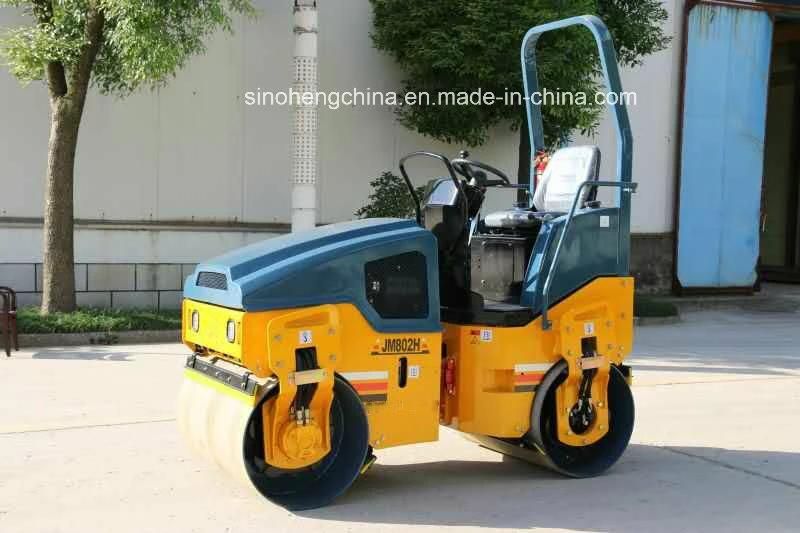

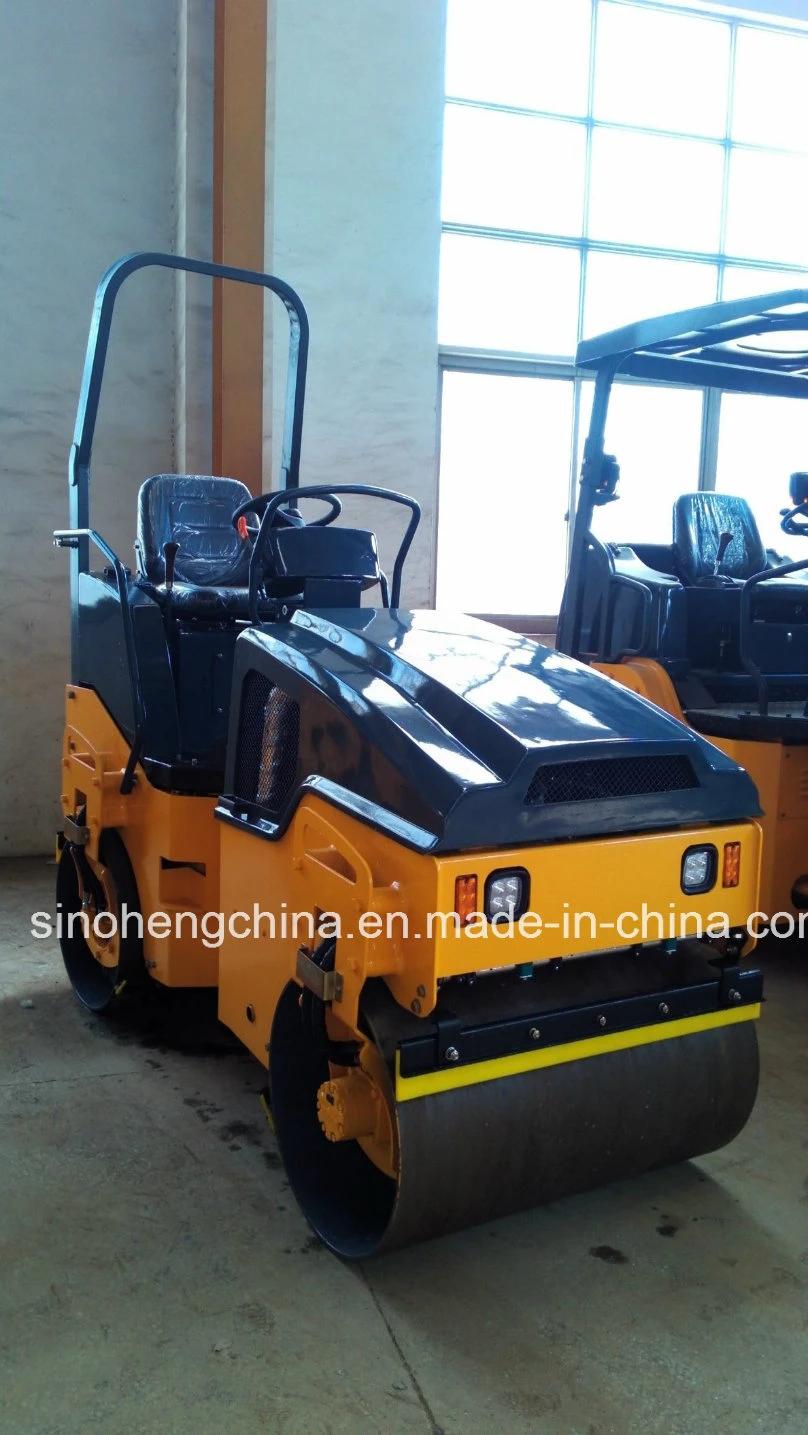

Mini Road Roller 2 Ton Full Hydraulic Double Drum Vibratory Compactor 20000KG Double Drum Vibratory Roller Compactor Applications
Compacting and repairing the general road base and asphalt pavement in narrow space, such as sidewalks, rural county road, parking area, stadium, trench, courtyard and so on. The highway road base and asphalt pavement are also suitable.
Main Features
1.Hydraulic double drum, two-speed range and stepless speed change .
2.Hydraulic double drum vibration, electronic controlled delayed starting of vibration with good compaction performance.
3.Hydraulic steering, articulated frame with flexible operation.
4.Equipped with electronic control pressurized water spraying system, high volume anti-corrosive water tank.
5.Hydraulic service brake, electronic self-locking parking brake, safe and reliable.
6.The front cover can be turned up in a big angel for easily maintenance.
7.Equipped with imported famous brand hydraulic components with reliable performance.
8.A trailer is provided for convenient transportation.
9.Imported Perkins engine is optional for you.

Technical parameters

item	unit	JM802H
Operating Weight	kg	2000
Rolling width	mm	1000
Vibration frequency	Hz	65
Theoretical amplitude of vibration	mm	0.45
Exciting force	kN	21
Travel speed	km/h	0~4/0~8
Engine model		3M78
Engine power/speed	kW / r/min	18.4/2600
Overall dimensions  (L*W*H):	mm	2600×1320×2580
