850kg 55kw 0.5m3 Skid Steer Loader with Ce Jc65
Jinan Sinoheng Import and Export Co., Ltd.- Certification:ISO, CE
- Condition:New
- Rated Load:<1t
- Transmission:Hydraulic
- Load and Unload Mode:Front Discharge
- Walking Mode:Wheeled
Base Info
- Model NO.:JC65
- Type:Skid Steer Loader
- Engine Model:498t
- Operating Load(Kg):950
- Bucket Capacity(M3):0.5
- Lifting Force(Kg):2000
- Tire:12-16.5
- Weight(Kg):3000
- Load and Unload Method:Front Discharge
- Transport Package:Nude,Container
- Specification:CE
- Trademark:SINOHENG
- Origin:China
- Production Capacity:500 Units Per Month
Description
Basic Info.
Model NO. JC65 Type Skid Steer Loader Engine Model 498t Operating Load(Kg) 950 Bucket Capacity(M3) 0.5 Lifting Force(Kg) 2000 Tire 12-16.5 Weight(Kg) 3000 Load and Unload Method Front Discharge Transport Package Nude/Container Specification CE Trademark SINOHENG Origin China Production Capacity 500 Units Per MonthProduct Description

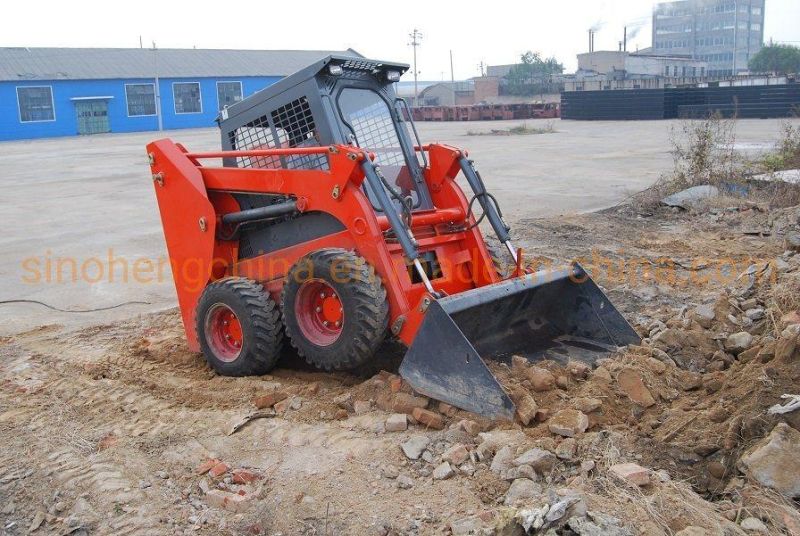

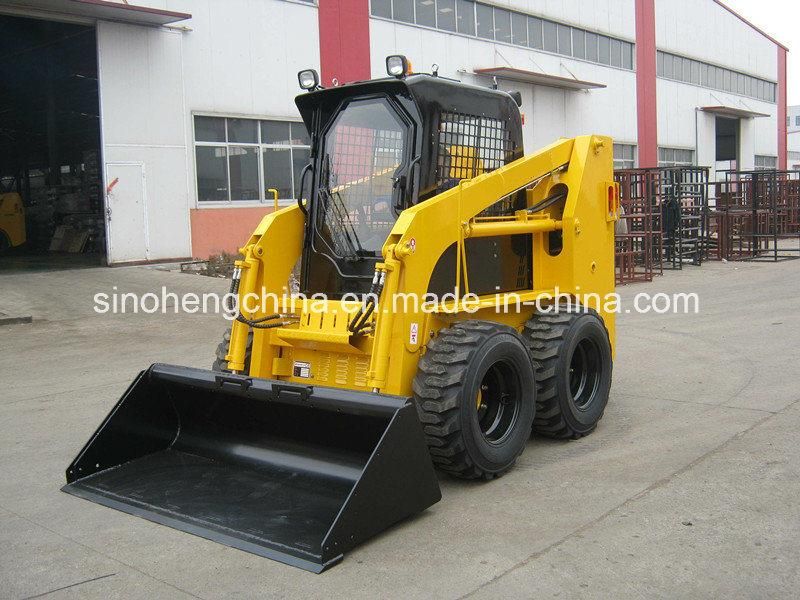

CE 850KG/55kw/0.5m3 Skid Steer LoaderMain features of JC65 Skid Steer Loader
1. Compact structure, maneuverable movement suitable for narrow space operation
2. Close cabin with joystick control system
3. Extended wheelbase
4. Double accelerograph control
5. Auto-leveling system
6. Multi-function with a wide range of attachments
7. Hydraulic brake
8 Integral structure made the machine more compact and durable.
9. An ideal arrange of component parts, fully opened cab and rear cover, easy access for maintenance.
10. Small sizes of width and height, active moving, working in narrow space.
11. Accelerator controlled by hand and foot. Heater or arm/bucket safety controlling for option, More safe and comfort for operator.
12. Adopt electrophoretic coating process, Anti-rust.
Ideal, versatile and powerful, our machines can be well used in worksite of construction, landscaping, nurseries, masonry, concrete, agriculture and many other applications.
4-in-1 bucket, auger, trencher, snow blower, snow blade, backhoe and more attachments for options
Self-leveling action by simple mechanical device keeps buckets, pallet forks and other attachments level during lifting actions.
All hydraulic aggregates are made by REXROTH, SAUER or B&P and so on, a high reliability and durability is ensured.
JC skid steer Loaders with their technical advantages ranks among the best in the world competition
JC series skid steer loader can be equipped different engines, including China made engine (Euro II / Euro III), original Britain Perkins engine, China made Isuzu engine. It can also provide different options for tires and do other modifications due to customer's requirements.850KG Mini Digger Skid Steer Loader Technical Specification :
Specifications | |
---|---|
Rated Operating Capacity | 850 |
Tipping load(Kg) | 1700 |
Bucket Capacity(m 3 ) | 0.4-0.5 |
Lifting Force(Kg) | 2000 |
Hydraulic Pump Flow(L/min) | 75 |
Engine power(HP) | 65 |
Weight(Kg) | 3000 |
Max.Travel Speed (km/h) | 12 |
Grade ability(°) | 20 |
Tire | 12-16.5 |
Fuel/hyd.oil capacity(L) | 80/80 |
Dimensions | |
A.Height at Maximum Extension | 3690 |
B.Hinge Pin Height | 2920 |
C.Total Height | 2050 |
D.Length with Bucket | 3440 |
E.Length without Bucket | 2780 |
F.Width with Bucket | 1820 |
G.Track Width | 1500 |
H.Wheelbase | 1085 |
J.Ground Clearance | 200 |
K.Dumping Angle | 40 |
L.Dumping Height | 2330 |
M.Maximum Reach | 710 |
