• Model NO.：915
• Rated Power：45HP
• Rated Speed：2400 R,Min (Rpm)
• Bucket Width：1500mm
• Max. Breakout Force：20kn
• Operating Weight：2570kg
• Overall Dimensions：4880mm*1600mm*2700mm
• Dumping Height：2700mm
• Min Turning Radius：4200mm
• Engine Power：<74kw
• Transport Package：Container
• Specification：CE, ISO9001: 2000
• Trademark：SINOHENG
• Origin：China
• Production Capacity：500PCS,Month

Basic Info.

Model NO. 915 Rated Power 45HP Rated Speed 2400 R/Min (Rpm) Bucket Width 1500mm Max. Breakout Force 20kn Operating Weight 2570kg Overall Dimensions 4880mm*1600mm*2700mm Dumping Height 2700mm Min Turning Radius 4200mm Engine Power <74kw Transport Package Container Specification CE, ISO9001: 2000 Trademark SINOHENG Origin China Production Capacity 500PCS/Month

Product Description

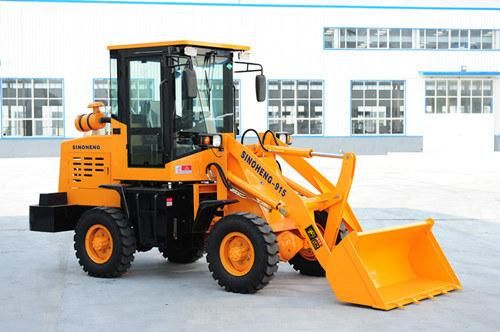

1.5 ton 0.5m3 Mini Loader, Hydraulic Loader, Mini Hydraulic Loader

Rated load	1500KG
Bucket Capacity	0.8CBM
Dump Height	2800mm
Dump distance	900mm
Wheel Base	2300mm
Wheel Tread	1500mm
Ground clearance	250mm
Machine weight	3500kg
LxWxH	5200*1850*2680mm
Model	YUNNEI 490 37KW
Type	In-line arrangement, water cooling, four strokes
Rated Power	37KW
Rated Speed	2200RPM
Torque converter model	YJ265
Type	Single phase, single stage, Radial in-ward turbine triplex
Gear box tyoe	Fixed- Spindle power shift
Electric Gear shift	2 gears ahead, 2 gears back
Type	Articulated hydraulic steering
Max. turning angle	35 degree
Service braking	Oil brake
Parking braking	Drum BRAKE  ISUZU
Standard tire	20.5/-16

1.0 Engine details:
(1) Model: 485(XI CHAI)
(2) Engine type: In-line arrangement, water-cooled, four-cycle diesel Engine
(3) Rated Power: 45HP
(4) Rated Speed: 2400 r/min (rpm)
2.0 Transmission System
(1) Type: Fixed-spindle Power shift
3.0 Bucket
(1) Bucket Capacity: 0.8m3
(2) Bucket width: 1500mm
(3) Max. Breakout Force: 20KN
(4) Rated Load: 1500kg
(5) Operating Weight: 2570kg
4.0 Overall Dimensions:
(1) Overall Length (Bucket on ground position): 4880mm
(2) Overall Height
(a) Ground to Cabin Top: 2700mm
(b) Ground to exhaust pipe: It is below from the top of cab
(c) Dumping Height: 2700mm
(3) Overall Width: 1600mm
5.0 Operating Specifications
(1) Steering System: Articulated Frame with hydraulic power steering
(2) Min Turning Radius: 4200mm
(3) Driving System: Hydraulic converter
6.0 Brake System
(1) Service Brake: Hydraulic disc brake on four wheels
(2) Parking Brake: Hand operated
7.0 Tyre
(1) Model: 825-16 (2) Width: 20cm (3) Diameter: 80cm
8.0 Wheelbase: 2080mm
9.0 Track: 1320mm

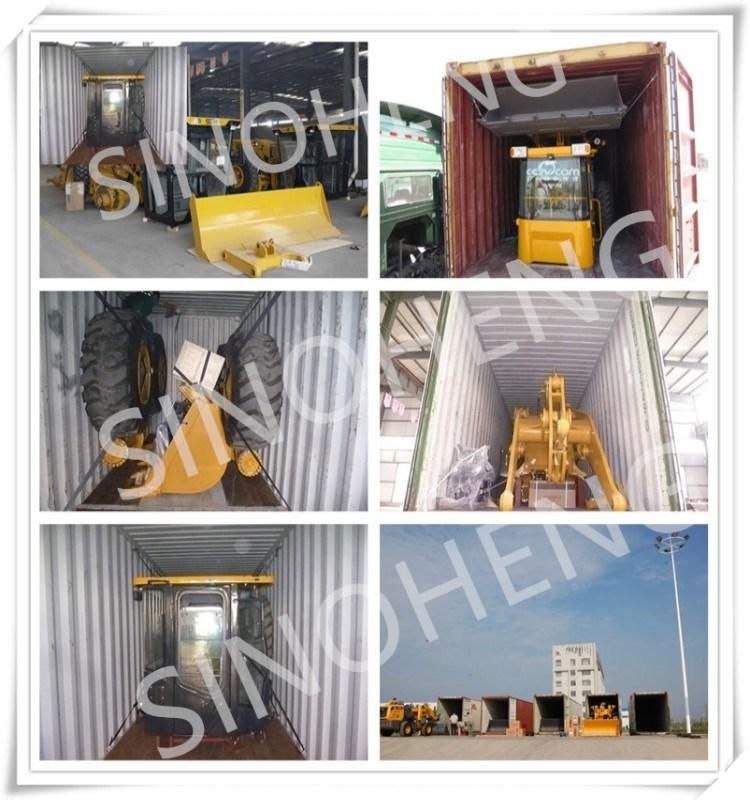

Shipment: 2units shipped in 1X40HC
