• Model NO.：818
• Bucket Capacity：0.5m3
• Rated Power：51HP
• Rated Speed：2400 R,Min (Rpm)
• Bucket Width：1800mm
• Max. Breakout Force：25kn
• Operating Weight：2650kg
• Overall Dimensions：4800mm*1720mm*2770mm
• Dumping Height：3200mm
• Min Turning Radius：4500mm
• Transport Package：Container
• Specification：CE, ISO9001: 2000, CCC
• Trademark：SINOHENG
• Origin：China
• Production Capacity：500 Units Per Month

Basic Info.

Model NO. 818 Bucket Capacity 0.5m3 Rated Power 51HP Rated Speed 2400 R/Min (Rpm) Bucket Width 1800mm Max. Breakout Force 25kn Operating Weight 2650kg Overall Dimensions 4800mm*1720mm*2770mm Dumping Height 3200mm Min Turning Radius 4500mm Transport Package Container Specification CE, ISO9001: 2000, CCC Trademark SINOHENG Origin China Production Capacity 500 Units Per Month

Product Description

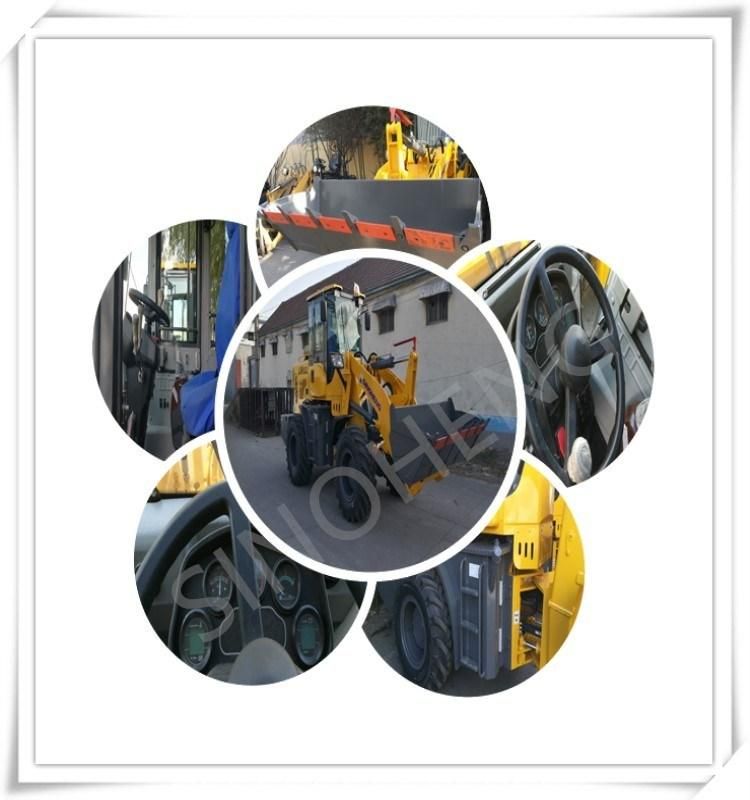

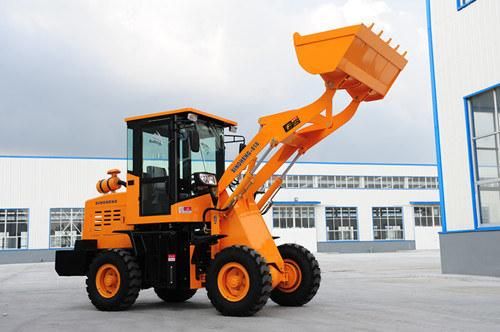

Hydraulic Loader, Mini Hydraulic Loader

Rated load	1200KG
Bucket Capacity	0.6CBM
Dump Height	2800mm
Dump distance	900mm
Wheel Base	2300mm
Wheel Tread	1500mm
Ground clearance	250mm
Machine weight	3500kg
LxWxH	5200*1850*2680mm
Model	YUNNEI 490 37KW
Type	In-line arrangement, water cooling, four strokes
Rated Power	37KW
Rated Speed	2200RPM
Torque converter model	YJ265
Type	Single phase, single stage, Radial in-ward turbine triplex
Gear box tyoe	Fixed- Spindle power shift
Electric Gear shift	2 gears ahead, 2 gears back
Type	Articulated hydraulic steering
Max. turning angle	35 degree
Service braking	Oil brake
Parking braking	Drum BRAKE  ISUZU
Standard tire	20.5/-16

1.0 Engine details:
(1) Model: 490 (XI CHAI)
(2) Engine type: In-line arrangement, water-cooled, four-cycle diesel Engine
(3) Rated Power: 51HP
(4) Rated Speed: 2400 r/min (rpm)
2.0 Transmission System
(1) Type: Hydraulic torque converter
3.0 Bucket
(1) Bucket Capacity: 0.5m3
(2) Bucket width: 1800mm
(3) Max. Breakout Force: 25KN
(5) Rated Load: 1800kg
(6) Operating Weight: 2650kg
4.0 Overall Dimensions:
(1) Overall Length (Bucket on ground position): 4800mm
(2) Overall Height
(a) Ground to Cabin Top: 2770mm
(b) Ground to exhaust pipe: It is below from the top of cab
(c) Dumping Height: 3200mm
(3) Overall Width: 1720mm
5.0 Operating Specifications
(1) Steering System: Articulated Frame with hydraulic power steering
(2) Min Turning Radius: 4500mm
(3) Driving System: Four wheel drive, four wheel brake.
6.0 Brake System
(1) Service Brake: Hydraulic disc brake on four wheels
(2) Parking Brake: Hand operated
7.0 Tyre
(1) Model: 1400-16
8.0 Wheelbase: 2080mm
9.0 Track: 1400mm
Shipment: 2units shipped in 1X40HC
