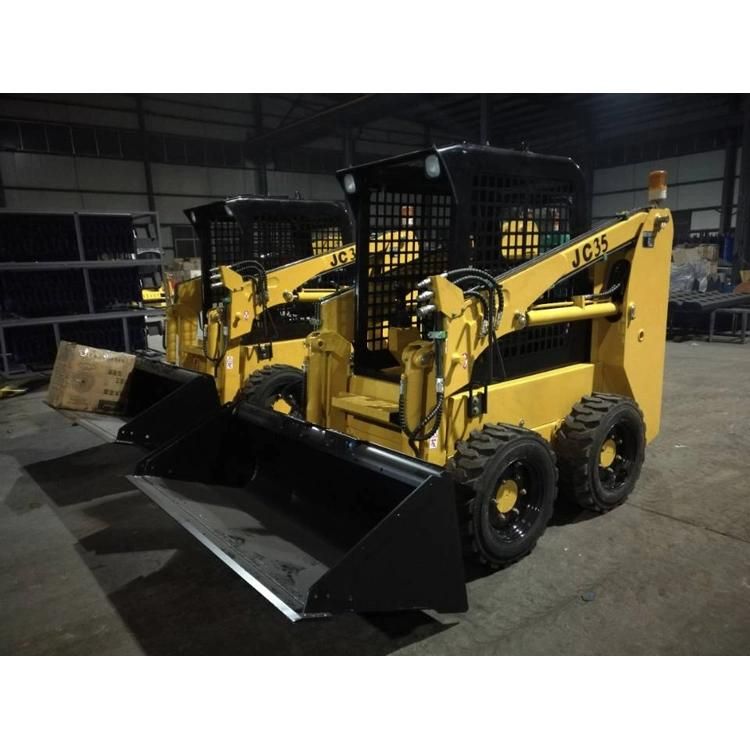

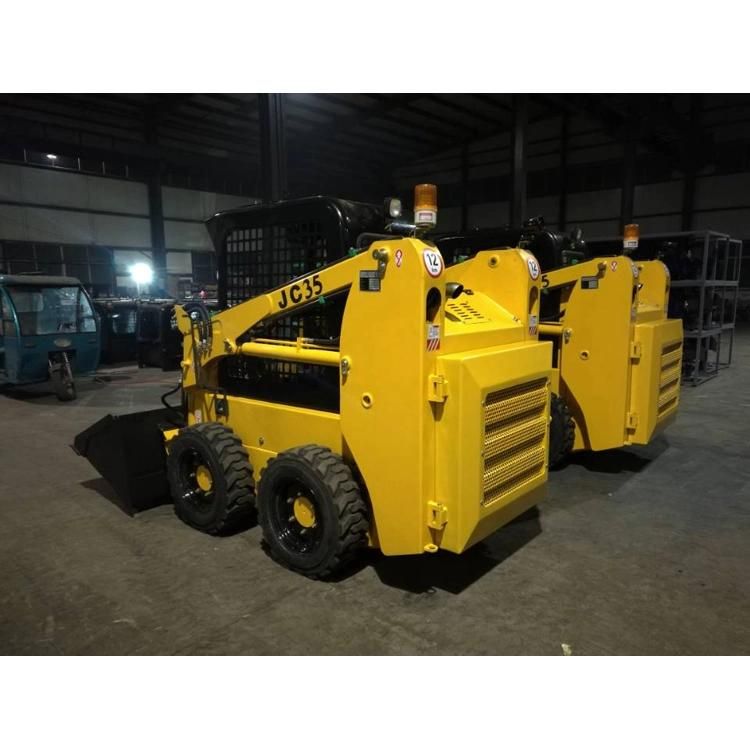

500kg 0.25cbm Mini Skid Steer Loader Jc35
Maxizm Construction Machinery (Qingdao) Co., Ltd.- Certification：ISO
- Condition：New
- Rated Load：<1t
- Transmission：Power
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
Base Info
- Model NO.：JC35
- Type：Small Loader
- Product Name：500kg 0.25cbm Mini Skid Steer Loader Jc35
- Color：Yellow
- Keyword：Front Loader Tractor
- Key Words：Wheel Loader China
- Attachments：Hydraulic Pallet Fork
- Other Attachments：Fork Grapple
- Application：Building
- Usage：Load
- Product：Machinery Engineering Construction Machinery
- Use：Moving Contruction Materials
- Transport Package：Container or Nude Package
- Specification：2950*1400*2000mm
- Trademark：LUYUE
- Origin：Shandong
- Production Capacity：1000unit,Year
Description
Rated Operating Capacity
500
Tipping load(Kg)
1000
Bucket Capacity(m3)
0.25
Lifting force(kg)
1000
Hydraulic Pump Flow(L/min)
40
Engine power(HP)
35
Weight(Kg)
2200
Max. Travel Speed(km/h)
8
Grade ability (° )
20
Tire
8.5- 15
Fuel hyd. Oil capacity(L)
50/50
Dimensions
A. Height at Maximum Extension
3300mm
B. Hinge Pin Height
2725mm
C. Total Height
2000mm
D. Length with Bucket
2950mm
E. Length without Bucket
2300mm
F. Width with Bucket
1400mm
G. Track Width
1080mm
H. Wheelbase
891mm
J. Ground Clearance
140mm
K. Dumping Angle
40°
L. Dumping Height
2050mm
M. Maximum Reach
790mm
