• Model NO.：XP303
• Travel Speed：40cm,s
• Centrifugal Force：40KN
• Certification：EPA, CS, CE, ISO 9001:2000, ISO 9001:2008
• Condition：New
• Color：Yellow
• Product Name：30ton Pneumatic Roller
• Transport Package：Nude, Suitable for Shiping
• Specification：ISO
• Trademark：Oriemac
• Origin：Jiangsu, China
• HS Code：84294019
• Production Capacity：3000 Sets,Month

Basic Info.

Model NO. XP303 Travel Speed 40cm/s Centrifugal Force 40KN Certification EPA, CS, CE, ISO 9001:2000, ISO 9001:2008 Condition New Color Yellow Product Name 30ton Pneumatic Roller Transport Package Nude, Suitable for Shiping Specification ISO Trademark Oriemac Origin Jiangsu, China HS Code 84294019 Production Capacity 3000 Sets/Month

Product Description

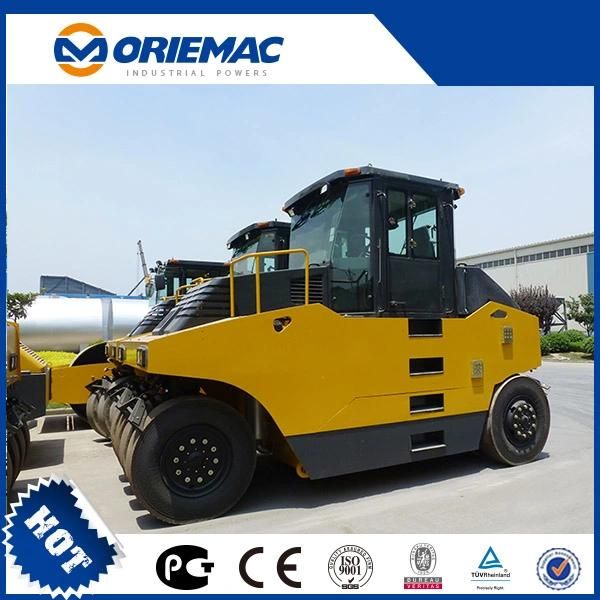

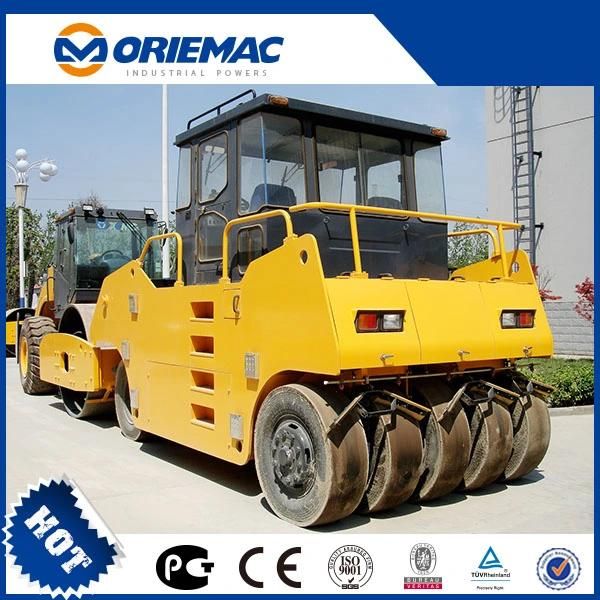

30t Pneumatic Tyred Road Roller  XP303



Main parameter:

Operating weight: 30 tons

Drum width: 2365 mm

Detailed configuration

* SC8D175.2G2B1 engine

* With function of purling

*Driving cabin with air conditioner equipped

Advantages

Adopt good brand engine , pump. Great working performance

Comfortable driving cabin, Easy for operation, Easy for maintain

Optional parts :

*Oil spray,

*Rear Camera Display


Model	Unit	XP303
Min. working weight	kg	15000
Max. working weight	kg	30300
Axle load,wheels	kg	1100
Static linear load	kg	11000
Theoretical gradeability	%	20
Min. turning external radius	mm	7620
Min. ground clearance	mm	300
Tyre overlap amount	mm	70
Front wheel swing range	mm	±50
Compaction width	mm	2365
Ground pressure	kPa	200~545
Wheel base	mm	2750
Travel speed	km/h	0~8
	km/h	0~16
Tyre specification		11.00-20
Tyre tread		Smooth
Tyre amount		Front 4 rear 5
Engine model		SC8D175.2G2B1
Rated speed	r/min	2000
Rated power	kw	128
Engine oil consumption	g/kW•h	205
Water tank capacity	L	1100
Hydraulic oil tank capacity	L	100
Fuel tank capacity	L	180
