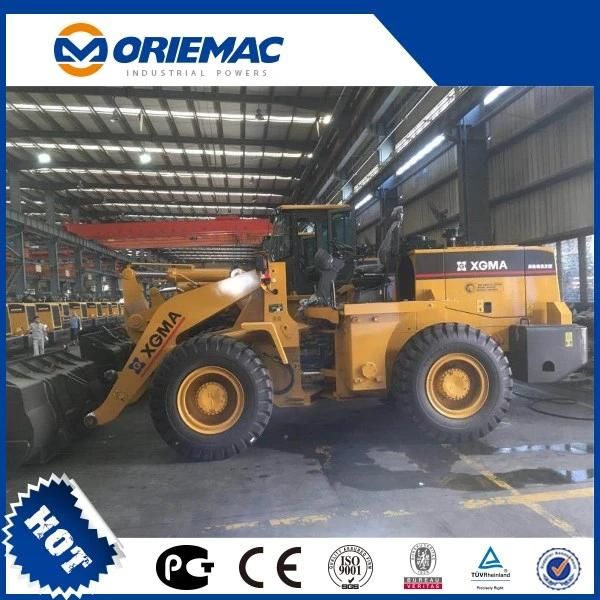

• Model NO.：XG932H
• Type：Small Loader
• Operating Weight：10000kg
• Bucket Capacity：1.7cbm
• Engine：Yuchai
• Dumping Height：3060mm
• Transport Package：Nude Package
• Specification：3ton
• Trademark：XGMA
• Origin：China
• Production Capacity：300,Month

ManufacturerXGMAModelXG932HOverall length(mm)6970Overall height(mm)3330Overall width(mm)2245Wheel base(mm)2750Ground clearance(mm)356Tread(mm)1800Bucket Width (mm)2420Turn radius(mm)5280Min.Turn radius outside of bucket (mm)5860 3930Max. Dumping Height(mm)3060Dumping Reach(mm)1020Digging depth(mm)100 50   Engine modelYC6J125Z-T20Rated power (kw)92Fuel comsumption per hour(g/kw.h )225Rated speed (r/min)2200Max torque(N.m)500Operating Weight (Tonnes)10.8Rated Load(Tonnes)3.2Bucket capacity (m3)1.4-3.0Lifting time/Lifting, dumping and lowering(s)6/10.4Max Breakout force(KN)100Max.drawing force (KN)103Max. turning angle(°)±35°Climbing ability(°)≤ 30 °Fuel tank(L)140Hydraulic tank(L)160Working pressure of steering hydraulic system(MPa)13Working pressure of load hydraulic system(MPa)16Travel speeds(km/h)FORWARD 1ST0~12FORWARD 2ND0~40FORWARD 3RD FORWARD 4TH REVERSE 1ST0~16REVERSE 2ND Gear BoxXGAxleXGImplement pump132Distibuting valveDF25-2CSteering Hydraulic systemBZZ5-500Steering pump90Tyre size17.5-25-12PRAir Conditioning/Anti-mist when idleing√Heating√Radio/Cassette√Bucket and arm raiseing (limit height) Device×Hydraulic Operation system√Seat Buckle√Head lamp √Reversing Alarm (Back vehicle)√ROPS/FOPS                                                                                                                             ×                    ManufacturerXGMAModelXG932HOverall length(mm)6970Overall height(mm)3330Overall width(mm)2245Wheel base(mm)2750Ground clearance(mm)356Tread(mm)1800Bucket Width (mm)2420Turn radius(mm)5280Min.Turn radius outside of bucket (mm)5860 3930Max. Dumping Height(mm)3060Dumping Reach(mm)1020Digging depth(mm)100 50   Engine modelYC6J125Z-T20Rated power (kw)92Fuel comsumption per hour(g/kw.h )225Rated speed (r/min)2200Max torque(N.m)500Operating Weight (Tonnes)10.8Rated Load(Tonnes)3.2Bucket capacity (m3)1.4-3.0Lifting time/Lifting, dumping and lowering(s)6/10.4Max Breakout force(KN)100Max.drawing force (KN)103Max. turning angle(°)±35°Climbing ability(°)≤ 30 °Fuel tank(L)140Hydraulic tank(L)160Working pressure of steering hydraulic system(MPa)13Working pressure of load hydraulic system(MPa)16Travel speeds(km/h)FORWARD 1ST0~12FORWARD 2ND0~40FORWARD 3RD FORWARD 4TH REVERSE 1ST0~16REVERSE 2ND Gear BoxXGAxleXGImplement pump132Distibuting valveDF25-2CSteering Hydraulic systemBZZ5-500Steering pump90Tyre size17.5-25-12PRAir Conditioning/Anti-mist when idleing√Heating√Radio/Cassette√Bucket and arm raiseing (limit height) Device×Hydraulic Operation system√Seat Buckle√Head lamp √Reversing Alarm (Back vehicle)√ROPS/FOPS                                                                                                                             ×                   ManufacturerXGMAModelXG932HOverall length(mm)6970Overall height(mm)3330Overall width(mm)2245Wheel base(mm)2750Ground clearance(mm)356Tread(mm)1800Bucket Width (mm)2420Turn radius(mm)5280Min.Turn radius outside of bucket (mm)5860 3930Max. Dumping Height(mm)3060Dumping Reach(mm)1020Digging depth(mm)100 50   Engine modelYC6J125Z-T20Rated power (kw)92Fuel comsumption per hour(g/kw.h )225Rated speed (r/min)2200Max torque(N.m)500Operating Weight (Tonnes)10.8Rated Load(Tonnes)3.2Bucket capacity (m3)1.4-3.0Lifting time/Lifting, dumping and lowering(s)6/10.4Max Breakout force(KN)100Max.drawing force (KN)103Max. turning angle(°)±35°Climbing ability(°)≤ 30 °Fuel tank(L)140Hydraulic tank(L)160Working pressure of steering hydraulic system(MPa)13Working pressure of load hydraulic system(MPa)16Travel speeds(km/h)FORWARD 1ST0~12FORWARD 2ND0~40FORWARD 3RD FORWARD 4TH REVERSE 1ST0~16REVERSE 2ND Gear BoxXGAxleXGImplement pump132Distibuting valveDF25-2CSteering Hydraulic systemBZZ5-500Steering pump90Tyre size17.5-25-12PRAir Conditioning/Anti-mist when idleing√Heating√Radio/Cassette√Bucket and arm raiseing (limit height) Device×Hydraulic Operation system√Seat Buckle√Head lamp √Reversing Alarm (Back vehicle)√ROPS/FOPS                                                                                                                             ×
