• Model NO.：XR260D
• Rated Speed：2100 Rpm
• Max. Pile Diameter：2200 mm
• Max.Drilling Depth：80 M
• Warranty：12 Months
• Transport Package：Nude Package
• Specification：ISO CE GOST
• Trademark：ORIEMAC
• Origin：Beijing
• HS Code：84304122
• Production Capacity：150PCS,Month

Basic Info.

Model NO. XR260D Rated Speed 2100 Rpm Max. Pile Diameter 2200 mm Max.Drilling Depth 80 M Warranty 12 Months Transport Package Nude Package Specification ISO CE GOST Trademark ORIEMAC Origin Beijing HS Code 84304122 Production Capacity 150PCS/Month

Product Description

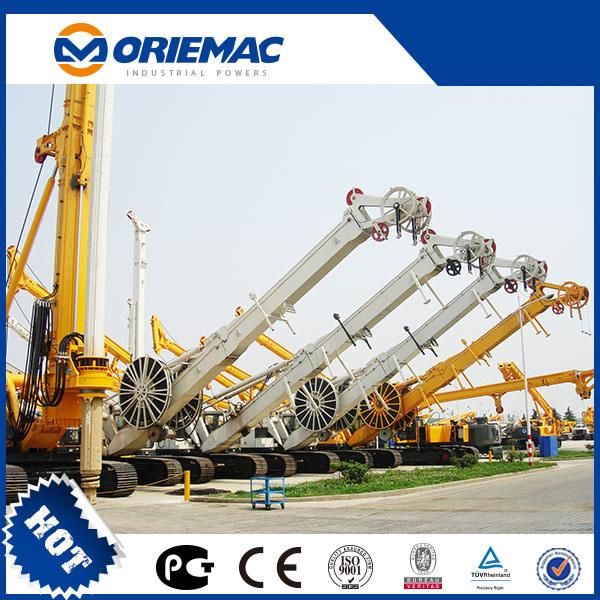

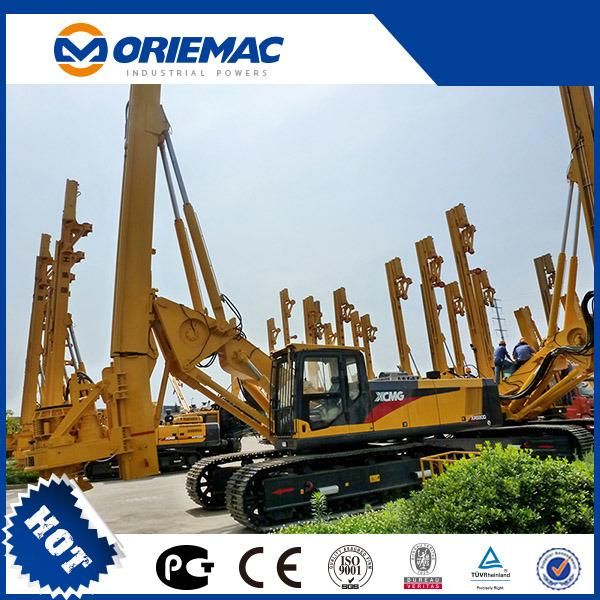

New Condition ORIEMAC Earth Rotary Drilling Machine Rig Xr260d

Single-row rope main windlass, effectively eliminating the rope abrasion and enhancing the service life of rope;

Infrared camera allowing the driver to observe the service condition of main windlass wire rope in the cab in the day and night;



More configurations available upon customer's demand (such as the outrigger cylinder and auto slewing) to enable better expansibility;



US imported electronic control turbo supercharged engine meeting Euro III emission standard, saving energy, environmental protection and strong power;



Limit power control and positive flow control enabling higher efficiency of hydraulic system and more energy saving;



Patented parallelogram derricking mechanism, allowing wide range work area; box structure drilling mast made of high strength material enabling higher strength and rigidity to effectively guarantee the drilling accuracy;



New structure rotary employing multi-stage shock absorption technique and dual seal structure, effectively enhancing the reliability; the removable driving sleeve pressure plate easy to repair;



Intelligent control system enabling the detecting device more accurate and reliable;



Optional 6-section drill rod, allowing maximum drilling depth up to 80 m.

Centralized lubricating system allows easier maintenance.



Specifications:

Max. Pile Diameter: 2200mm

Max. Pile Depth: 80 m

Max. Output Torque: 260 kN.m
