• Model NO.：XZ450
• Torque：23500 N.M
• Pipe Length：4.5 M
• Pipe Diameter：89 M
• Warranty：12 Months
• Transport Package：Nude Package
• Specification：ISO CE GOST
• Trademark：ORIEMAC
• Origin：Beijing
• HS Code：84304122
• Production Capacity：150PCS,Month

Basic Info.

Model NO. XZ450 Torque 23500 N.M Pipe Length 4.5 M Pipe Diameter 89 M Warranty 12 Months Transport Package Nude Package Specification ISO CE GOST Trademark ORIEMAC Origin Beijing HS Code 84304122 Production Capacity 150PCS/Month

Product Description

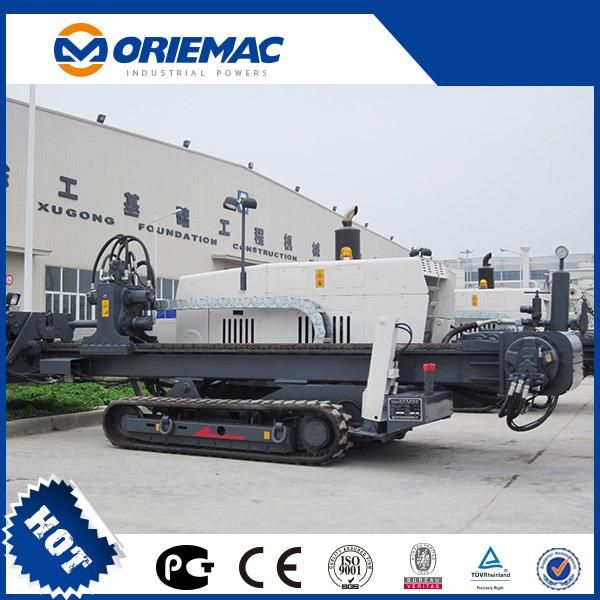

ORIEMAC Well Borehole Horizontal Directional Drilling Machine HDD Xz450

1. Closed loops, hydraulic pilot control, load sensing control help to save energy and operate flexibly.

2. The gear and rack transmission makes stability and reliability, floating patented technology for carriage and vice is to improve service life of rods' thread.

3. Optional reinforcing carriage to double the pull-back force to meet specific construction.

4. Dimension is small enough to be transported in container.

5. Wire guided walking system makes moving safe.

Product parameters

Project		Parameter
Engine	Unit
Type	-	6CTA8.3-C260
Rated power	(kW/r/min)	194/2200
Thrust-Pull
Max thrust-pull force	(kN)	480
thrust-pull speed	(m/min)	38
Rotation
Torque	(N·m)	23500
Max spindle speed	(r/min)	135
Mud pump
Max Flow rate	(L/min)	450
Max pressure	(MPa)	8
Pipe	(mm×m)	φ89×4.5
Loader Crane
Lifting weight	(t)	2
Loading capacity	(t•m)	4
Max inclination angle	(°)	20
Max backreamer diameter	(mm)	φ900
Weight	(t)	13.3
Dimension	(mm)	8800×2280×2610
Remark		Optional:I.Cab;II.Air-condition;III.Full-automatic pipeloader;IV.Semi-automatic pipeloader;V.Mud
