• Model NO.：T140-1
• Condition：New
• Color：Yellow
• Operation Weight：16500kg
• Transport Package：Nude
• Specification：5486× 3762× 2842mm
• Trademark：HBXG
• Origin：Hebei China
• Production Capacity：500

Basic Info.

Model NO. T140-1 Condition New Color Yellow Operation Weight 16500kg Transport Package Nude Specification 5486× 3762× 2842mm Trademark HBXG Origin Hebei China Production Capacity 500

Product Description

HBXG  140HP Bulldozer T140-1 Bulldozer for Sale

Specification:

It has characteristic of semi-rigid suspension, mechanical drive. The main clutch is hydraulic boosted. With hydraulic pilot controlled, electric monitoring, good appearance, it is widely used in road building, hydro-electric construction, field modification, port and mine development and other construction.

Parameter:

Dozer                                                                Tilt

(not including ripper) Operation weight (Kg)                            16500

Ground pressure(KPa)                                                 65

Track gauge(mm)                                                    1880

Gradient                                              30°/25°

Min. ground clearance (mm)                            400

Dozing capacity (m³)                                                   4.5

Blade width (mm)                                        3297

Max. digging depth (mm)                              320

Overall dimensions (mm)                                  5486×3762×2842

Engine

Type                                                  WD10G156E16

Rated revolution (rpm)                                            1850

Flywheel power (KW/HP)                                        104/140

Max. torque (N•m/rpm)                                        830/1100

Rated fuel consumption(g/KW•h)                                  ≤218

Undercarriage system

Type                                Swing type of sprayed beam.

                                    Suspended structure of equalizer bar

Number of track rollers (each side)                                     6

Number of carrier rollers (each side)                                    2

Pitch (mm)                                                        203

Width of shoe (mm)                                                500

Gear            1st    2nd     3rd     4th      5th

Forward  (Km/h)   0-2.52   0-3.55    0-5.68    0-7.53     0-10.61

Backward (Km/h)   0-3.53   0-4.96    0-7.94    0-10.53

Implement hydraulic system

Max. system pressure (MPa)                                         12           Pump type                                     Two groups Gears pump

System output(L/min)                                            180

Driving system

Main cluth           Normally opened, wet type, hydraulic booster control.

Transmission        Normally meshed helical gear drive, coupling sleeve shift and two lever operation, the transmission has five forward and four backward speeds.

Steering clutch.      Multiple-disc oil power metallurgy disc compressed by spring. hydraulic operated.

Braking clutch       Brake is oil two direction floating band brake operated by mechanical foot pedal.

Final drive          The final drive are double reduction with spur gear and   segment sprocket, which are sealed by
duo-cone seal.

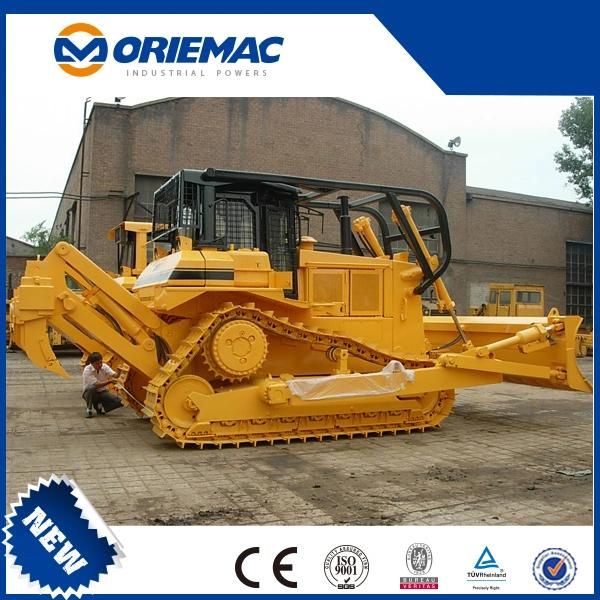

Picture show:
