Mini Excavator Attachments Backhoe Wheel Loader 910 with Hydraulic Garden Flail Mower for Sale
Shandong Honest Machinery Co., Ltd.- Certification：TUV, UL, ISO, RoHS, CE, EPA
- Condition：New
- Rated Load：1-3t
- Transmission：Hydraulic
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
Base Info
- Model NO.：M910
- Type：Small Loader
- Price：Cheap Wholesale Price
- Engine：Diesel Perkins,Yanmar,Chinese
- Rated Power：30HP, 40HP, 50HP, 60HP, 70HP, 80HP
- Rated Loading Capacity：1ton, 1.5ton, 2 Ton, 2.5ton, 3 Ton
- Weight：2000kg, 3000kg, 3500kg, 5000kg
- Max. Lifting Height：3000mm, 4000mm, 5000mm, 6000mm
- Category：Construction Machinery
- Attachments Available：Pallet Fork, Bucket, Grapple, Hay Fork, Backhoe...
- Size：Compact Small
- Loader Usage：Farming, Construction, Gardening, Landscaping
- Transport Package：Container
- Specification：1200kg load capacity, 3000mm lifting height
- Trademark：STEEL CAMEL
- Origin：China
- HS Code：8429510000
- Production Capacity：800 Sets,Year
Description
Basic Info.
Model NO. M910 Type Small Loader Price Cheap Wholesale Price Engine Diesel Perkins/Yanmar/Chinese Rated Power 30HP, 40HP, 50HP, 60HP, 70HP, 80HP Rated Loading Capacity 1ton, 1.5ton, 2 Ton, 2.5ton, 3 Ton Weight 2000kg, 3000kg, 3500kg, 5000kg Max. Lifting Height 3000mm, 4000mm, 5000mm, 6000mm Category Construction Machinery Attachments Available Pallet Fork, Bucket, Grapple, Hay Fork, Backhoe... Size Compact Small Loader Usage Farming, Construction, Gardening, Landscaping Transport Package Container Specification 1200kg load capacity, 3000mm lifting height Trademark STEEL CAMEL Origin China HS Code 8429510000 Production Capacity 800 Sets/YearProduct Description
mini excavator attachments backhoe wheel loader 910 mounted hydraulic garden flail mower for saleGENERAL INTRODUCTION:
1. Heavy duty telescopic boom, self-leveling and boom floating2. 4WD hydrostatic direct drive motors, heady duty and high efficiency3. Quick coupling and quick hitch system4. Both front and rear hydraulic output for various attachments5. Perkins/Yanmar/Kohler/Hatz engine, Italian pump and valves6. 9-functions joystick 7. Flexible articulation and differential lock for all rough terrain8. Tiltable cabin, fully access to inner parts
TECHNICAL DATA:

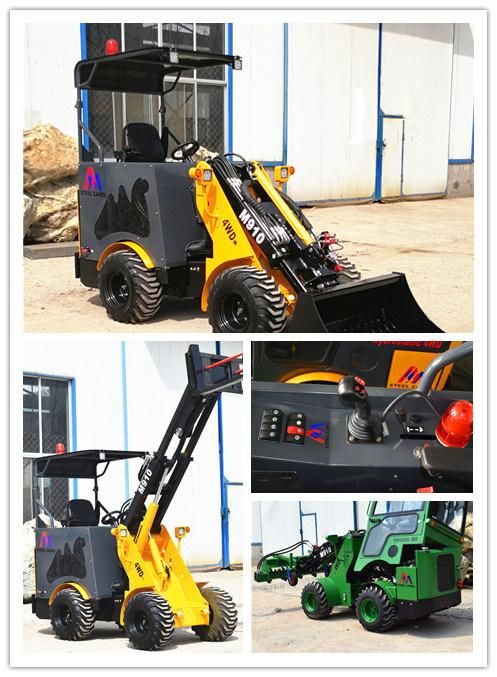

| Model | STEEL CAMEL M910 small loader |
| Dimension (LxWxH) | 2690 X1240 X 2285mm |
| Max. lifting height (boom extended) | 3030mm |
| Max. lifting height (boom retracted) | 2512mm |
| Max. dumping height | 2630mm |
| Bucket capacity | 0.5cbm |
| Max. loading capacity | 1200kg |
| Min. turning radius | 2120mm |
| Turning angle | 45 degree |
| Min. ground clearance | 268mm |
| Speed | 0-12 km/h single speed |
| Weight | 1700 kg |
| Standard tire | 26X12-12 |
| Tire pressure | 2.8 bar |
| Oil tank capacity | 45L |
| Pressure | 190bar |
| Working oil flow | 33.5L/minx2 |
| Tracking oil flow | 78L/min |
| Oil model(mineral oil) | L-HL46 |
| Fuel tank capacity | 30L |
| Battery | 60Ah, 12V |
| Engine | Perkins 404D-15 |
| Rated power | 24.5kw/33hp |
APPLICATION:
Loader+Tractor, one Multi-purpose helper for globle customers

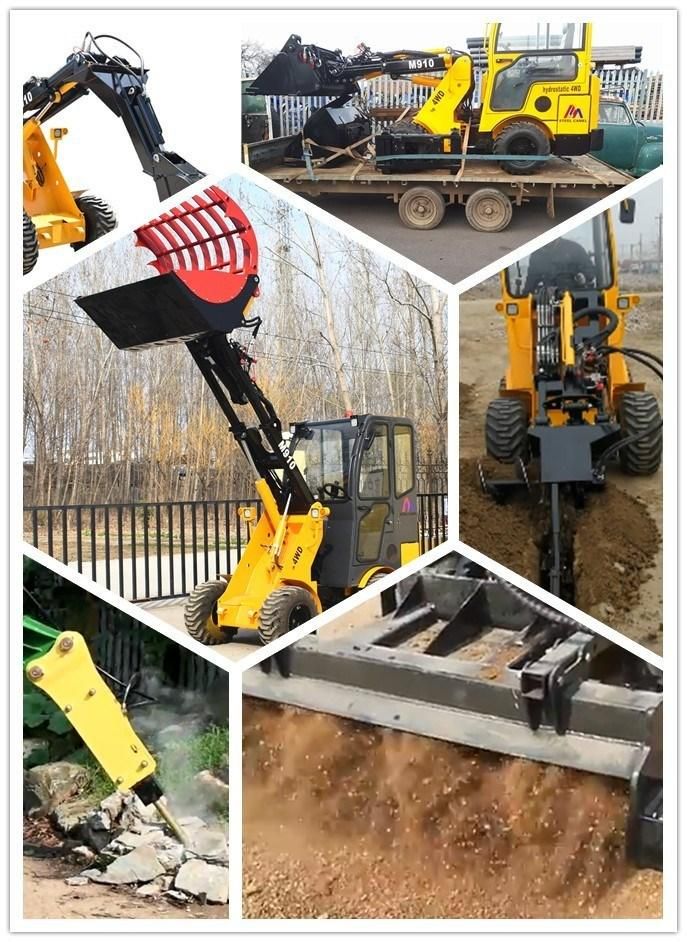

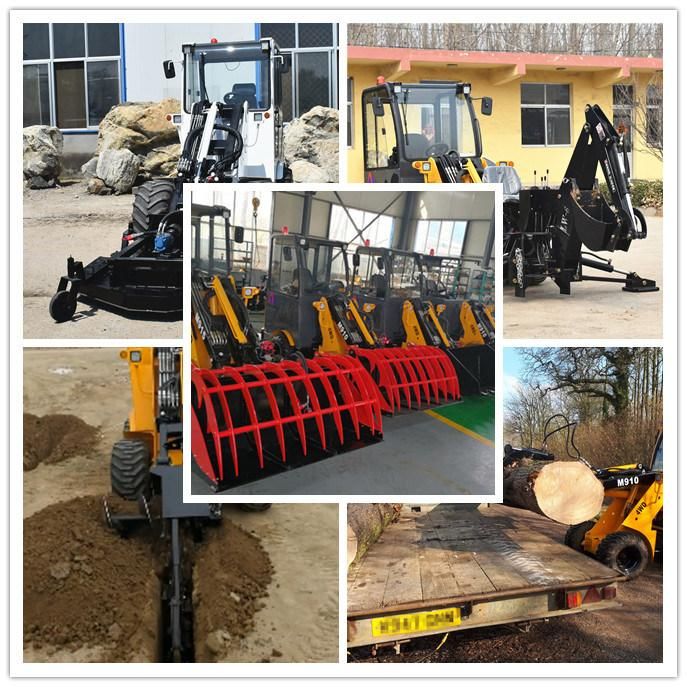

Front part is loader, with telescopic boom, hydraulic output, quick hitch and coupling system for various attachments, like bucket, fork, grapple, auger, hammer, lawn mower, etc.Rear part is tractor, with hydraulic output and 3-point hitch, for rotary tiller, trailer, etc.
STEEL CAMEL series wheel loaders are widely used in farming, agriculture, landscaping, gardening, construction, municiple, etc.
