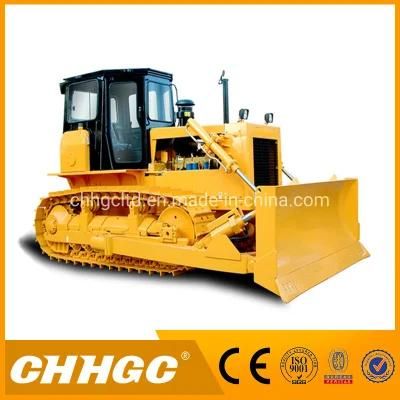

• Model NO.：HT140
• Condition：New
• Color：Yellow
• Operation Weight (Kg)：16500
• Dozer Type：Angle or Tilt
• Bulldozer Type：Direct Drive Transmission, Track-Type Undercarriag
• Ground Pressure(Kpa)：63.3, 62.9
• Dozing Capacity (M³)：4.0, 4.5
• Blade Width (mm)：3762, 3297
• Max. Digging Depth (mm)：400
• Overall Dimensions for Angle Shovel (mm)：5486×3762×2842
• Ll Dimensions for Tilt Shovel (mm)：5336×3297×2842
• Flywheel Power (Kw/HP)：104,140
• Transport Package：Container
• Specification：CE, Rohs, ISO9001, ISO4001
• Trademark：CHHGC
• Origin：Henan, China
• HS Code：84291
• Production Capacity：50000 Sets,Year

Dozer typeTiltOperation weight (Kg)  (not including ripper)16500Ground pressure(KPa)  63.3(Angle); 62.9(Tilt)Track gauge(mm)       1880Gradient  30°/25°Min. ground clearance (mm)   400Dozing capacity (m³)   4.0(Angle); 4.5 Tilt ShovelBlade width (mm)  3762 (Angle); 3297 (Tilt)Max. digging depth (mm)     400Overall dimensions (mm)    Angle Shovel5486×3762×2842Overall dimensions (mm)    Tilt Shovel5336×3297×2842EngineEngine TypeWD10G156E25Rated revolution (rpm)  1850Flywheel power (KW/HP)   104/ 140Max. torque (Nm/rpm)          830/ 1100Rated fuel consumption(g/KWh)     ≤218Undercarriage system/ Moving SystemTypeSwing type of sprayed beam. Suspended structure of equalizer barNumber of track rollers (each side)   6Width of Crawler Plate (mm)  500Gear  1st 2nd 3rdForward  (Km/h)         0-2.52     0-3.32     0-5.68     0-7.53     0-10.64 Backward (Km/h)        0-3.53     0-4.60     0-7.94     0-10.53 Implement hydraulic systemMax. system pressure (MPa)  12Pump type   Two groups Gears pumpSystem output(L/min)180Driving systemMain clutch Normally opened, wet type, hydraulic booster control.  GearboxNormally meshed helical gear drive, coupling sleeve shift and two lever operation, the transmission has five forward and four backward speeds.Steering clutch.The steering clutch is hydraulic pressed, usually separated clutch.Braking clutchMultiple-disc oil power metallurgy disc compressed by spring. hydraulic operated.Final drive   The final drive are double reduction with spur gear and segment sprocket, which are sealed by duo-cone seal.
CHHGC HT Series Bulldozers VS Shantui SD Series Bulldozers


1.Mechanical-transmission,minimum power losses,
work more efficiently;

2.Low repair and maintenance costs;
3.Long service life.Operate Weight(kg)17.12  t17  tTrack ground length(mm)2570mm 2430mmGround Pressure64Kpa67 KpaEngine Power131kw120kwTrack Plate Quantity(piece)3837Forward gearsFive GearsThree GearsBackward gearsFour GearsThree Gears

Our Products

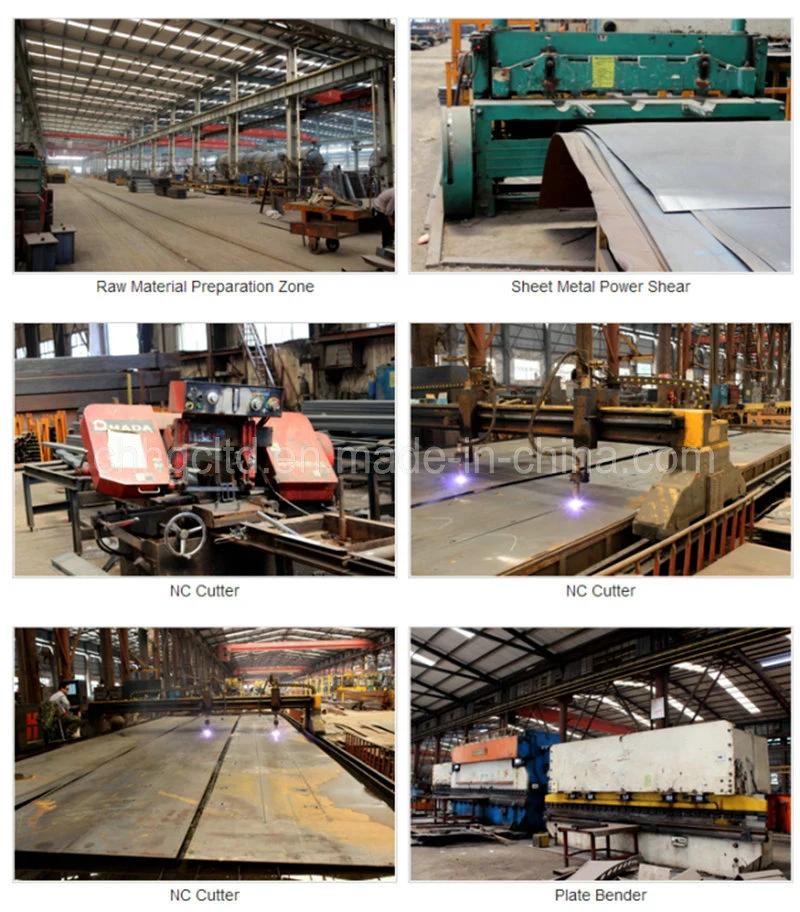

Workshop




Packaging and Shipping

1. All the bulldozers will be made anti rust before shipment
2. Different shipping method for different situation, Ro-Ro Vessel, Bulk Vessel, Flat-Rack, Container, etc
3. Shipment tracking service


Our Services

1.Reply your inquiry in 24 working hours.
2.Experienced staffs answer all your questions in professional and fluent English.
3.Customized design is available. OEM is welcome.
4.Exclusive and unique solution can be provided to our customer by well-trained and professional engineers and staffs.
5.Special discount and protection of sales area provided to your distributor.
6.Do the best reliable heavy-duty earthmoving machinery in China.
7.Warranty period is 1-year or 2000 working hours against Bill of Lading.
