• Model NO.：HSD7
• Max. Digging Depth (mm)：498
• Overall Dimensions (mm)：5677×3500×3402
• (Including Ripper) Dimension(mm)：7616×3500×3402
• Brand：Chhgc
• Transport Package：Container
• Specification：CE, Rohs, ISO9001, ISO4001
• Trademark：CHHGC
• Origin：Henan, China
• HS Code：84291
• Production Capacity：50000 Sets,Year

Dozer typeTiltOperation weight (Kg)  (not including ripper)23800Ground pressure(KPa)  71.9Track gauge(mm)       1980Gradient  30°/25°Min. ground clearance (mm)   404Dozing capacity (m³)   8.4Blade width (mm)  3500Max. digging depth (mm)     498Overall dimensions (mm)    5677×3500×3402With ripper Overall dimensions (mm)7616×3500×3402EngineEngin TypeCUMMINS NTA855-C280S10Rated revolution (rpm)  2100Flywheel power (KW/HP)   169/230Max. torque (N?m/rpm)          1097/1500Rated fuel consumption(g/KW?h)     ≤235Undercarriage system/ Moving SystemTypeThe track is triangle shape. The sprocket is elevated elastic suspended.  Number of track rollers (each side)   7Width of shoe (mm)  560Gear  1st 2nd 3rdForward  (Km/h)       0-3.9          0-6.5           0-10.9      Backward (Km/h)       0-4.8          0-8.2           0-13.2  Implement hydraulic systemMax. system pressure (MPa)  18.6Pump type   High perssure gears pumpSystem output(L/min)194Driving systemTorque converteTorque converter is power separating hydraulic-mechanic typeGearboxPlanetary, power shift transmission with three speeds forward and three speeds reverse, speed and direction can be quickly shifted.Steering clutch.The steering clutch is hydraulic pressed, usually separated clutch.Braking clutchThe braking clutch is pressed by spring, separated       hydraulic, meshed type.Final drive   The final drive is two-stage planetary reduction gear     mechanism, splash lubrication.

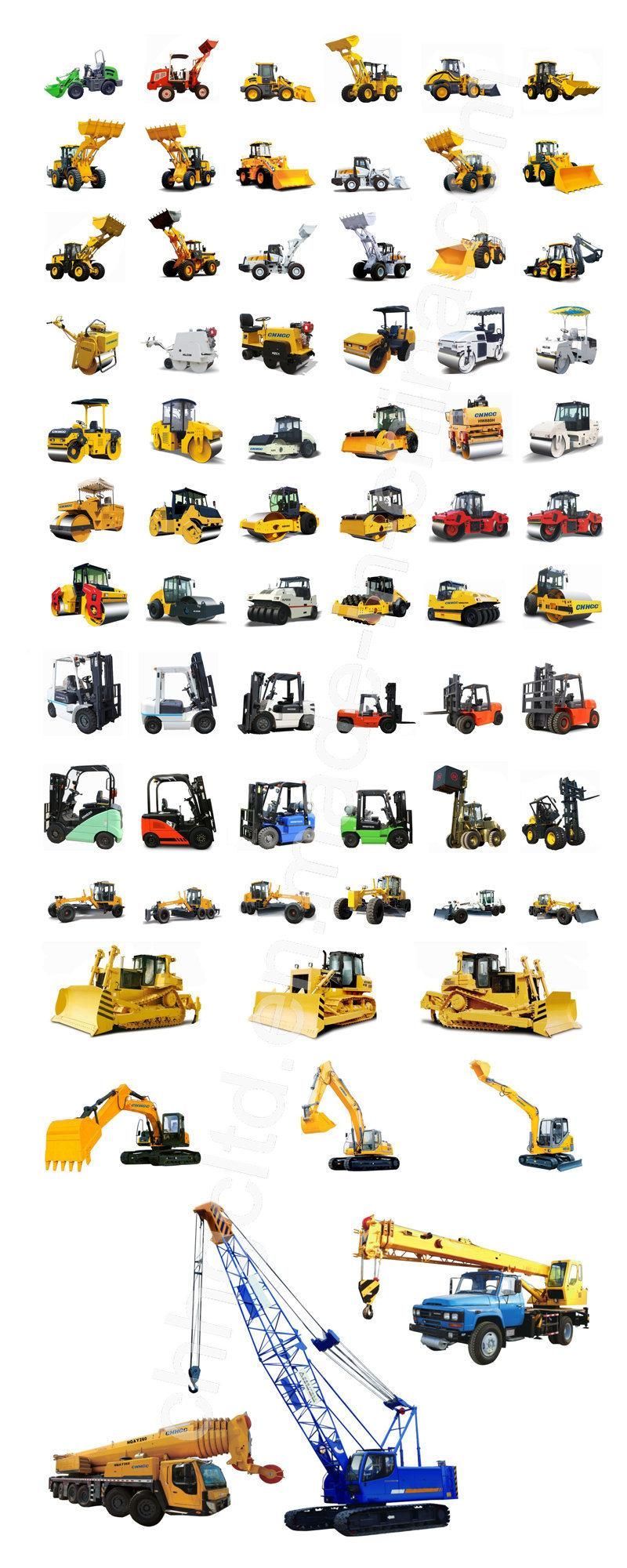

Our Products

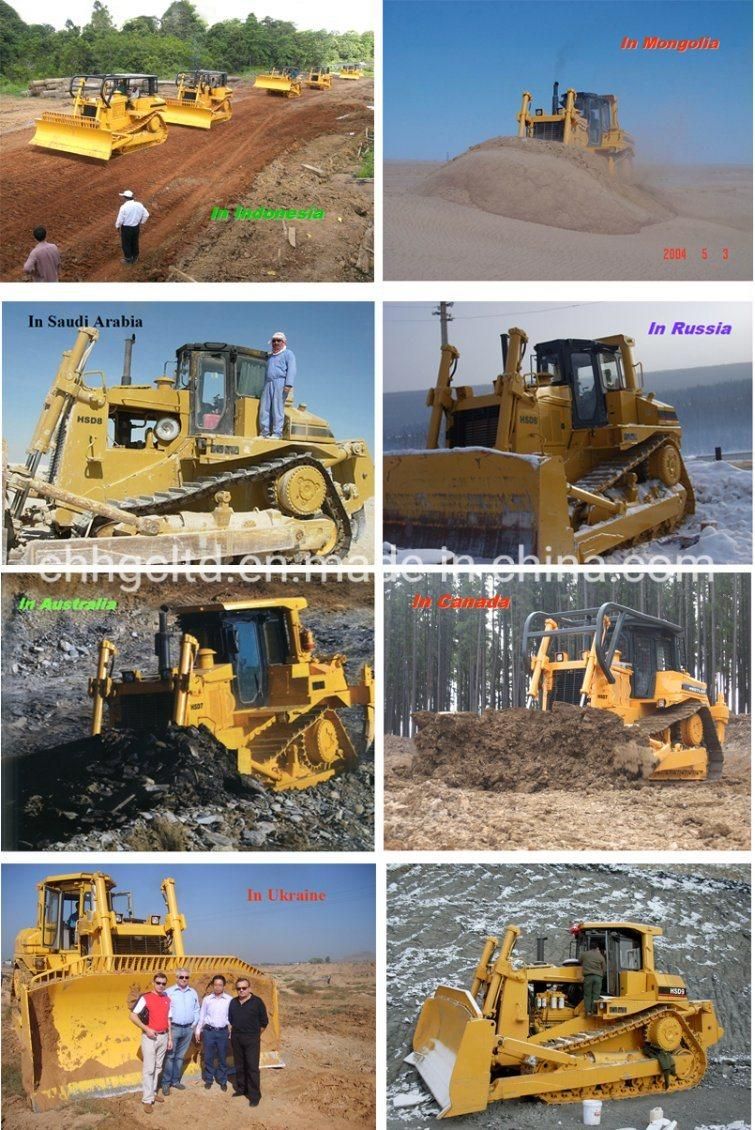

Actual Site

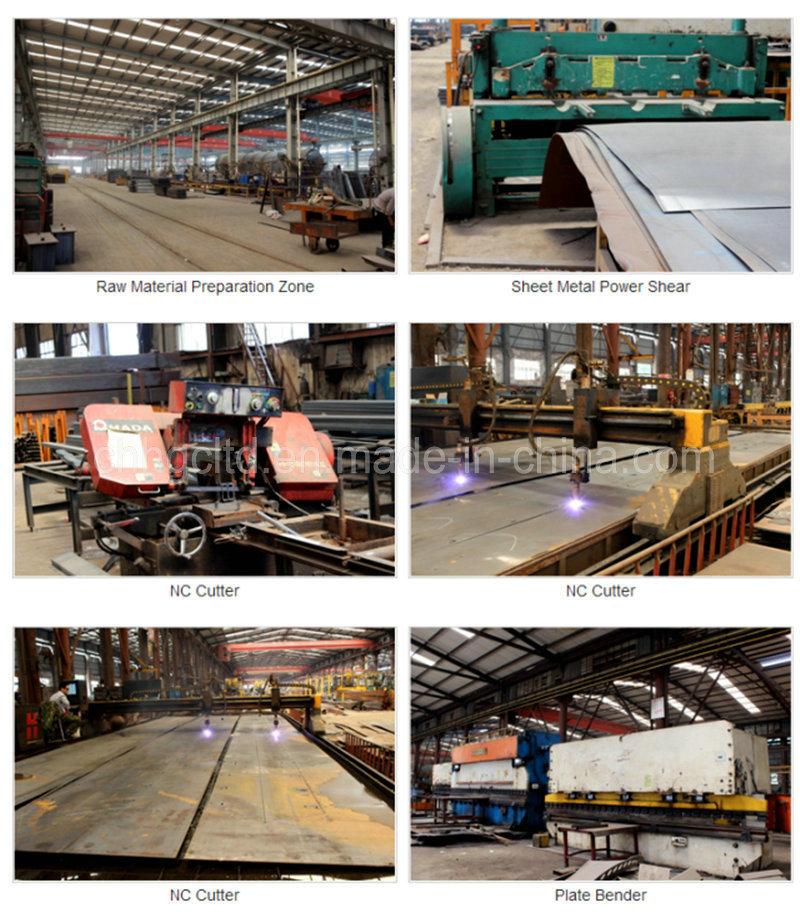

Workshop




Packaging and Shipping

1. All the ripper dozers will be made anti rust before shipment
2. Different shipping method for different situation, Ro-Ro Vessel, Bulk Vessel, Flat-Rack, Container, etc
3. Shipment tracking service


Our Services

1.Reply your inquiry in 24 working hours.
2.Experienced staffs answer all your questions in professional and fluent English.
3.Customized design is available. OEM is welcome.
4.Exclusive and unique solution can be provided to our customer by well-trained and professional engineers and staffs.
5.Special discount and protection of sales area provided to your distributor.
6.Do the best reliable heavy-duty earth-moving machinery in China.
7.Warranty period is 1-year or 2000 working hours against Bill of Lading.
