• Model NO.：HTYS165-3
• Condition：New
• Color：Yellow
• Operation Weight (Kg)：18300
• Dozer Type：Tilting
• Bulldozer Type：Direct Drive Transmission, Track-Type Undercarriag
• Ground Pressure(Kpa)：28,32
• Dozing Capacity (M³)：4.5
• Blade Width (mm)：2300
• Max. Digging Depth (mm)：400
• Max. Lifting Height of Ripper(mm)：510
• Max. Digging Depth of Ripper(mm)：550
• Overall Dimensions (mm)：5585×4222×3190
• Transport Package：Container
• Specification：CE, Rohs, ISO9001, ISO4001
• Trademark：CHHGC
• Origin：Henan, China
• HS Code：84291
• Production Capacity：50000 Sets,Year

Dozer typeTiltOperation weight (Kg) (not including ripper)18300Ground pressure(KPa) 28/32Track gauge(mm) 2300Gradient 30°/25°Min. ground clearance (mm) 375Dozing capacity (m³) 4.5Blade width (mm) 4222Max. digging depth (mm) 400Overall dimensions (mm) 5585×4222×3190Max. lifting height of blade(mm) 980EngineEngin TypeWD10G178E25Rated revolution (rpm) 1850Flywheel power (KW/HP) 131/178Max. torque (Nm/rpm) 830/1100Rated fuel consumption(g/KWh) ≤218Undercarriage system/ Moving SystemTypeSwing type of sprayed beam. Suspended structure of equalizer barNumber of track rollers (each side) 6Width of shoe (mm) 500Gear 1st 2nd 3rdForward (Km/h) 0-2.52 0-3.32 0-5.68 0-7.53 0-10.64 Backward (Km/h) 0-3.53 0-4.60 0-7.94 0-10.53 Implement hydraulic systemMax. system pressure (MPa) 12Pump type Two groups Gears pumpSystem output(L/min)190Driving systemMain clutch Normally opened, wet type, hydraulic booster control. GearboxNormally meshed helical gear drive, coupling sleeve shift and two lever operation, the transmission has five forward and four backward speeds. Steering clutch. The steering clutch is hydraulic pressed, usually separated clutch. Braking clutchMultiple-disc oil power metallurgy disc compressed by spring. hydraulic operated. Final drive The final drive are double reduction with spur gear and segment sprocket, which are sealed by duo-cone seal.
CHHGC HT Series Bulldozers VS Shantui SD Series Bulldozers

1. Mechanical-transmission, minimum power losses,
work more efficiently;

2. Low repair and maintenance costs;
3. Long service life. Operate Weight(kg)17.12 t17 tTrack ground length(mm)2570mm 2430mmGround Pressure64Kpa67 KpaEngine Power131kw120kwTrack Plate Quantity(piece)3837Forward gearsFive GearsThree GearsBackward gearsFour GearsThree Gears

Our Products

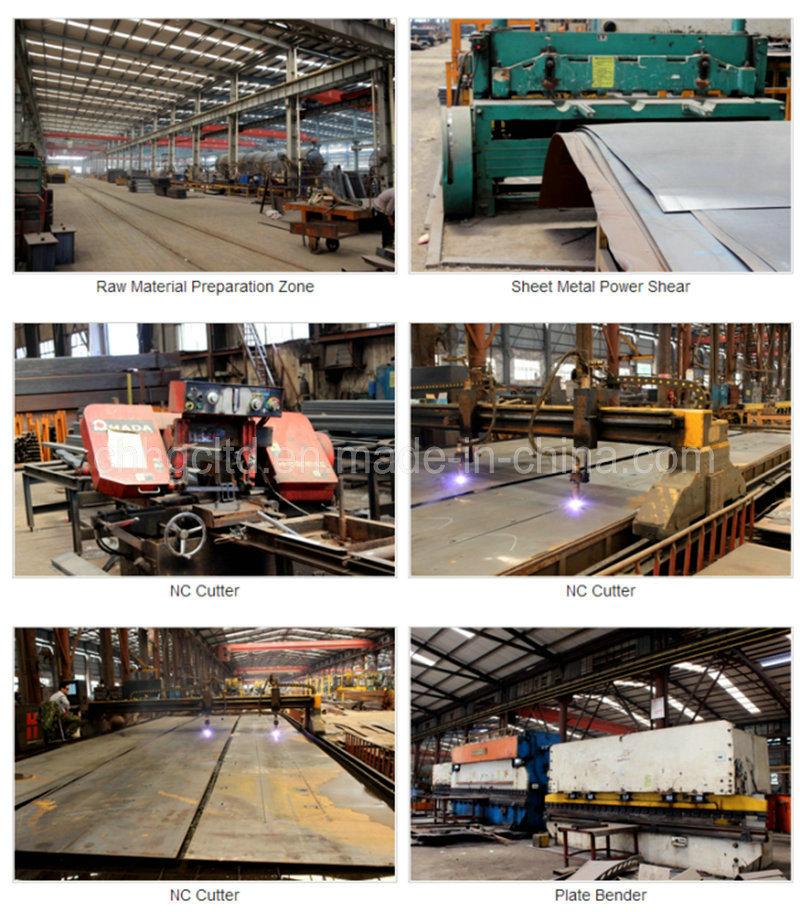

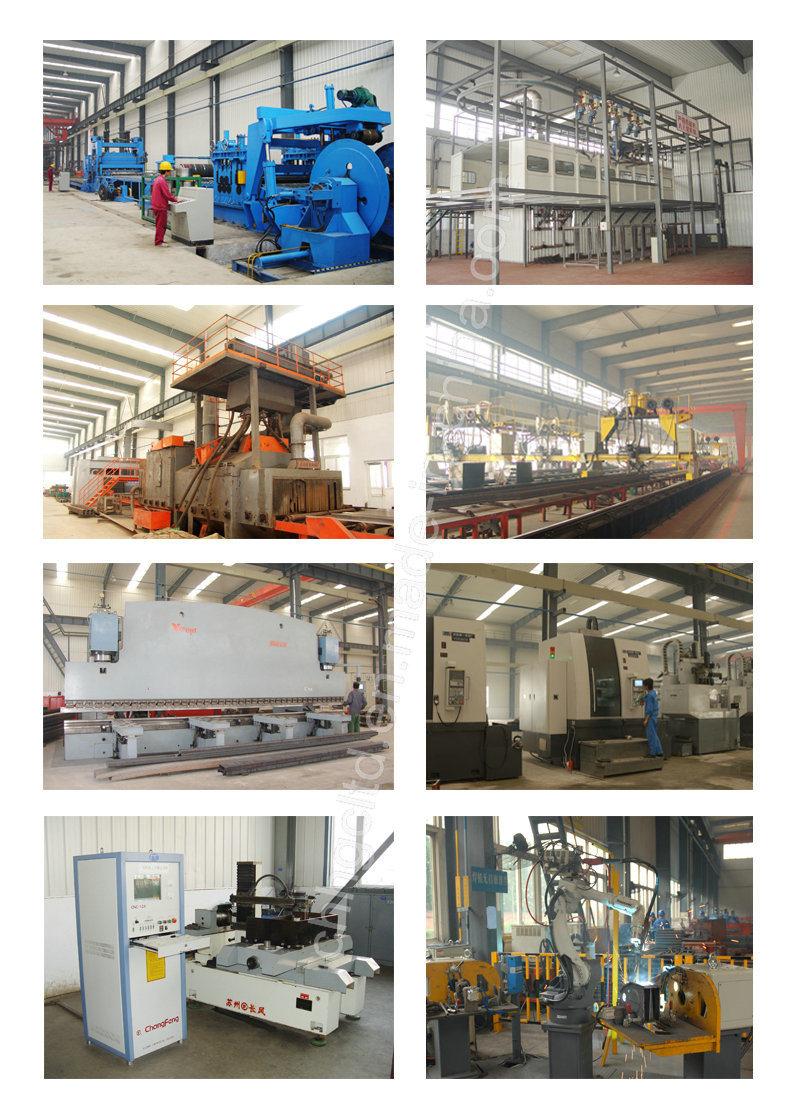

Workshop




Packaging and Shipping

1. All the dozer bulldozers will be made anti rust before shipment
2. Different shipping method for different situation, Ro-Ro Vessel, Bulk Vessel, Flat-Rack, Container, etc
3. Shipment tracking service


Our Services

1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in professional and fluent English.
3. Customized design is available. OEM is welcome.
4. Exclusive and unique solution can be provided to our customer by well-trained and professional engineers and staffs.
5. Special discount and protection of sales area provided to your distributor.
6. Do the best reliable heavy-duty earth-moving machinery in China.
7. Warranty period is 1-year or 2000 working hours against Bill of Lading.
8.1 year or 2000 hours quality guarantee replacement;
9. professional provide configuration and installation scheme;
