• Model NO.：HCC204,303
• Travel Speed：22cm,S
• Centrifugal Force：40KN
• Certification：CE, RoHS, ISO 9001:2008
• Condition：New
• Operating Mass：4000kg
• Static Linear Load：150,184 N,Cm
• Vibration Amplitude：0.5 mm
• Vibration Frequency：50 Hz
• Warranty：One Year or 1500 Working Hours
• Max. Travel Speed：8km,H
• Ground Clearance：300 mm
• Turning Radius：6000 mm
• Wheelbase：2200 mm
• Diesel Power：22 Kw
• Transport Package：Container, RO - RO Ship, Frame Cabinet, etc.
• Specification：CE, Rohs, ISO9001, ISO4001
• Trademark：CHHGC
• Origin：Luoyang
• HS Code：84294
• Production Capacity：50000 Sets,Year

Basic Info.

Model NO. HCC204/303 Travel Speed 22cm/S Centrifugal Force 40KN Certification CE, RoHS, ISO 9001:2008 Condition New Operating Mass 4000kg Static Linear Load 150/184 N/Cm Vibration Amplitude 0.5 mm Vibration Frequency 50 Hz Warranty One Year or 1500 Working Hours Max. Travel Speed 8km/H Ground Clearance 300 mm Turning Radius 6000 mm Wheelbase 2200 mm Diesel Power 22 Kw Transport Package Container, RO - RO Ship, Frame Cabinet, etc. Specification CE, Rohs, ISO9001, ISO4001 Trademark CHHGC Origin Luoyang HS Code 84294 Production Capacity 50000 Sets/Year

Product Description

2T 3T 4T Double Steel Drum Roller Compactor, Vibratory Compacting Road Roller


Main Features

1. Adopt ZN390Q engine manufactured by Changchai Co., Ltd. with good starting performance.
2. The rear-drum drive with side gear transmission and vibration in the front drum.
3. The front and rear frame articulated and power steering; Fork-type drum brackets with more than 600mm drum-side clearance.
4. The gearbox uses Japanese technology with easy gearshift; And three travel speeds posses good compaction and fast transportation.
5. Platform trailer as option.
6. Two the state patents.


Main Technical Parameters

Item	Unit	Model:  HCC204	Model:  HCC303	Model:  HZC2.5
0perating mass	kg	4000	3000	2500
static linear load(F/R)	N/cm	150/184	120/153	117/154
Vibration amplitude	mm	0.5	0.5	0.5
Vibration frequency	Hz	50	50	50
Centrifugal force	kN	39	32	25
Max. travel speed	km/h	8	7.8	5.6
Gradeability	%	20	20	20
Turning radius	mm	6000	4500	4300
Drum width	mm	1200×900	1100×780	900×750
Wheelbase	mm	2200	2050	1980
Ground clearance	mm	300	260	220
Diesel model		ZN390Q	ZN390Q	CZ380Q
Diesel power	kW	22	22	14.7
Overall dimensions	mm	3180×1420×2650	2880×1280×2650	2765×1200×2580

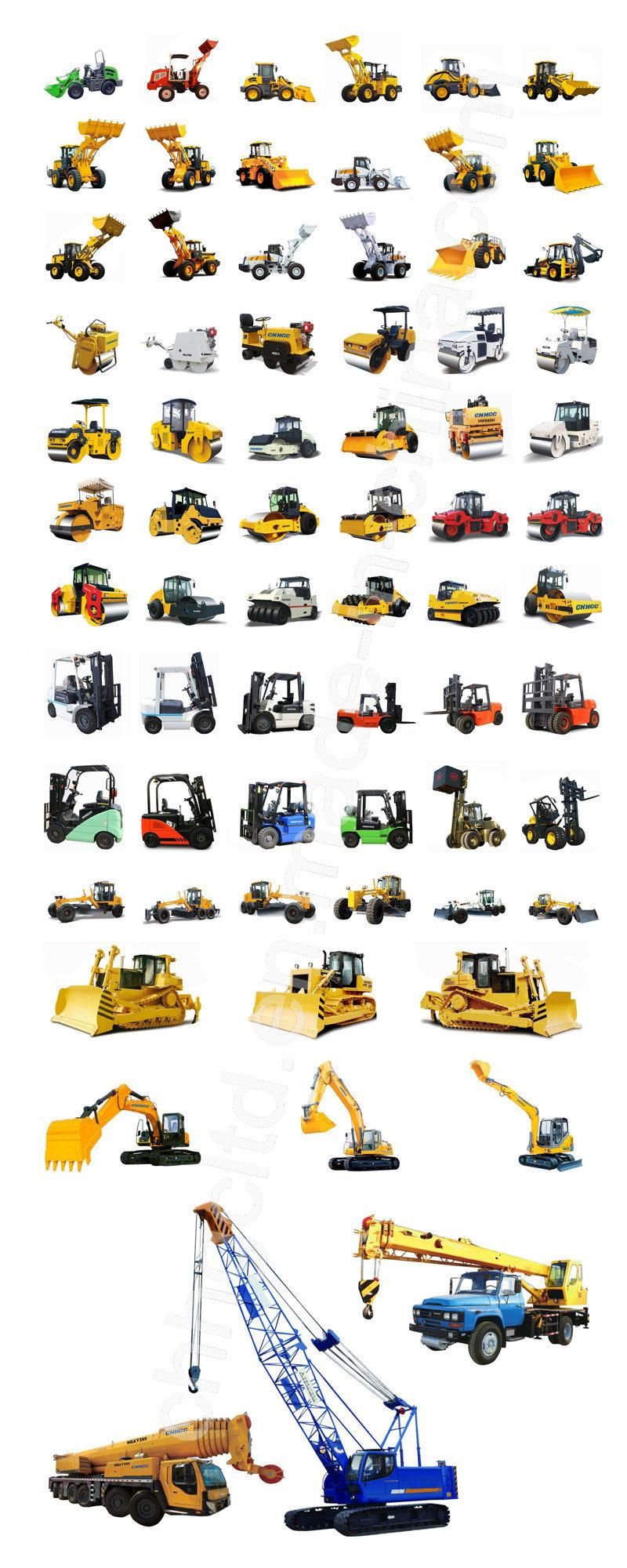

Our Products


Usage Scope of Double Steel Drum Vibratory Road Rollers

The tandem vibratory rollers are small-size tandem vibratory roller, applied to mending and maintaining various roads, expressway shoulder, side walk, parking area, sports ground and garden lawn. They are especially suited for compaction of narrow areas as pipeline channel and drainage trench etc.

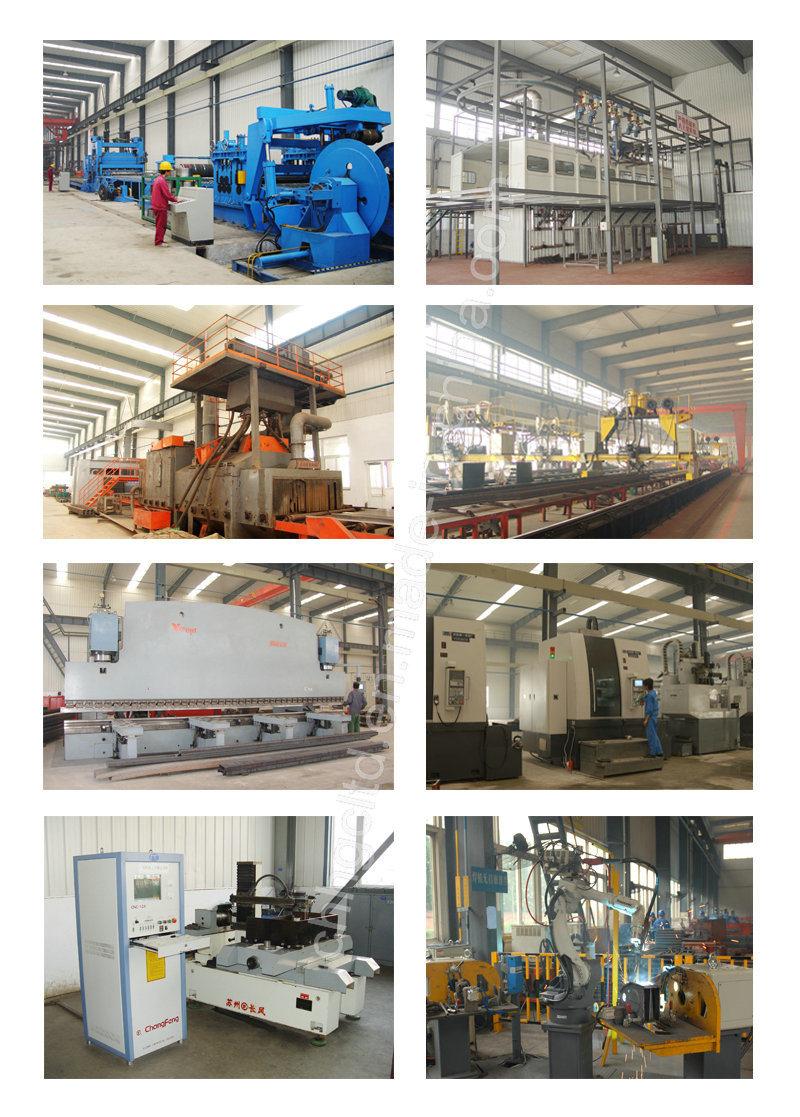

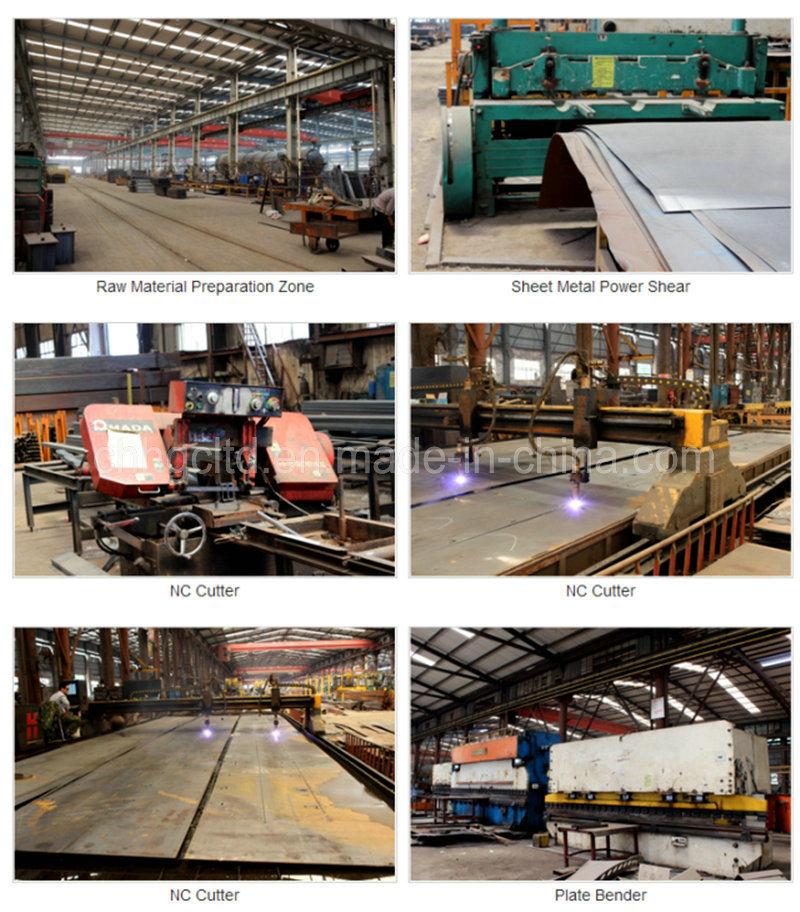

Workshop


Company Information

We are a professional manufacture and chain supplier specializing in construction machinery and agricultural equipments. 70% of our products are made for export. We keep diverse products according to customer and market demand. We produce and supply wheel loaders, tractors, implements, wheel excavators, backhoe loaders, forklifts road rollers, light towers, concrete mixers, plate compactor, impact tampers, road cutters, concrete vibrators, and so on. Our Products-passed ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, ISO/TS 16949, ISO 14064, QC 080000, BSCI Certificates. Most advanced machines shipped to America and Africa, Southeast Asia, Russia, India, Philippines, Pakistan, Yemen, Singapore, Hong Kong, Thailand, Uzbekistan, Peru, Australia as well as many other countries in Middle East...


Why us?

1)A professional international sales team, which enable us to turn inquiries into final products and export them to numerous countries and regions without barriers;
2) A well managed quality control system to customize on clients requirements. We can design according to customers usage invironment.
3) Unparalleled after sales service.


Service

1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in professional and fluent English.
3. Customized design is available. OEM is welcome.
4. Exclusive and unique solution can be provided to our customer by well-trained and professional engineers and staffs.
5. Special discount and protection of sales area provided to your distributor.
6. Do the best reliable heavy-duty single drum vibratory road roller in China.
7. Warranty period is 12 months or 1500 working hours against Bill of Lading.
