• Model NO.：CHHGC623B
• Certification：ISO9001: 2000, CE
• Condition：New
• Operating Weight(Kg)：23000
• Grade Ability：30
• Drum Diameter：2100mm
• Turning Angle：30c
• Wheelbase：3380mm
• Diesel Power：132kw
• Transport Package：Standard Export Packing
• Specification：6435x2350x3090mm
• Trademark：CHHGC
• Origin：China
• HS Code：8429401900
• Production Capacity：5000units , 500 Unit,Units Per Month

Model
CHHGC623B
Operating mass
kg
23000
Static linear load
N/cm
560
Vibration amplitude
mm
1.9/0.95
Vibration frequency
Hz
30
Centrifugal force
KN
430/330
Travel speed
Km/h
10.5
Grade ability
%
30
Turning radius
mm
7500
Overall dimension
mm
6435x2350x3090
Drum width
mm
2100
Wheelbase
mm
3380
Diesel model
SC8D180
Diesel power
Kw
132

Main Features

1.Mechanical drive,double amplitude,hydraulic vibration and steering;
2.Powerful Chinese SC8D180 tubrocharged diesel engine;
3.Reliable Brake System:Hand Brake and Foot Pedal Brake;
4.Spacious and comfortable cabin with good operation view and turn-over function;
5.Vibration System adpots PERMCO gear pump;
6.Removal padfoot drum is optional.


Our Services

1.Reply your inquiry in 24 working hours.
2.Experienced staffs answer all your questions in professional and fluent English.
3.Customized design is available. OEM is welcome.
4.Exclusive and unique solution can be provided to our customer by well-trained and professional engineers and staffs.
5.Special discount and protection of sales area provided to your distributor.
6.Do the best reliable heavy-duty single drum vibratory road roller in China.
7.Warranty period is 1-year or 1500 working hours against Bill of Lading.

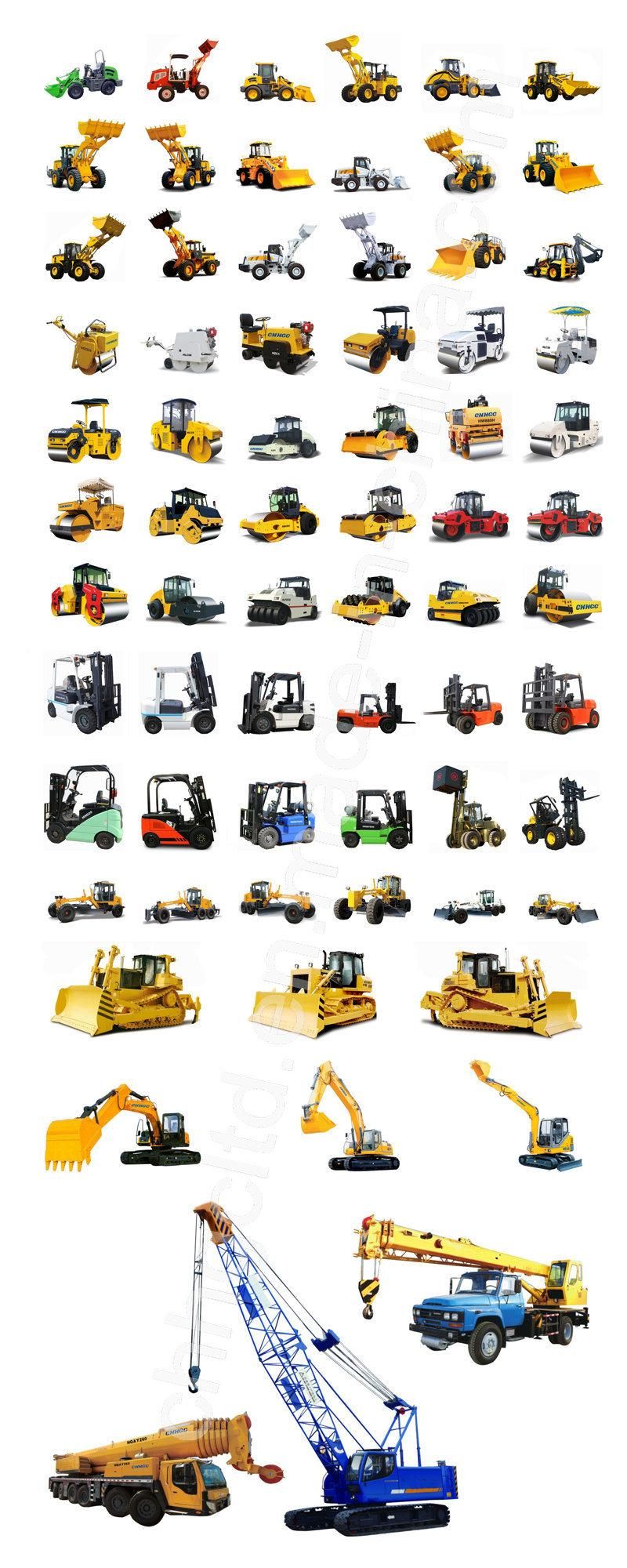

Our Products

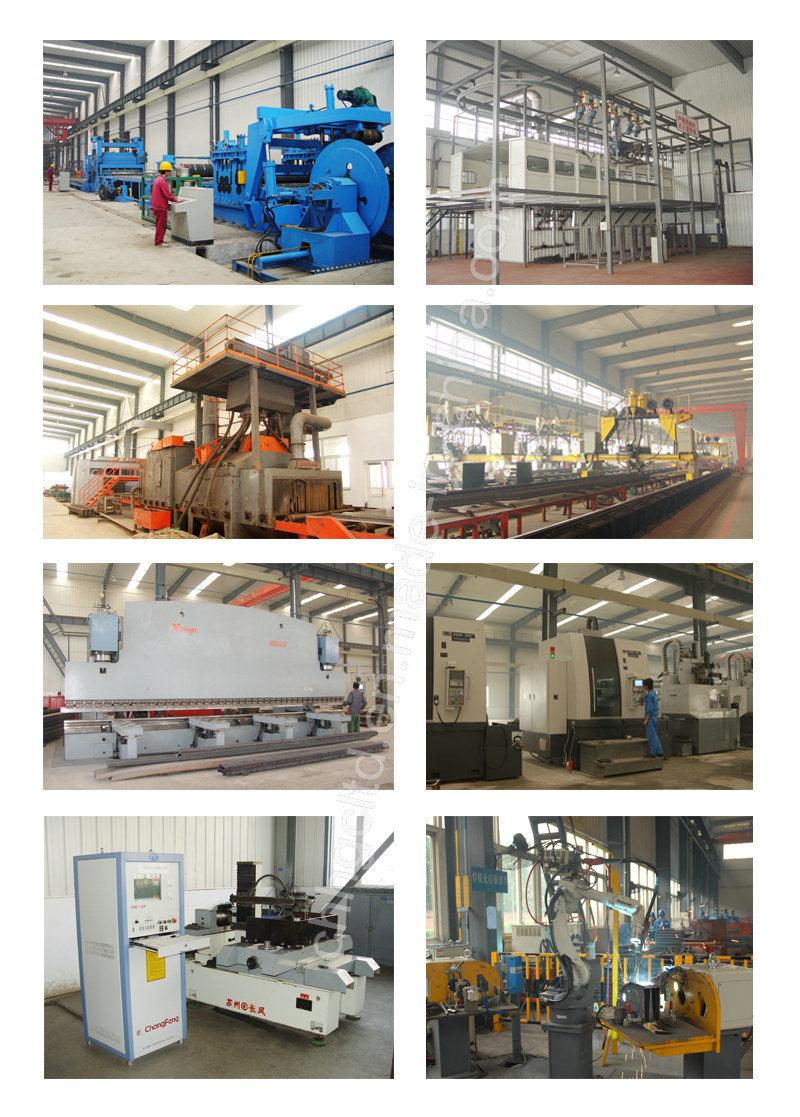

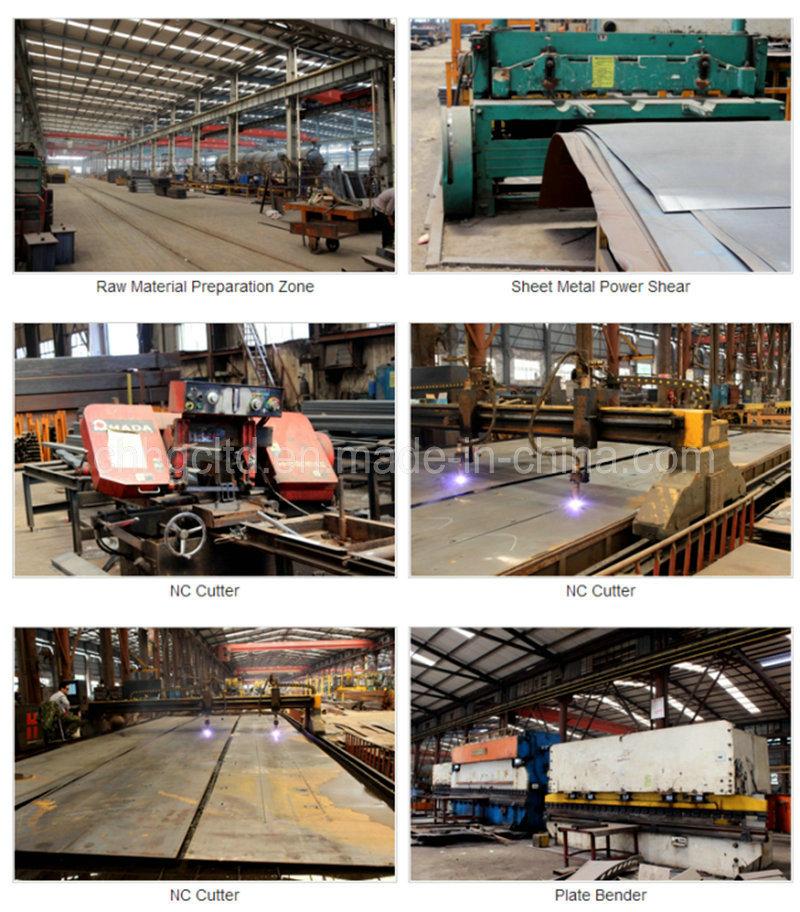

Workshop
