Small Manual Push Tandem Drum Vibrating Roller Compactor, Mini Walking-Behind Road Roller
Henan Haiheng Import and Export Co., Ltd.- Type：Road Roller
- Object：Soil Surface
- Moving Type：Mobile
- Mixing Method：Continuous Drum
- Automatic Grade：Non-Automatic
- Product Capacity：>400t,h
Base Info
- Model NO.：HHC08H
- Certification：ISO9001: 2000, CE
- Condition：New
- Operating Weight(Kg)：770
- Grade Ability(%)：35
- Vibration Amplitude：0.25mm
- Vibration Frequency：48Hz
- Turning Speed：2700mm
- Drum Width：600
- Transport Package：Standard Export Packing
- Specification：5820x2280x3000MM
- Trademark：CHHGC
- Origin：China
- HS Code：8429401900
- Production Capacity：5000units , 500 Unit,Units Per Month
Description
Main Technical Parameters HHC08 HHC08H HHC08Z Operating mass Kg 770 770 770 Static linear load N/cm 46/73 46/73 46/73 Vibration amplitude mm 0.25 0.25 0.25 Vibration frequency Hz 48 48 48 Centrifugal force kN 12 12 12 Travel speed km/h 2.5 0-4 2.5 Grade ability % 40 35 40 Turning speed mm 2700 2700 2700 Overall dimension mm 2450x820x1030 2480x950x1100 1950x880x1290 Drum width kW 600 600 600 Wheel base mm 470 470 470 Diesel power/model kW 5.68/CFI 86F 5.68/CFI 68F 5.68/CFI 68F
Main Features
HHC08 HHC08Z manual vibrating road roller can be used for municipal road construction, highway maintenance, and rolling work at narrow road surface, such as foundation of groove wider than 0.8m , building construction, back filling for pipeline and gymnasium ground.
The whole machine has a nice shape, compact structure and small size; it can do rolling work in narrow ground;
All wheel drive, strong climbing capability;
Using CFI 86F vertical direct-spray air-cooled engine, with both electrical and manual start up devices;
Designed with guide wheel and joystick, it is labor saving and easy to control
Our Products

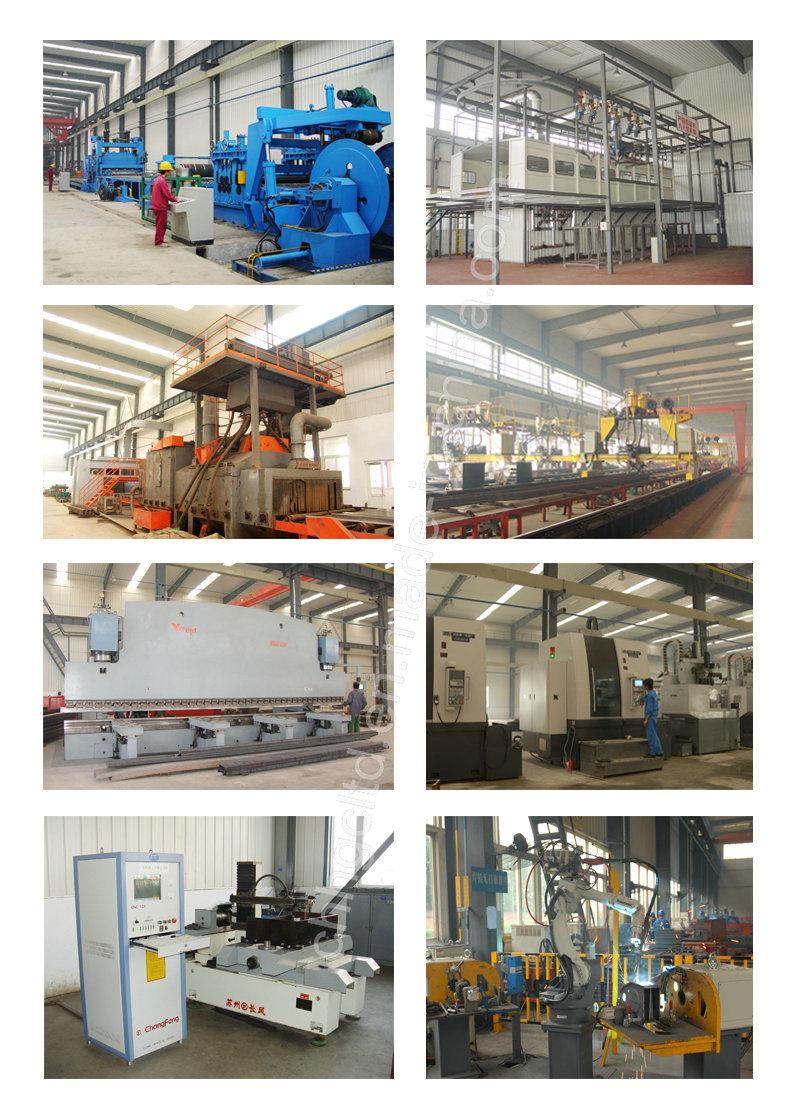

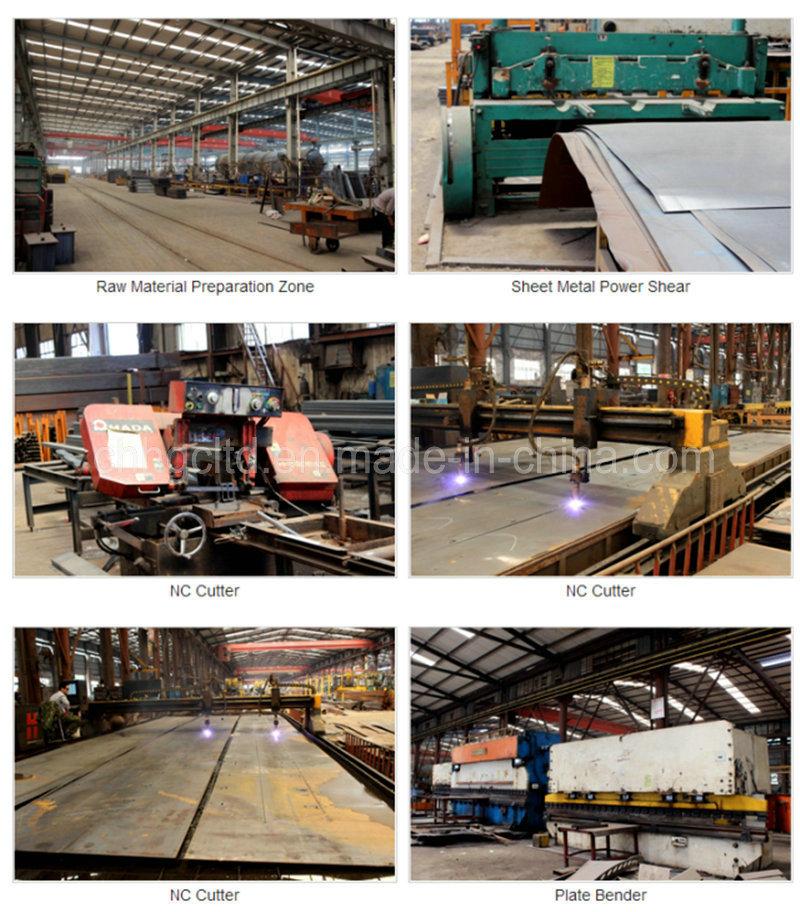

Workshop
Main Features
HHC08 HHC08Z manual vibrating road roller can be used for municipal road construction, highway maintenance, and rolling work at narrow road surface, such as foundation of groove wider than 0.8m , building construction, back filling for pipeline and gymnasium ground.
The whole machine has a nice shape, compact structure and small size; it can do rolling work in narrow ground;
All wheel drive, strong climbing capability;
Using CFI 86F vertical direct-spray air-cooled engine, with both electrical and manual start up devices;
Designed with guide wheel and joystick, it is labor saving and easy to control
