• Model NO.：HH208
• Certification：ISO9001: 2000, CE
• Condition：New
• Operating Weight(Kg)：8000
• Grade Ability：40
• Drum Diameter：1150mm
• Turning Speed：6000mm
• Wheelbase：3217mm
• Diesel Speed：2400 R,Min
• Transport Package：Standard Export Packing
• Specification：5820x2280x3000MM
• Trademark：CHHGC
• Origin：China
• HS Code：8429401900
• Production Capacity：5000units , 500 Unit,Units Per Month

Basic Info.

Model NO. HH208 Certification ISO9001: 2000, CE Condition New Operating Weight(Kg) 8000 Grade Ability 40 Drum Diameter 1150mm Turning Speed 6000mm Wheelbase 3217mm Diesel Speed 2400 R/Min Transport Package Standard Export Packing Specification 5820x2280x3000MM Trademark CHHGC Origin China HS Code 8429401900 Production Capacity 5000units / 500 Unit/Units Per Month

Product Description

8 Ton Hydraulic Double Steel Smooth Drum Road Roller/Soil Roller Compactor


Description

1.12 months warranty
2.Operating mass---8000kg
3.From of frame---Fork-type
4.Diesel model---Cummins 4BT3.9


Specifications


MODEL		HH208
Operating mass	kg	8000
Static linear load	N/cm	231
From of frame		Fork-type
Crabwise movement distance	mm	±170
Vibration amplitude	mm
High amplitude		0.67
Low amplitude		0.34
Vibration frequency	Hz
High amplitude		45
Low amplitude		50
Centrifugal force	KN
High amplitude		90x2
Low amplitude		69x2
Travel speed	Km/h	0-11.1
Turning speed	mm	6000
Grade ability	%	40
Steering angle	°	±35
Drum diameter	mm	1150
Drum width	mm	1730
Wheelbase	mm	3217
Overall length	mm	4558
Overall width	mm	1840
Overall height	mm	2674
Diesel model		Cummins 4BT3.9
Diesel power	KW	75
Diesel speed	r/min	2400



Main Features

1. Full hydraulic two wheel drive and Vibration.
2. Dual frequencies and dual Vibration amplitudes.
3. Hydrostatic center articulated steering, patented crab mechanism.
4.The driver's cabin is spacious and comfortable,equipped with rotary working seat,making the operation more flexible and convenient.
5. The driver's cabin can be turned on one side as a whole, to facilitate maintenance.
6. Fork-type frame,good hold-down property.


Application

1.Hydraulic vibratory rollers are manufactured according to international advanced technology and by use of imported components from abroad.
2.The machine is a double drum tandem vibratory roller.
3.It is primarily used for the compaction of road asphalt concrete,sand g ravel mixtures and RCC material,being a universal compaction equipment for highway,municipal road,park area and industry g round etc


Our Products

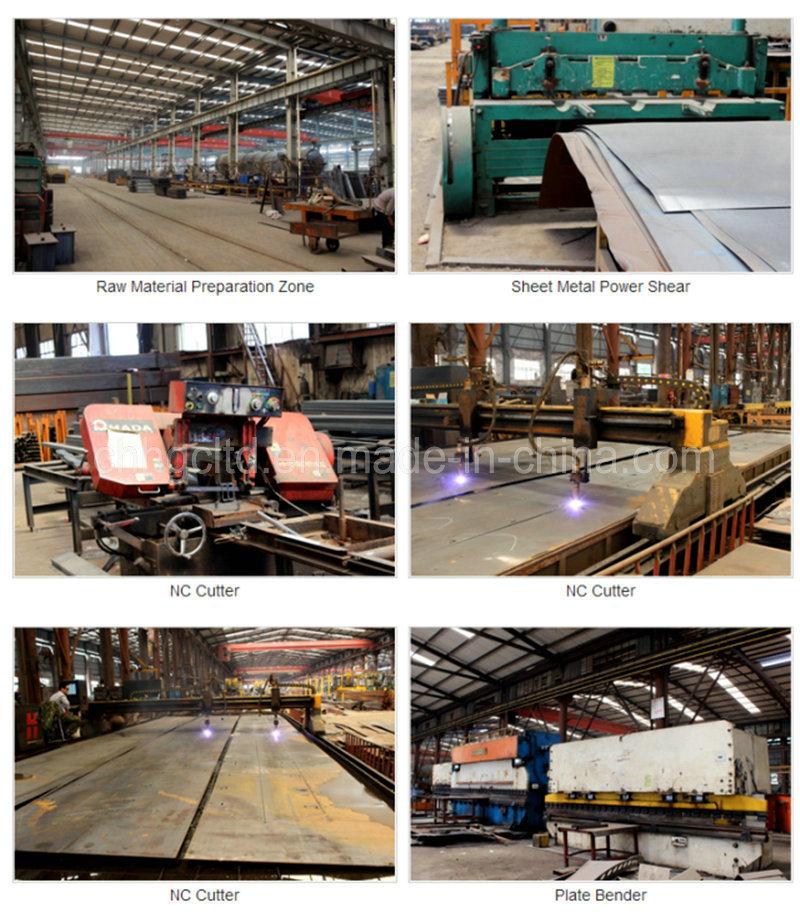

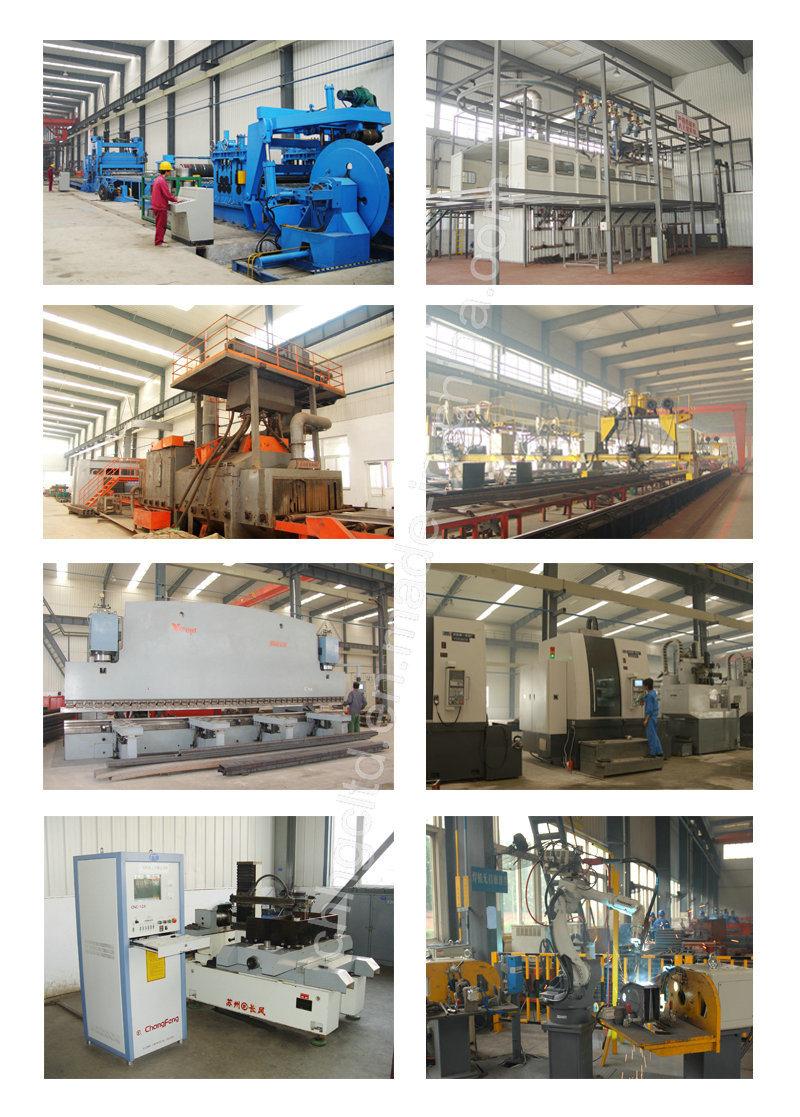

Workshop
