• Model NO.：HH968-23T
• Rated Power：175kw
• Operating Weight：28220
• Max.Lifting Height(Forks at Level)：3540mm
• Max. Load in Max. Lifting Height (Back T：19400,3780kg,mm
• Rated Loader：24000,1800kg,mm
• Calibration Load(Closed State of Fork)：23000,2200kg,mm
• Tipping Load -- Straight：24000kg
• Max.Traction Force：182kn
• Min.Ground Clearance：430mm
• Engine Power：<74kw
• Scraper Type：Tractor-Scraper
• Load and Unload Method：Front Discharge
• Color：Yellow
• Usage：Handling Block Material
• Transport Package：1)CKD Package: The Machine Is Packaged in 2 Pieces
• Specification：8890*3030*3500,mm
• Trademark：CHHGC
• Origin：Henan, China (Mainland)
• HS Code：84295100
• Production Capacity：200 Units Per Month

DescriptionSpecificationUnitRated Power175kwOverall dimension(L x W x H)8890x3030x3500mm Operating weight28220kgMax. lifting height(Forks at level)3540mmMax. Load in Max. Lifting height (back the fork)19400/3780kg/mmRated loader24000/1800kg/mmCalibration load(Closed state of fork)23000/2200kg/mmTipping load -- Straight24000kg Bucket capacity2.3m3Dimensions of fork(L x W x H)1500x230x110mm Load center distance700mmDistance of fork (Lateral)1280mmWheel base3600mm Tread2300mm Turning angle±35°Max. traction force182kN Max. Climbing Gradient30°Turning radius7350mm Min. Ground clearance430mmHaul location height(Ground clearance of material)300mm Fuel tank capacity380LHydraulic oil tank capacity380LSpecification of tyreFront wheel26.5-25--Rear wheel26.5-25

Our Products

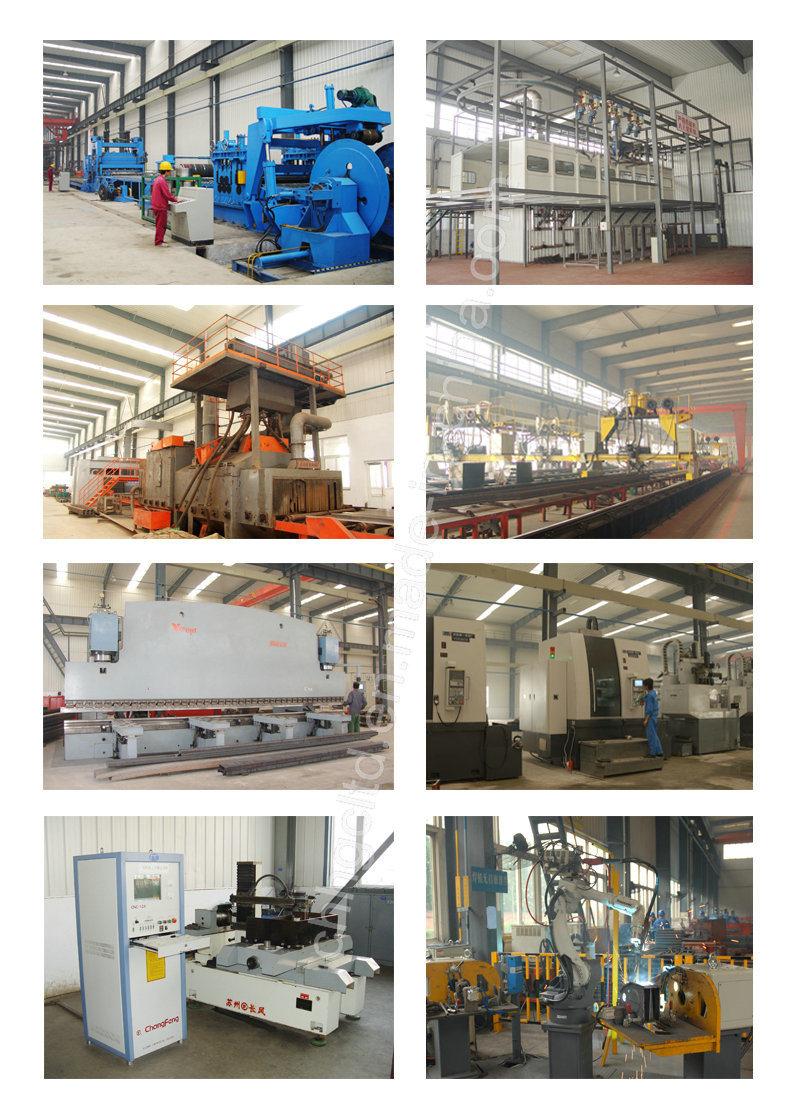

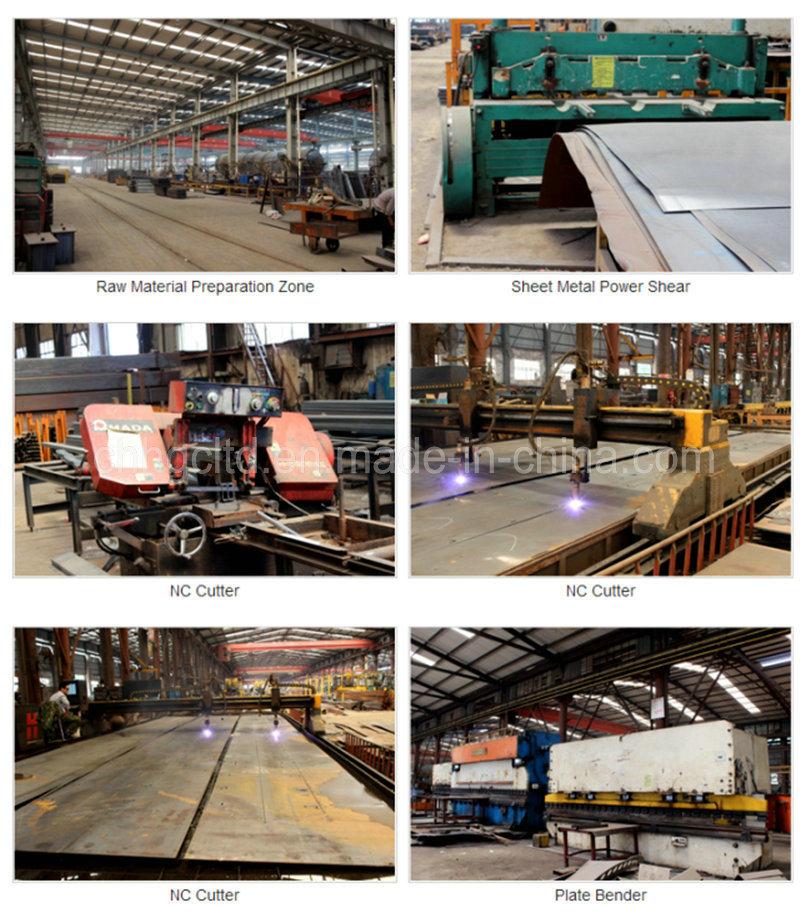

Workshop



Advantages

WEICHAI ENGINE:
Weichai engine performs well in all aspects like reliability, dynamic. Weichai has offices around world, such as Brazil, Iran, India, Russia, Thailand, South Africa, America, and so on. Good after-sales service.

Fork:
1. Our fork is made by round steel bar through forging technology, which need much complicated processing flow and higher cost. The Round Steel Bar needs more forging times than Square Steel Bar to be fork, so the Round Steel Bar has higher density, and toughness is better and more durable.
2. Enlarged forks and fork arm carrier, which good ensure the big block is not slided easily.

Driver Cab:
1. Installed air-condition, you can enjoy a nice working environment no matter weather is hot or cold.
2. Luxurious driver cab with large corner windscreen to ensure wide and clear vision.

Tires:
The front tires are steel-wire tire,
The steel-wire tire is special designed for heavy machine with special material, such as steel wire or fiber glass, which is wear resistance, good heat dissipation, explosion-proof and very durable.

PARKER PIPE:
High Pressure Hydraulic Hose and Fittings
We use American "PARKER". Apart from excellent high-pressure performance, the multi-spiral hose and fittings range offers the following advantages:
1) Specially engineered shells guarantee optimum compression and grip of the fitting on the hose No-Skive design eliminates the need to remove the hose cover before crimping;
2) Manufactured from a single piece of high-grade steel, Parker monobloc fittings eliminate potential leak paths;
3) Available with high abrasion resistant TC or ST covers, prolonging hose life;
4) Low volumetric expansion at maximum working pressure;
5) Wide fluid compatibility;
6) Made according to ISO, EN and SAE standards.


Why us?

1)A professional international sales team, which enable us to turn inquiries into final products and export them to numerous countries and regions without barriers;
2) A well managed quality control system to customize on clients requirements. We can design according to customers usage invironment.
3)Unparalleled after sales service


Packaging and Shipping

1. All the wheel loaders will be made anti rust before shipment
2. Different shipping method for different situation, Ro-Ro Vessel, Bulk Vessel, Flat-Rack, Container, etc
3. Shipment tracking service


Our Services

1.Reply your inquiry in 24 working hours.
2.Experienced staffs answer all your questions in professional and fluent English.
3.Customized design is available. OEM is welcome.
4.Exclusive and unique solution can be provided to our customer by well-trained and professional engineers and staffs.
5.Special discount and protection of sales area provided to your distributor.
6.Do the best reliable heavy-duty earth-moving machinery in China.
7.Warranty period is 1-year or 2000 working hours against Bill of Lading.
8.ROPS cab


FAQ

1. How about the products range do you produce ?

We are specilized in producing wheel loaders cover 0.8ton to 5tons. Model: CHHGC608,CHHGC610,CHHGC620,CHHGC630,HH10,ect. producing forklift with 2tons, 3tons, 4tons, 5tons, load capacity.

2. Which brand engine do you have for ?

We company choose good quality engine for , Changchai, Xichai, Weichai Power engine / cummins engine / Deutz diesel engine and so on optional.

3. What advantages of your products and company?

1.)adjusting design are available from us, to adapt the market and using environment better, and help customers gain more competitions in your market.
2.) ROPS cabin, double-layer thick cab, more strong and resistant
3.) adjusting steering wheel and adjusting seat, more comforable drive environment for driver
4.) All of our products passed the strict test before sale to customers
