• Model NO.：CHHGCC2018
• Certification：ISO9001: 2000, CE
• Condition：New
• Operating Weight(Kg)：1800
• Grade Ability：30
• Drum Diameter：550mm
• Turning Angle：30c
• Wheelbase：1360mm
• Diesel Speed：3000 R,Min
• Transport Package：Standard Export Packing
• Specification：2090x1170x2335mm
• Trademark：CHHGC
• Origin：China
• HS Code：8429401900
• Production Capacity：5000units , 500 Unit,Units Per Month

Basic Info.

Model NO. CHHGCC2018 Certification ISO9001: 2000, CE Condition New Operating Weight(Kg) 1800 Grade Ability 30 Drum Diameter 550mm Turning Angle 30c Wheelbase 1360mm Diesel Speed 3000 R/Min Transport Package Standard Export Packing Specification 2090x1170x2335mm Trademark CHHGC Origin China HS Code 8429401900 Production Capacity 5000units / 500 Unit/Units Per Month

Product Description

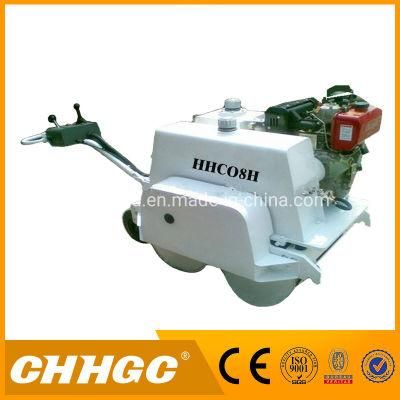

1.8 Ton Hydraulic Double Drum Mini Road Roller Vibratory Small Roller Compactor


Description

1.12 months warranty
2.Free spare parts within warranty
3.CUMMINS engine

---Application
CHHGCC2018 Hydraulic double drum vibratory roller is applicable for maintenance of municipal roads and high ways, as well as the compaction of the building construction, stadium and other industrial sites.


Specifications


Model	Unit	CHHGCC2018
Operating mass	Kg	1800
Travel speed	Km/h	0-7
Diesel model		EV80
Rated power	KW	12
Diesel speed	r/min	3000
Ground clearance	mm	230
Static linear load	N/cm	90/90
Grade ability	%	30
Turning angle	°	30
Vibration amplitude	mm	0.4
Vibration frequency	HZ	50
Centrifugal force	KN	18×2
Overall dimension	mm	2090×1170×2335
Drum diameter	mm	550
Drum width	mm	1000
Water tank capacity	L	100
Wheelbase	mm	1360
Turning radius	mm	1780



Main Features

1. Full hydraulic drive, double wheels drive, double drums vibration, hydraulic steering, with optimal function/price ratio and reliable performance.
2. CVT (continuously variable transmission),can change the travel speed freely.
3. Both front and rear drums have installed mud scrapers and water sprinkling devices, the advanced sprinkling system can make both intermittent and continuous sprinkling, greatly improve and expand the machine construction condition.
4. Equipped with EV80 diesel engine, more powerful, more stable ,low fuel consumption ,high efficiency, excellent economic performance ,more convenient for maintenance and repair.
5. Design of compact structure and small volume, ensure small turning radius, strong grade ability, and flexible performance .Can be adopted on narrow sites, safety and reliability, be characterized by best economic performance--little investment and speedy return.


Our Products

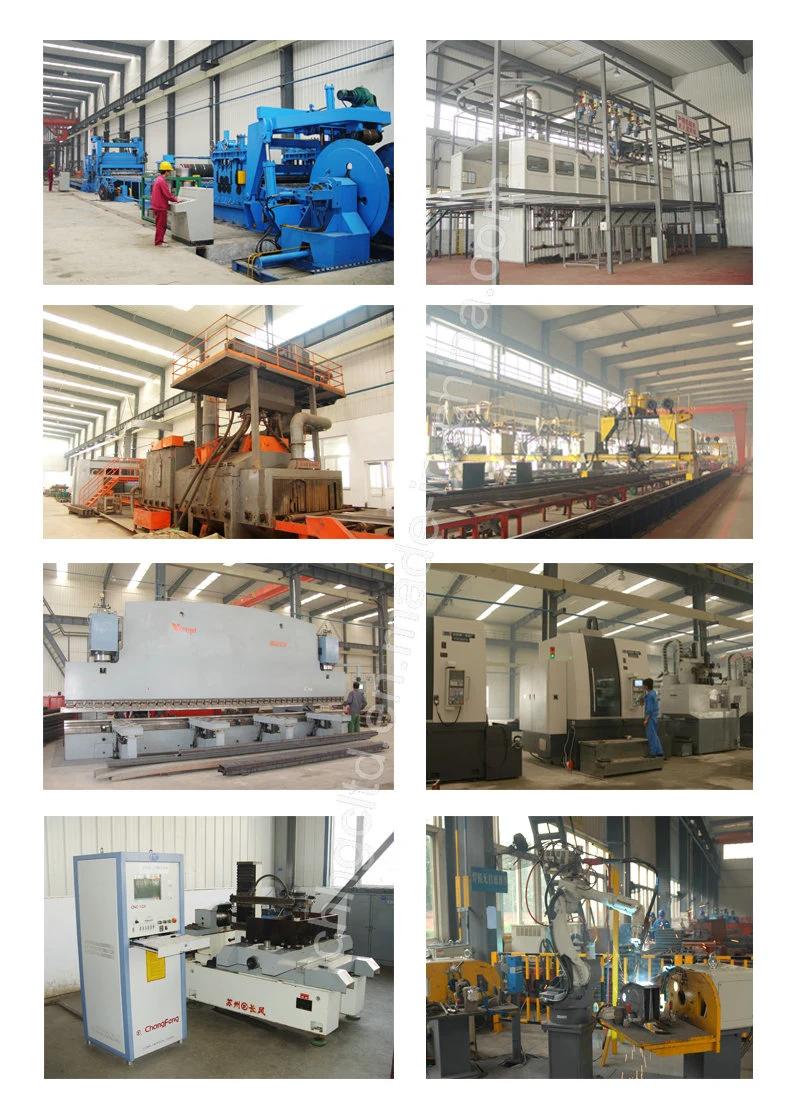

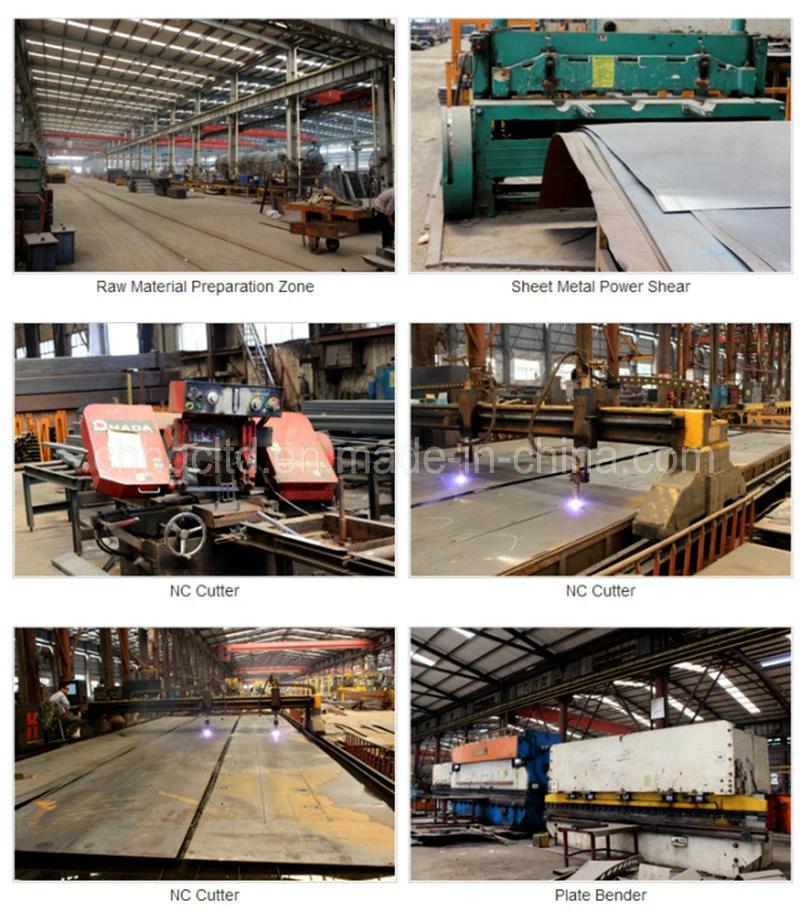

Workshop
