• Model NO.：SWL90F
• Type：Large Loader
• Bucket Capacity：5.0 M3
• Engine Power：147~515kw
• Load and Unload Method：Front Discharge
• Color：Yellow
• Scraper Type：Front End Loader
• Transport Package：Nude
• Specification：operating weight 29500kg
• Trademark：SINOWAY
• Origin：China
• HS Code：84314990
• Production Capacity：10 PCS,Month

Basic Info.

Model NO. SWL90F Type Large Loader Bucket Capacity 5.0 M3 Engine Power 147~515kw Load and Unload Method Front Discharge Color Yellow Scraper Type Front End Loader Transport Package Nude Specification operating weight 29500kg Trademark SINOWAY Origin China HS Code 84314990 Production Capacity 10 PCS/Month

Product Description

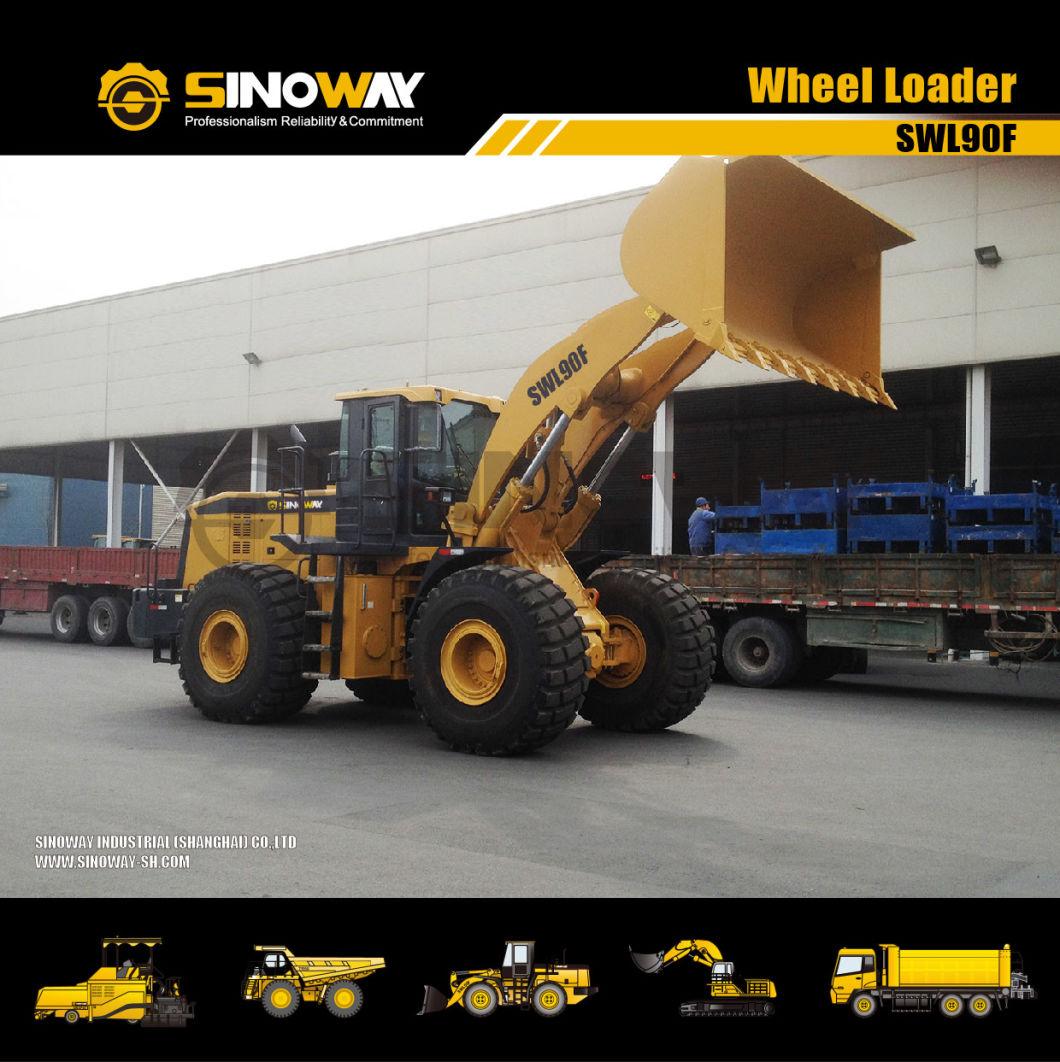

Highlights for SWL90F Wheel Loaders
Heavy duty powerful engine
At the heart of our exceptional powertrain lies the latest Cummins engine. This power house has been designed to deliver impressive acceleration and torque output, along with a serious bucket filling and lifting capability which greatly increases cycle times and earning potential.

Heavyweight Combination
Faster cycle times are made easy with the machine's power combination. The engine is teamed up with a four speed, ZF smooth shifting transmission. This combination optimizes power and fuel efficiency, day after day, increasing bucket breakout force and loading capability. To this, we've added larger, high capacity axles which make light work of the toughest terrain and intelligent hydraulics for low-engine speed performance, quick steering response and rapid boom up speeds. We put this power right in your operator's hands with simple and intuitive controls designed to get the job done faster and more effectively every cycle.

The long life of capability of lifting
Our new buckets load heavy materials easier and faster; saving you time, lowering fuel consumption and reducing damage. In tests, our new buckets increase production by14% and lower fuel consumption by 15% per hour. In addition, damage to the bucket and teeth can be greatly reduced thanks to the stronger anti-wear blade.

German ZF axle performance
Stability, traction and weight loading capability are the 3 key essentialsfor axles in heavy applications. The new ZF axles with limited-slip differentials excel in handling heavy loads up to 44T static and 25T
dynamic in tough terrain. The intelligent, responsive power combined with excellent traction and stability give operators a real feeling of confidence on any ground - soft and shifting or hard and unforgiving.

New Z-Bar enhancements
Careful distribution of stress loads increases the Z-bar's tolerance significantly. Hinge pins and lift arm mounting plates have been strengthened, while optimized Z-Bar geometry improves bucket breakout
force, operator visibility, loading stability and speed.

Engine
Model	Cummins
Type	Six-cylinder,air to air cooled,turbocharged,electronic injection
Rated power	250KW
Rated speed	2100rpm
Main Technical Specification
Rated load	9000Kg
Operating weight	29500Kg
Rated bucket capacity	5.0m3
Max. breakout force	260KN
Max. dump clearance	3300mm
Dump reach	1470mm
Dump angle at any position	40o
Digging depth (with bucket bottom horizontal)	250mm
Min. turning radius	6200mm
Lifting time of bucket	≤7.0s
Lowering time of bucket	≤4.3s
Dumping time	≤1.2s
Implement Hydraulic System
Model of oil pump	Gear pump
System pressure	20MPa
Model of multi-way directional valve	Rexroth
Priority valve	Rexroth
Axle And Tyre
Axle model	ZF
Type of final reducer	Single stage planetary
Max. tractive force	245KN
Tyre size	29.5R25
Steering System
Type	Double-action pistion
Model of steering pump	Gear pump
System pressure	19MPa
Articulated steering angle	40°(L/ R)
Transmission System
Torque Converter
Model	ZF
Type	3 elements, single stage
Cooling type	Pressure oil circulating
Gear box
Model	ZF
Type	Power shift
Gear shifts(Forward/Reverse)	F4/R3
Travelling speed(km/h)
Forward/Reverse I	7.0/7.0
Forward/Reverse II	11.6/11.6
Forward/Reverse III	24.5/24.5
Forward IV	35.5
Dimensions
Overall length(with bucket on ground)	9400mm
Overall width(to outside of wheels)	3500mm
Overall height(to the top of the cab)	3770mm
Bucket width	3500mm
Wheel base	3600mm
Tread	2460mm
Ground clearance	520mm
Service Capacities
Fuel tank	420L
Engine crank case	33L
Converter and gear box	64L
Hydraulic tank	340L
Braking System
Service brake	Full hydraulic
Emergency brake	Wet disc brake
Parking brake	Wet disc brake
