• Model NO.：LZ-5D
• Certification：ISO9001: 2000, CE, SGS
• Condition：New
• Color：Customised
• Max. Horizontal Conveying Distance：200m
• Suitable Mix Ratio(Cement/Sand)：≤1:3~5
• Max. Aggregate Size：Dia.15 mm
• Conveying Hose Inner Diameter：Dia.51 mm
• Operating Air Pressure：0.2-0.4MPa(29-58psi)
• Air Consumption：8-9m 3 ,Min(285-325cfm)
• Rotor Speed：11r,Min
• Transport Package：Plastic Wrap, Plywood Case, Free-Fumigation
• Specification：ISO, CE, SGS
• Trademark：Leadcrete
• Origin：China
• HS Code：84743100
• Production Capacity：5000 Sets,Year

Basic Info.

Model NO. LZ-5D Certification ISO9001: 2000, CE, SGS Condition New Color Customised Max. Horizontal Conveying Distance 200m Suitable Mix Ratio(Cement/Sand) ≤1:3~5 Max. Aggregate Size Dia.15 mm Conveying Hose Inner Diameter Dia.51 mm Operating Air Pressure 0.2-0.4MPa(29-58psi) Air Consumption 8-9m 3 /Min(285-325cfm) Rotor Speed 11r/Min Transport Package Plastic Wrap, Plywood Case, Free-Fumigation Specification ISO, CE, SGS Trademark Leadcrete Origin China HS Code 84743100 Production Capacity 5000 Sets/Year

Product Description

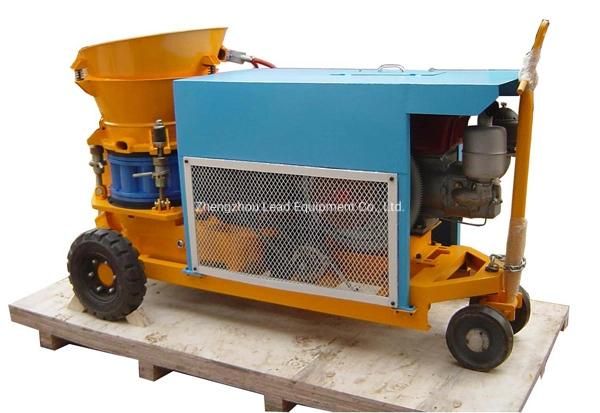

LZ-5D diesel eingine type spray concrete shotcrete machine

LZ-5 shotcrete machine is medium-sized shotcrete machine for the processing of dry mix. And it is widely used by so many contractors. LZ-5 shotcrete machine can be used for tunneling, mining operations, hydropower projects and hillside protection, etc.
LZ-5 shotcrete machine is available in following versions:
Air motor driver or electric motor combined with skid or rail-wheel
Basic: Electric drive can be combined with tyre chassis
Extended (optional): Electric motor drive with variable speed gearbox, air motor drive or diesel drive combined with Skid or Rail-wheel.


1. LZ-5 shotcrete machine features:
Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life

type	diesel engine
Output Capacity	2-5m 3 /h
Max. Horizontal Conveying Distance	200m
Suitable Mix Ratio(Cement/Sand)	≤1:3~5
Water cement ratio	<0.4
Max. Aggregate Size	Dia.15 mm
Conveying Hose Inner Diameter	Dia.51 mm
Operating air Pressure	0.2-0.4MPa(29-58PSI)
Air Consumption	8-9m 3 /min(285-325CFM)
Material Charging Height	1.1m
Rotor Speed	11r/min
Diesel Engine	10hp,2200rpm, diesel
Diesel Engine Starting	By hand
Overall Dimension(length×width×height)	1.55×0.75×1.2m
Net Weight	770kg
