• Model NO.：LDB100,4
• Pump Type：Single Acting Pump with Three-Cylinder
• Model：Ldb100,4
• Plunger Diameter：55mm
• Pressure：4MPa
• Inlet Pipe Diameter：64mm
• Outlet Pipe Diameter：25mm
• Ratio(Water: Ash: Sand)：1: 2: 2
• Power：11kw
• Weight：350kg
• Dimension(L× W× H)：1300× 650× 9750mm
• Transport Package：Standard Export Packing
• Specification：ISO9001-2008&CE
• Trademark：leadcrete
• Origin：Henan China
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. LDB100/4 Pump Type Single Acting Pump with Three-Cylinder Model Ldb100/4 Plunger Diameter 55mm Pressure 4MPa Inlet Pipe Diameter 64mm Outlet Pipe Diameter 25mm Ratio(Water: Ash: Sand) 1: 2: 2 Power 11kw Weight 350kg Dimension(L× W× H) 1300× 650× 9750mm Transport Package Standard Export Packing Specification ISO9001-2008&CE Trademark leadcrete Origin Henan China Production Capacity 1000 Sets/Year

Product Description

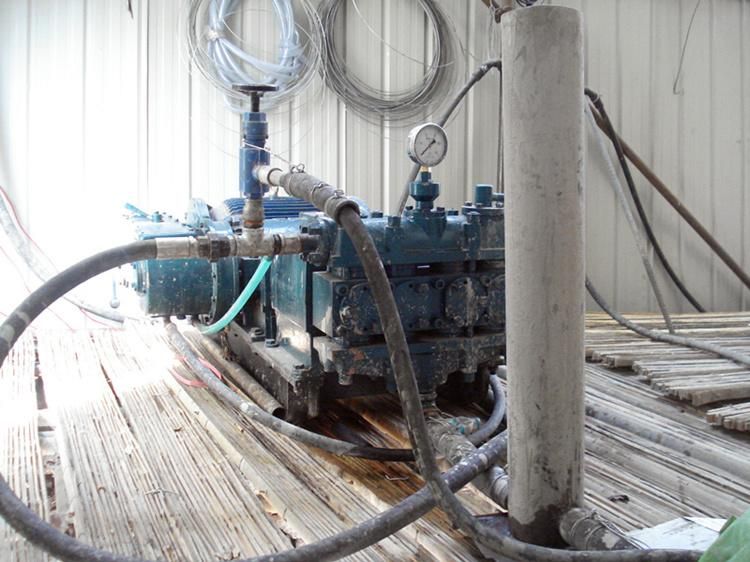

LDB100/4 anchoring grout pump




LDB100/4 anchoring grout pump are the special equipment which are applied in injecting cement paste and mortar in the project. They are mainly used in concretion grouting and anchor grouting for in the high slope and far distance. These pump have strongly adaptive abilities with largely density and grouting (diameter<2mm). They can be widely used in various foundation treatment projects. In addition, these pump also can be used in the drilling in the deep core as cement pump. The pumps are single acting reciprocating type with three cylinder, the displacement of the pumps is constant and the pressure is steady; The constitution is compact and the capacity is small and light. The plunger piston, clack seat and lock ring and some wearing parts have adopted wear-resistant material, so the life-span have greatly improved and the nature is credible.
Anchoring grout pump feature:
1. Maintenance and changing the components are convenient.
2. Adopting interchangeable parts, such as link lever in the car, bearing bush, sheet steel in the autocycle, friction disc and so on.
3. Plunger cavity is semi-closed, so it can use oil cooling and water cooling.
4. The construction is compact, so the movement is easy.

Type	single acting pump with three-cylinder
Model	LDB100/4
Plunger diameter	55mm
output	100L/min
pressure	4Mpa
inlet pipe diameter	64mm
outlet pipe diameter	25mm
ratio(water: ash: sand)	1: 2: 2
power	11kw
weight	350kg
dimension(L× W× H)	1300× 650× 9750mm
