• Model NO.：LDB100,10Q
• Model：Ldb100,10q
• Plunger Diameter：63mm
• Output：100L,Min
• Pressure：10MPa
• Ratio(Water:Ash:Sand)：1:2:2
• Inlet Pipe Diameter：64mm
• Outlet Pipe Diameter：32(25)Mm
• Motor Power：18.5kw
• Weight：650kg
• Dimension(L*W*H)：1700*742*685mm
• Transport Package：Standard Export Packing
• Specification：ISO9001-2008&CE
• Trademark：leadcrete
• Origin：Henan China
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. LDB100/10Q Model Ldb100/10q Plunger Diameter 63mm Output 100L/Min Pressure 10MPa Ratio(Water:Ash:Sand) 1:2:2 Inlet Pipe Diameter 64mm Outlet Pipe Diameter 32(25)Mm Motor Power 18.5kw Weight 650kg Dimension(L*W*H) 1700*742*685mm Transport Package Standard Export Packing Specification ISO9001-2008&CE Trademark leadcrete Origin Henan China Production Capacity 1000 Sets/Year

Product Description

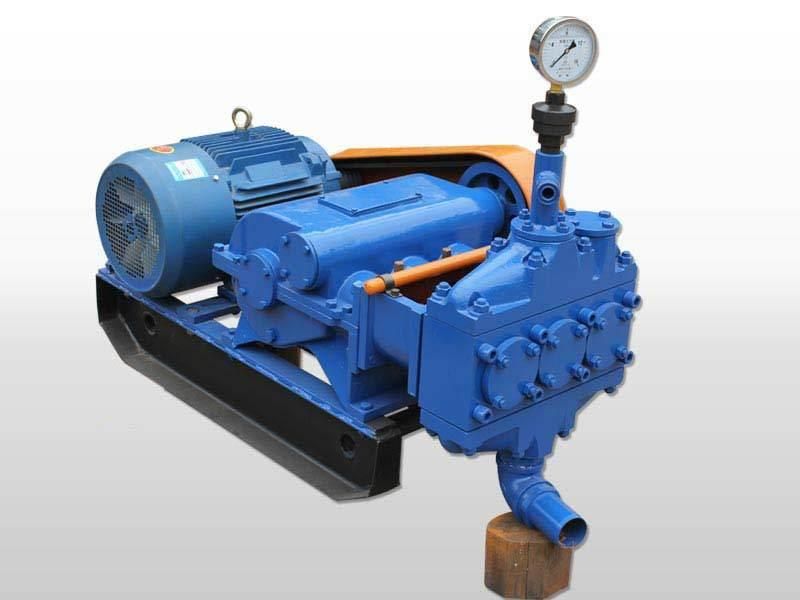

LDB100/10Q single acting grout pump

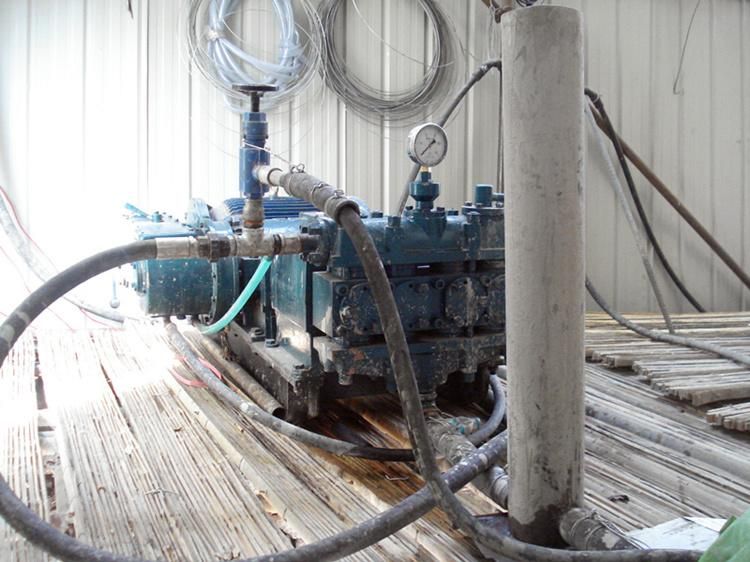

LDB100/10Q single acting grout pump(or grouting injection pump)is the special equipment which are applied in injecting cement paste and mortar in the injecting project. They are mainly used in grouting curtain and concretion grouting for dam foundation. These pump have strongly adaptive abilities with largely density and high pressure grouting and injecting mortar (diameter<2mm). They can be widely used in various foundation treatment projects. In addition, these pump also can be used in the anchor grouting in the high slope and far distance.

Single acting grout pump feature:
1. Maintenance and changing the components are convenient.
2. Adopting interchangeable parts, such as link lever in the car, bearing bush, sheet steel in the autocycle, friction disc and so on.
3. Plunger rod and plunger head are the dismountable joint, so it can avoid serous fluid and water enter into the compound box.
4. The struction of planet reducer device is compact, so it is convenient and durable.

Single acting grout pump technical sheet:

Type	single acting pump with three-cylinder
Model	LDB100/10Q
Plunger diameter	63mm
output	100L/min
pressure	10Mpa
inlet pipe diameter	64mm
outlet pipe diameter	32(25)mm
ratio(water: ash: sand)	1: 2: 2
power	18.5kw
weight	650kg
dimension(L× W× H)	1700× 742× 685mm
