• Model NO.：LDB180,10
• Model：Ldb180,10
• Pump Type：Single Acting Pump with Three-Cylinder
• Plunger Diameter：63(55)Mm
• Rotating Speed：237r,Min
• Output：150L,Min
• Pressure：6MPa
• Ratio(Water:Ash:Sand)：1:2:2
• Motor Power：18.5kw
• Inlet Pipe Diameter：64mm
• Outlet Pipe Diameter：25(32)Mm
• Transport Package：Standard Export Packing
• Specification：ISO9001-2008&CE
• Trademark：LEC
• Origin：Henan China
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. LDB180/10 Model Ldb180/10 Pump Type Single Acting Pump with Three-Cylinder Plunger Diameter 63(55)Mm Rotating Speed 237r/Min Output 150L/Min Pressure 6MPa Ratio(Water:Ash:Sand) 1:2:2 Motor Power 18.5kw Inlet Pipe Diameter 64mm Outlet Pipe Diameter 25(32)Mm Transport Package Standard Export Packing Specification ISO9001-2008&CE Trademark LEC Origin Henan China Production Capacity 1000 Sets/Year

Product Description

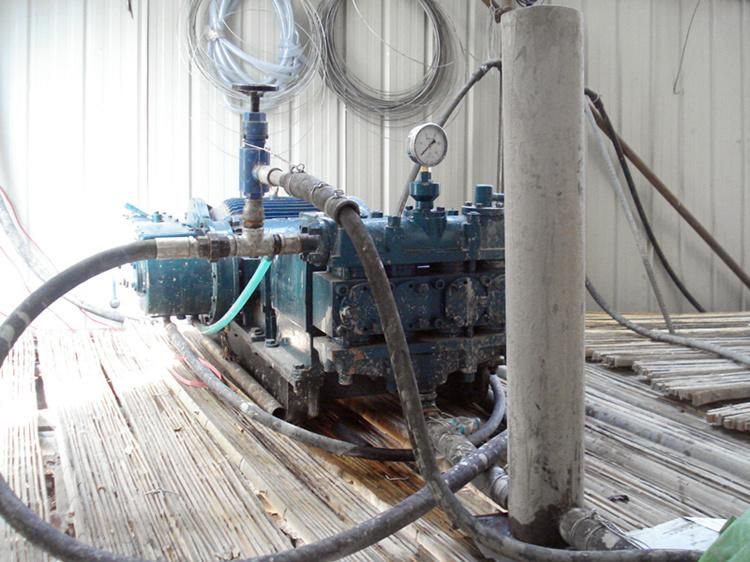

LDB180/10 electric grout pump



LDB180/10 electric grout Pump is a kind of special equipment which are applied in injecting cement paste and mortar in the injecting project. They are mainly used in grouting curtain, concretion grouting, anchor grouting and transporting grout for large amount and long distance and so on. This pump have strongly adaptive abilities with large consistencyand high pressure grouting curtain and injecting mortar (diameter<2mm). They can be widely used in various foundation treatment projects. In addition, these pump also can be used in the drilling in the deep core as cement pump, in transporting mortar in the high pressure spiral spurt works, and in the anchor grouting in the high slope and far distance as well.
Electric grout pump feature:
1. Maintenance and changing the components are convenient.
2. The four-gear variance can satisfy methods of multiplexing and technology and the ratio of efficiency to price is optimum to save money.
3. Adopting interchangeable parts, such as link lever in the car, bearing bush, sheet steel in the autocycle, friction disc and so on.
4. The build-in enclosed construction which combined the clutch and the gearbox have strongly adaptability in the hard condition.

Type	single acting pump with three-cylinder
Model	LDB100/20
Plunger diameter	63(55)mm
rotating speed	237r/min	184r/min	130r/min	83r/min
output	180(150)L/min	140(110)L/min	100(80)L/min	70(50)L/min
pressure	3(6)Mpa	6(9)Mpa	8(11)Mpa	10(14)Mpa
inlet pipe diameter	64mm
outlet pipe diameter	25(32)mm
ratio(water: ash: sand)	1: 2: 2
power	18.5kw
weight	700kg
dimension(L× W× H)	1550× 850× 685mm
