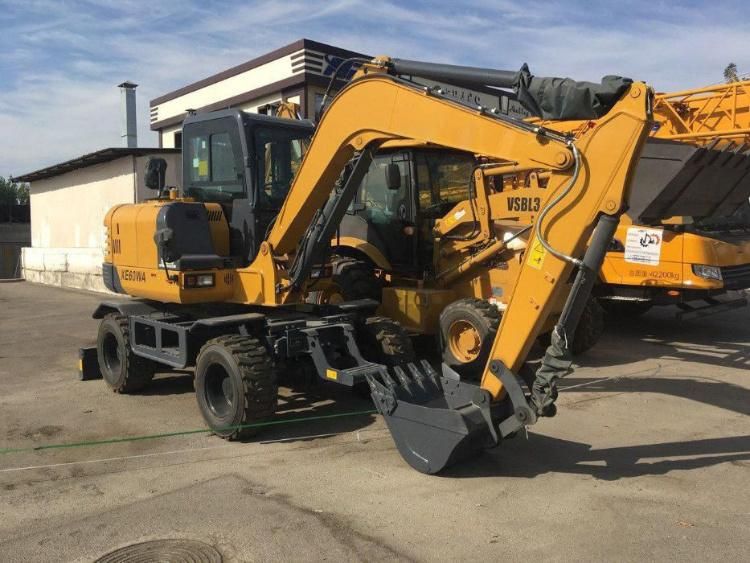

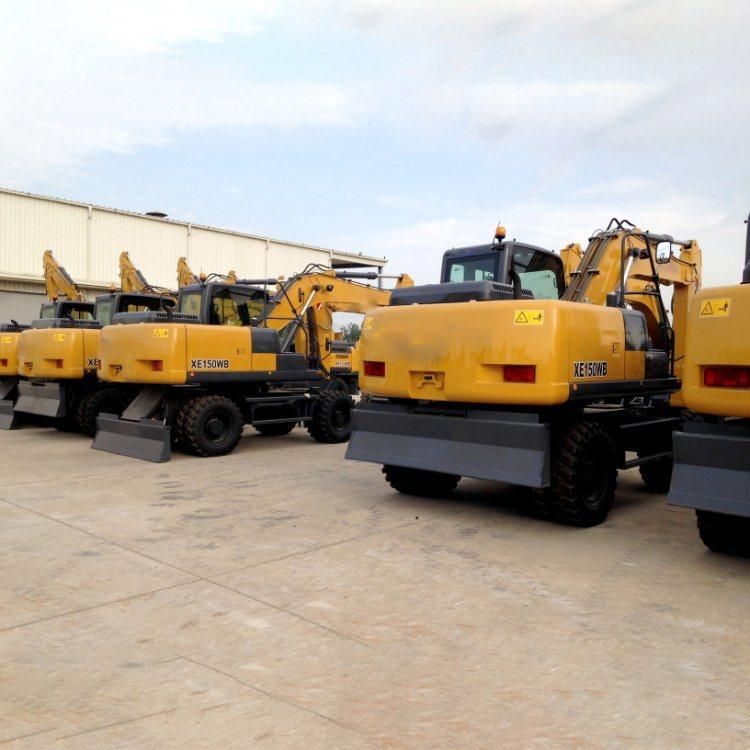

Hydraulic Excavator 15 Ton Mini Wheel Excavator Xe150wa
Cruking Engineering Equipment (Xiamen) Co., Ltd.- After-sales Service：Video Technical Support, Online Support
- Warranty：1 Year
- Type：Wheel Excavator
- Usage：Mining Excavator
- Bucket：Grab Shovel
- Transmission：Hydraulic Transmission
Base Info
- Model NO.：XE150WA
- Drive Type：Electric Drive
- Bucket Capacity：0.58cbm
- Size：Large-Scale
- Certification：CE, ISO9001: 2000
- Condition：New
- Outing Power of Engine：104,2000kw,R,Min
- Operating Weight：14000kg
- Max.Torque/Engine：586n.M
- Displacement：4.5L
- Fuel Tank Capacity：250L
- Rated Flow of Main Pump：2*160L,Min
- Pressure of Main Safety Valve：31.4,34.3MPa
- Hydraulic Tank Capacity：135L
- Slewing Speed：12r,Min
- Digging Capacity of Tucket：95kn
- Digging Capacity of Tucket Rod：72 Kn
- Min.Turning Radius：6500mm
- Rated Speed：11,33km,H
- Total Width of Chassis：2495mm
- Max. Digging Radius：7780mm
- Transport Package：Nude Packing
- Specification：7778*3305*3305mm
- Trademark：Crawler Excavator
- Origin：Jiangsu, China
- HS Code：8429521100
- Production Capacity：1000 Unit,Units Per Month
Description

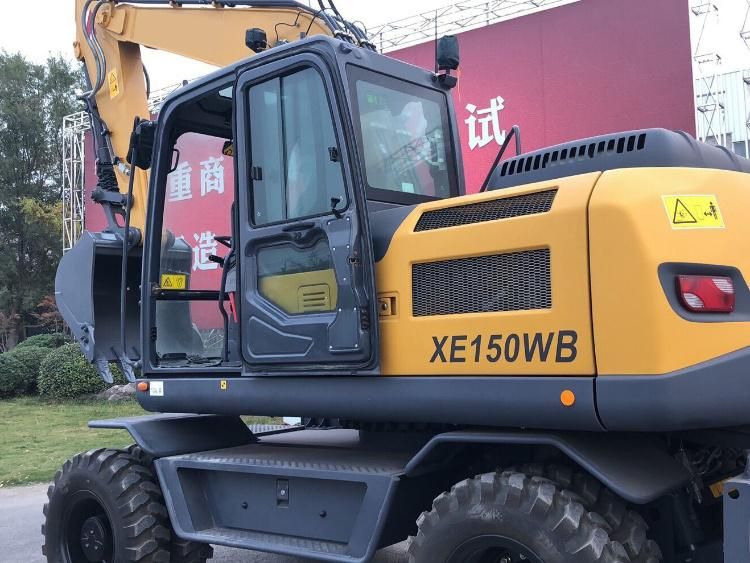

Product OverviewModel Unit XE150WB Engine Model / QSB 4.5 Outing Power Of Engine kW/r/min 104/2000 Operating Weight KG 14000 Max.torque/engine N.m 586 Displacement L 4.5 Fuel Tank Capacity L 250 Rated Flow of Main pump L/min 2*160 Pressure of Main Safety Valve Mpa 31.4/34.3 Hydraulic tank Capacity L 135 Slewing Speed r/min 12 Digging capacity of tucket KN 95 Digging capacity of tucket rod KN 72 Min.turning radius mm 6500 Rated speed km/h 11/33 Gradient capacity % 70 A Todal length mm 7778 B Total width mm 3305 C Total heigth mm 3305 Counterweight Ground Clearance mm 1230 Min.Ground Clearance mm 355 Min.tail swing radius mm 2300 Wheelbase mm 2800 Track gauge mm 1920 Total width of chassis mm 2495 Distance between front axle and truning center mm 1700 Hood height mm 2430 The maximum digging depth of dozer mm 105 Max. digging radius mm 7780 Min. swing radius mm 7570 Max. digging height mm 8190 Max. dumping height mm 5855 Max. digging depth mm 4630 Maximum depth cut for 2240mm(8 ft) level bottom mm 4325 Nax. vertical wall digging depth mm 4150
