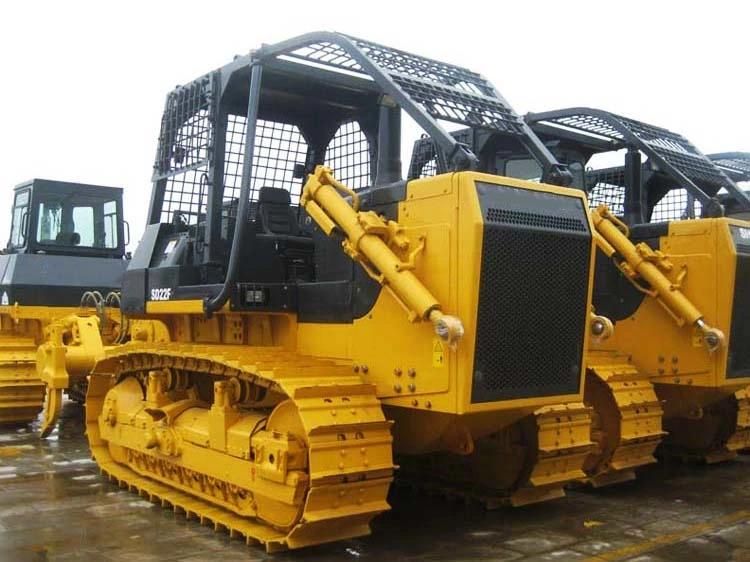

220HP Shantui Forest Crawler Bulldozer SD22f
Cruking Engineering Equipment (Xiamen) Co., Ltd.- After-sales Service:Video Technical Support, Online Support
- Warranty:1 Year
- Type:Universal Type
- Transmission:Hydraulic Transmission
- Walking Mode:Crawler
- Load and Unload Method:Front Discharge
Base Info
- Model NO.:SD22F
- Engine Power:74~147kw
- Certification:CE, ISO9001: 2000
- Condition:New
- Color:Yellow
- Operatiing Weight (Kg):23450
- Rated Horsepower (Kw/HP):175,1800
- Minimum Turning Radius (mm):3300
- Ground Pressure (Kpa):66
- Track Gauge (mm):2000
- Shoe Width (mm):560
- Track Length on Ground (mm:2730
- Number of Shoes (Each Side):38
- Carrier Rollers (Each Side):2
- Track Rollers (Each Side):6
- Pressure (MPa):14
- Fuel Tank Capacity (L):450
- Working Hydraulic Tank Capacity (L):110
- Blade Height (mm):1315
- Blade Capacity:6.4cbm
- Transport Package:Nude Packing
- Specification:5495*3725*3402 mm
- Trademark:Crawler Bulldozer
- Origin:Shandong, China
- HS Code:8429119000
- Production Capacity:1000 Unit,Units Per Month
Description
Product OverviewProduct ParamentersParameter name SD22 (Standard version) SD22C (Coal version) SD22W (Rock version) SD22F (Forestry version) Operating weight (Kg) 23450 24000 23600 24700 Ground pressure (kPa) 66 57.5 66 64 Engine Engine model WP12/QSNT-C235 WP12/QSNT-C235 QSNT-C235 QSNT-C235 Rated power/rated speed (kW/rpm) 175/1800 175/1800 175/1800 175/1800 Overall dimensions Overall dimensions of machine (mm) 5495*3725*3402 5820*4200*3402 5495*3725*3402 5495*3725*3402 Driving performance Forward speed (km/h) F1:0-3.6 F2:0-6.5 F3:0-11.2 F1:0-3.6 F2:0-6.5 F3:0-11.2 F1:0-3.6 F2:0-6.5 F3:0-11.2 F1:0-3.6 F2:0-6.5 F3:0-11.2 Reversing speed (km/h) R1:0-4.3 R2:0-7.7 R3:0-13.2 R1:0-4.3 R2:0-7.7 R3:0-13.2 R1:0-4.3 R2:0-7.7 R3:0-13.2 R1:0-4.3 R2:0-7.7 R3:0-13.2 Chassis System Center distance of track (mm) 2000 2000 2000 2000 Width of track shoes (mm) 560/610/660 660 560/610/660 610/660 Ground length(mm) 2730 2730 2730 2730 Tank capacity Fuel tank (L) 450 450 450 450 Working device Blade type Straight tilting blade , Angle Blade, U-shaped Blade and oriemaci-U blade Coal blade Rock straight tilting blade, rock angle blade, rock U-blade, and rock oriemaci-U blade Straight tilting blade , Angle Blade, U-shaped Blade and oriemaci-U blade Digging depth (mm) 540 538 540 540 Ripper type Single-shank three-shank Single-shank three-shank Single-shank three-shank Single-shank three-shank Ripping depth (mm) 695 (Single-shank) and 666 (Three-shank) 695 (Single-shank) and 666 (Three-shank) 695 (Single-shank) and 666 (Three-shank) 695 (Single-shank) and 666 (Three-shank)
