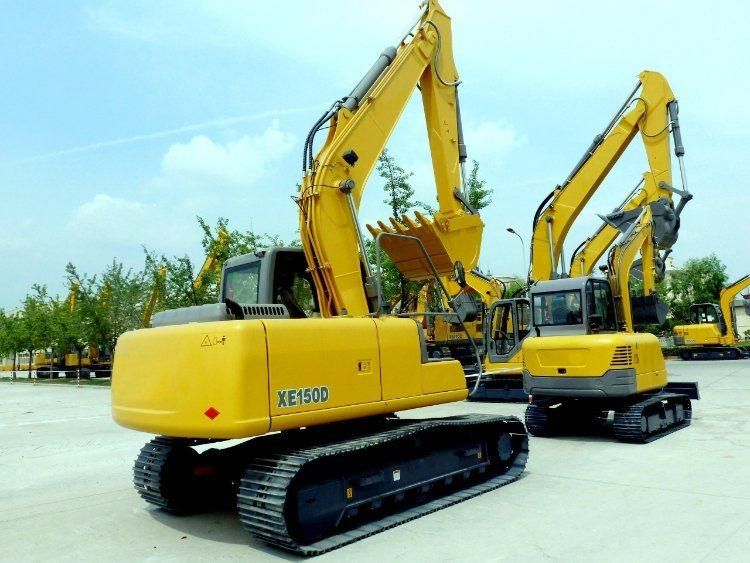

• Model NO.：XE150D
• Drive Type：Electric Drive
• Bucket Capacity：0.32-0.71 Cbm
• Size：Large-Scale
• Certification：CE, ISO9001: 2000
• Condition：New
• Operatiing Weight：14600kg
• Rated Power/Speed：93,2200kw,Rpm
• Maximum Torque/Speed：500,1300n.M
• Displacement：3.76L
• Walking Speed：5.3,3.2km,H
• Swing Speed：70r,Min
• Ground Pressure：37kpa
• Bucket Digging Force：106.9kn
• Arm Digging Force：73.4kn
• Max. Digging Height：8649mm
• Max. Dumping Height：6185mm
• Max. Digging Depth：5535mm
• Max. Vertical Wall Digging Depth：4697mm
• Max. Digging Radius：8304mm
• Min. Swing Radius：2445mm
• Transport Package：Nude Packing
• Specification：7795*2590*2900mm
• Trademark：Crawler Excavator
• Origin：Jiangsu, China
• HS Code：8429521200
• Production Capacity：1000 Unit,Units Per Month

Product OverviewProduct ParamentersDescriptionUnitParameter valueOperating weightkg14600Bucket capacitym³0.32~0.71EngineModelEngineimported QSF3.8StyleDirect injection---√Four strokes---√Water cooling---√Turbo-charging---√Air to air intercooler---√No. of cylinders---4Output powerkW/ r/min93/2200torque/speedN.m500/1300DisplacementL3.76Main performanceTravel speed(H/L)km/h5.3/3.2Gradeability%70Rotary speedr/min11.7Ground pressurekPa37Bucket digging forcekN106.9Arm digging forcekN73.4Hydraulic systemMain pump--K7V63DTPRated flow of main pumpL/min2×123.5Main safety valve pressureMPa34.3/37Pressure of pilot systemMPa3.9Oil CapacityFuel tank capacityL260Hydraulic tank capacityL105Engine oil capacityL11Appearance sizeOverall lengthmm7795Overall widthmm2590Overall heightmm2900Width of platformmm2490Length of crawlermm3658Overall width of chassismm2590Width of crawlermm600Wheel base of crawlermm2910Crawler gaugemm1990Clearance under counterweightmm948Min. ground clearancemm477Min. rear-end swing radiusmm2325Working scopeMax. digging heightmm8649Max. dumping heightmm6185Max. digging depthmm5535Max. digging depth at the range of level 8 feetmm5324Max. vertical wall digging depthmm4697Max. digging reachmm8304Min. swing radiusmm2445WorkerStandardLength of boommm4600Length of armmm2520Bucket capacitym³0.61OptionalLength of boommm Length of armmm2100/3010Bucket capacitym³0.32/0.4/0.71 0.52Product Configuration
