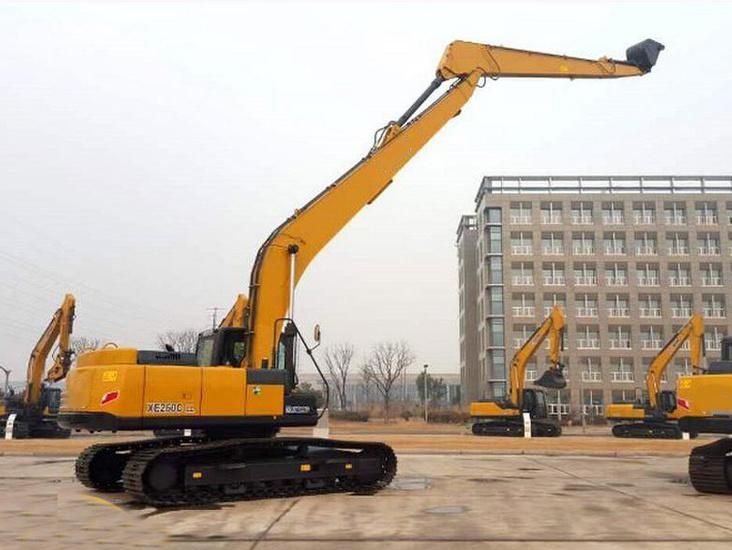

Good Performance 26 Ton Heavy Longer Arm Excavator Xe260cll
Cruking Engineering Equipment (Xiamen) Co., Ltd.- After-sales Service:Video Technical Support, Online Support
- Warranty:1 Year
- Type:Crawler Excavator
- Usage:Mining Excavator
- Bucket:Grab Shovel
- Transmission:Hydraulic Transmission
Base Info
- Model NO.:XE260CLL
- Drive Type:Electric Drive
- Bucket Capacity:0.4cbm
- Size:Large-Scale
- Certification:CE, ISO9001: 2000
- Condition:New
- Operatiing Weight:27500kg
- Rated Power/Speed:128.5,2100kw,Rpm
- Max. Digging Height:13800mm
- Max. Dumping Height:11414mm
- Max. Digging Depth:14915mm
- Max. Vertical Digging Depth:13917mm
- Max. Digging Radius:18258mm
- Min. Swing Radius:6740mm
- Swing Speed:12.1r,Min
- Bucket Digging Force:76.3kn
- Arm Digging Force:44.5kn
- Maximum Tractive Force:193kn
- Main Safety Valve Pressure:34.3,37MPa
- Travel System Pressure:34.3MPa
- Swing System Pressure:23MPa
- Transport Package:Nude Packing
- Specification:13900*3390*3360mm
- Trademark:Crawler Excavator
- Origin:Jiangsu, China
- HS Code:8429521200
- Production Capacity:1000 Unit,Units Per Month
Description
Model
Unit
XE260CLL
Operating weight
Kg
27500
Bucket capacity
m³
0.4
Engine
Model
/
CC-6BG1TRP-08
Rated power/speed
kw/rpm
128.5/2100
Maximum torque/speed
N.m
637/1800
Displacement
L
6.494
Main performance
Travel speed(H/L)
km/h
6.0/4.0
Swing speed
r/min
12.1
Gradeability
°
≤35
Ground pressure
kPa
40.8
Bucket digging force
kN
76.3
Arm digging force
kN
44.5
Maximum tractive force
kN
193
Hydraulic system
Main pump
/
/
Rated flow of main pump
L/min
2×246
Main safety valve pressure
MPa
34.3/37
Travel system pressure
MPa
34.3
Swing system pressure
MPa
23
Pilot system pressure
MPa
3.9
Oil Capacity
Fuel tank capacity
L
400
Hydraulic tank capacity
L
240
Engine oil capacity
L
25
Appearance size
Overall length
mm
13900
Overall width
mm
3390
Overall height
mm
3360
Width of platform
mm
2830
Track length
mm
4640
Overall width of chassis
mm
3390
Track shoe width
mm
800
Wheel base of crawler
mm
3842
Track gauge
mm
2590
Counterweight clearance
mm
1050
Min. ground clearance
mm
470
Min. tail swing radius
mm
2985
Track height
mm
927
