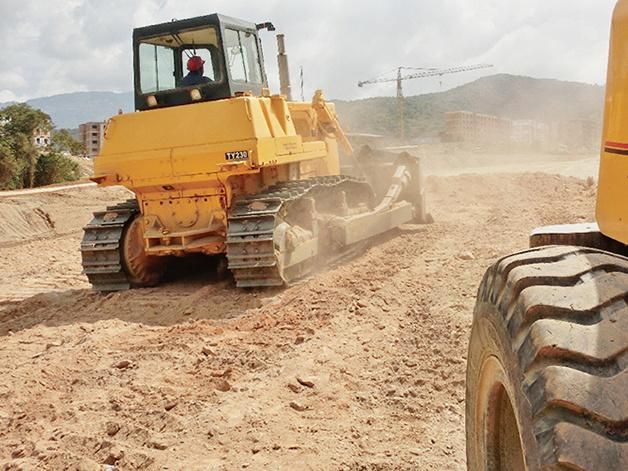

230HP U-Blade Track Type Bulldozer Ty230

Cruking Engineering Equipment (Xiamen) Co., Ltd.
  • After-sales Service：Video Technical Support, Online Support
  • Warranty：1 Year
  • Type：Universal Type
  • Transmission：Hydraulic Transmission
  • Walking Mode：Crawler
  • Load and Unload Method：Front Discharge

Base Info

  • Model NO.：TY230
  • Engine Power：74~147kw
  • Certification：CE, ISO9001: 2000
  • Condition：New
  • Color：Yellow
  • Operating Weight(Kg)：17900
  • Min.Ground Clearance(mm)：400
  • Min.Tuming Radius(M)：3.2
  • Ground Pressure(MPa)：0.071
  • Track Gauge(mm)：1880
  • Max.Pulling Force(Kn)：142
  • Grade Ability：30degree
  • Blade Capacity：8.6cbm
  • Max.Lift(mm)：1095
  • Max.Depth(mm)：545
  • Max.Tilt Adjustment(mm)：400
  • Weight of Blade(Kg)：2560
  • Rated Revolution(Rpm)：1850
  • Flywheel Horsepower(HP)：160
  • Piston Displacement(L)：9.73
  • Transport Package：Nude Packing
  • Specification：5477*3725*3517mm
  • Trademark：Crawler Bulldozer
  • Origin：Shandong, China
  • HS Code：8429191000
  • Production Capacity：1000 Unit,Units Per Month

Description

Product OverviewProduct Paramenters830/1100Product Configuration
230HP U-Blade Track Type Bulldozer Ty230
