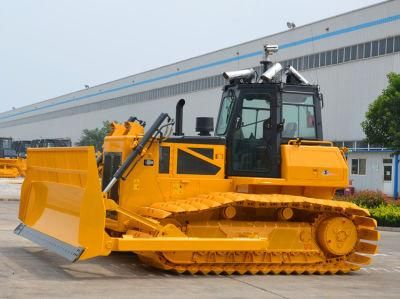

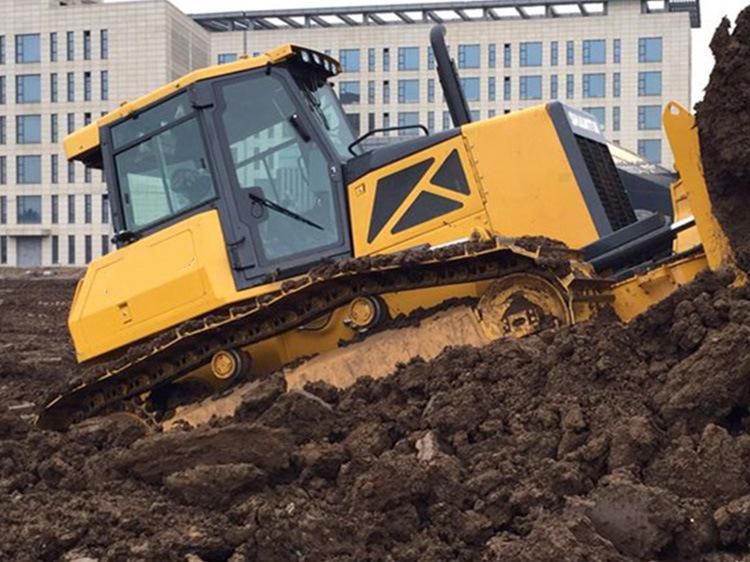

• Model NO.：DH16K
• Engine Power：74~147kw
• Certification：CE, ISO9001: 2000
• Condition：New
• Color：Yellow
• Net Power：142kw(190HP)
• Emission Standard：Tier4 Final, Euro Stage IV
• Rated Speed：2000rpm , 2100rpm
• Gross Power：142kw(190HP
• Number of Cylinders：6-107mm-124mm , 6-104mm-132mm
• Piston Displacement：6.7L
• Maximum Torque：850nm,1400rpm
• Power Transmission System：Double Loop Electro Static Pressure Drive, Intell
• System Overflow Pressure：42500kpa
• Travel Speed Forward：0~10km,H
• Travel Speed Reverse：0~10km,H
• Tractive Force：230kn
• Steering Clutch：Hydraulic Motor Differential Steering, in Situ St
• Steering Brake：Normally Closed Brake
• Ground Length：3075mm
• Transport Package：Nude Packing
• Specification：5800*3400*3065mm
• Trademark：Crawler Bulldozer
• Origin：Shandong, China
• HS Code：8429119000
• Production Capacity：1000 Unit,Units Per Month

Product OverviewProduct ParamentersMODELDH16KEMISSION STANDARDTier4 final/ Euro Stage IVRATED SPEED2000rpm // 2100rpmGROSS POWER142kW(190hp)NET POWER138kW(185hp)NUMBER OF CYLINDERS6-107mm-124mm // 6-104mm-132mmPISTON DISPLACEMENT6.7LMAXIMUM TORQUE809Nm/1500rpm // 850Nm/1400rpmPOWER TRANSMISSION SYSTEMDouble loop electro static pressure drive, intelligent matching load changeSYSTEM OVERFLOW PRESSURE42500KPaTRAVEL SPEED FORWARD0~10km/hTRAVEL SPEED REVERSE0~10km/hTRACTIVE FORCE230kNSTEERING CLUTCHHydraulic motor differential steering, in situ steering, steering with loadSTEERING BRAKENormally closed brakeFINAL DRIVEOne stage straight gear + One stage planetary gearUNDERCARRIAGE SYSTEMXLLGPTYPEPivot, balanced beam suspension, semi-rigid structureTRACK TYPESingle-grouser SALT: sealed and lubricant trackTRACK GAUGE2040mm2350mmWIDTH OF TRACK SHOES560mm/610mm810mmGROUND LENGTH3075mm3075mmGROUND AREA34440/37515cm49815cmTRACK PITCH4343
