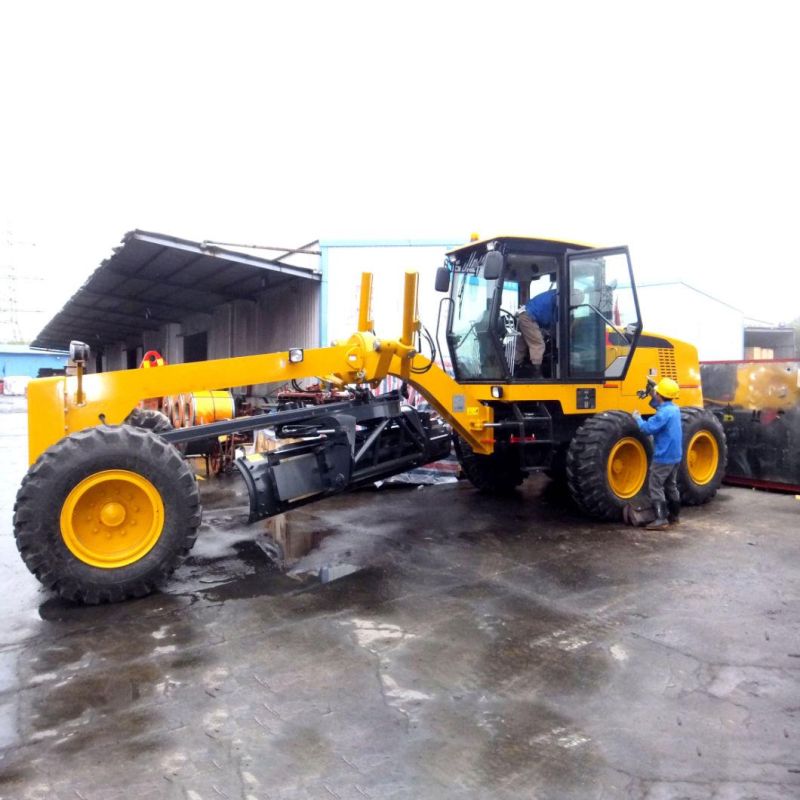

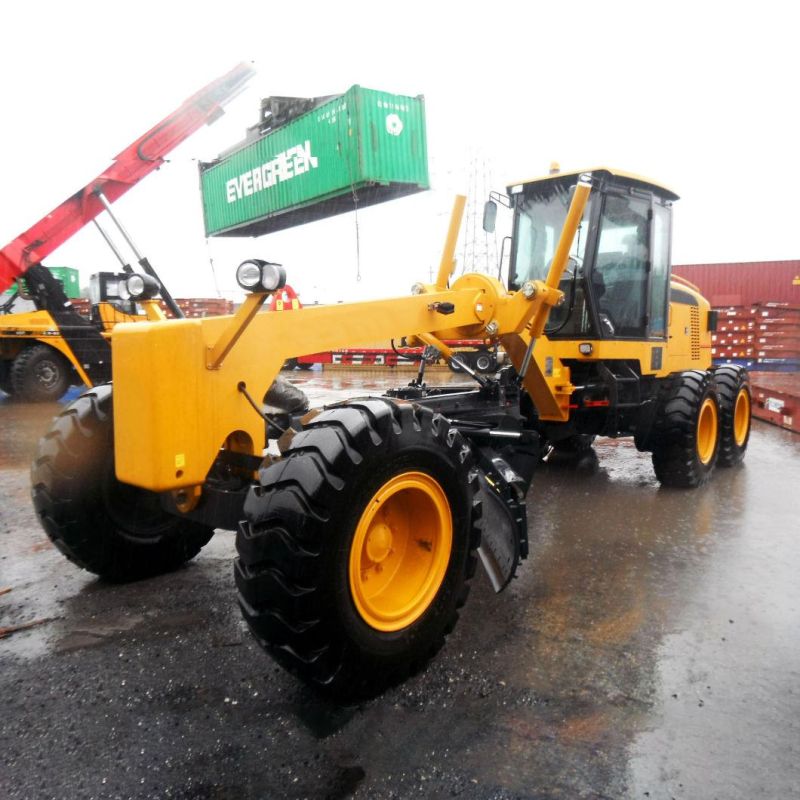

New Type 180HP Motor Grader Machine Gr180
Cruking Engineering Equipment (Xiamen) Co., Ltd.- After-sales Service:Video Technical Support, Online Support
- Warranty:1 Year
- Certification:ISO, CE
- Condition:New
- Application:Railway, Mine, Farmland, Highway
- Transmission:Hydraulic
Base Info
- Model NO.:GR180
- Walking Mode:Wheeled
- Type:Small Grader
- Engine Model:6CTA8.3-C190-II
- Rated Power/Speed:142kw,2200rpm
- Overall Dimension (Standard):8900*2625*3470mm
- Total Weight (Standard):15400 Kg
- Tire Specification:17.5-25
- Ground Clearance (Front Axle):430mm
- Space of Front and Rear Axles:6219 mm
- Space of Middle and Rear Wheels:1538 mm
- Tractive Effort:79 Kn
- Tire Inflation Pressure:260kpa
- Working System Pressure:18MPa
- Maximum Lift Height:450mm
- Maximum Cutting Depth:500mm
- Coolant:50L
- Fuel Tank:280L
- Transport Package:Nude Packing
- Specification:8900*2625*3470mm
- Trademark:motor grader
- Origin:Jiangsu, China
- HS Code:8429401900
- Production Capacity:1000 Unit,Units Per Month
Description
Product OverviewProduct Paramenters28LProduct Configuration
