• Model NO.：Sg16-3
• Transport Package：Nude
• Specification：120kw
• Trademark：shantui
• Origin：Shandong China
• HS Code：84292090
• Production Capacity：1000 Units Per Month

Basic Info.

Model NO. Sg16-3 Transport Package Nude Specification 120kw Trademark shantui Origin Shandong China HS Code 84292090 Production Capacity 1000 Units Per Month

Product Description

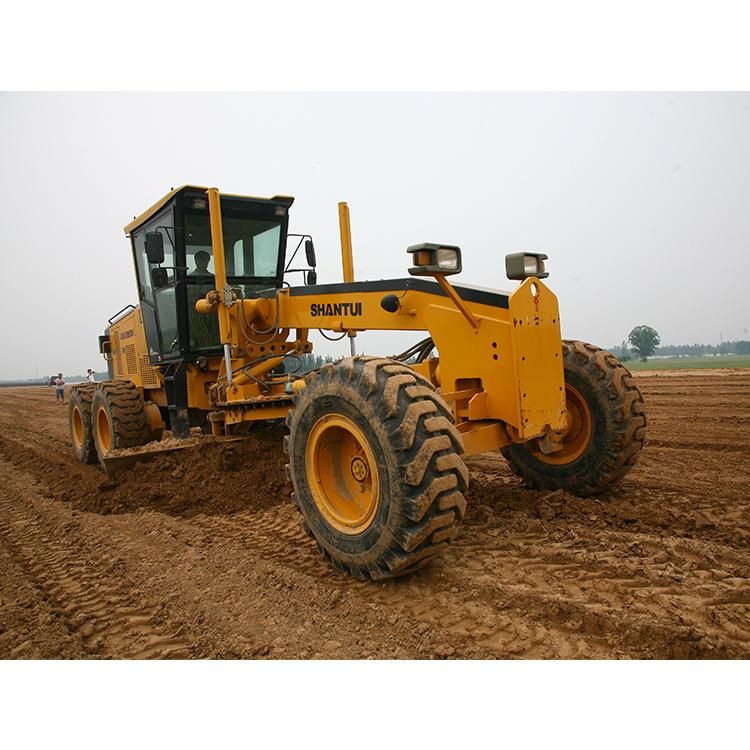

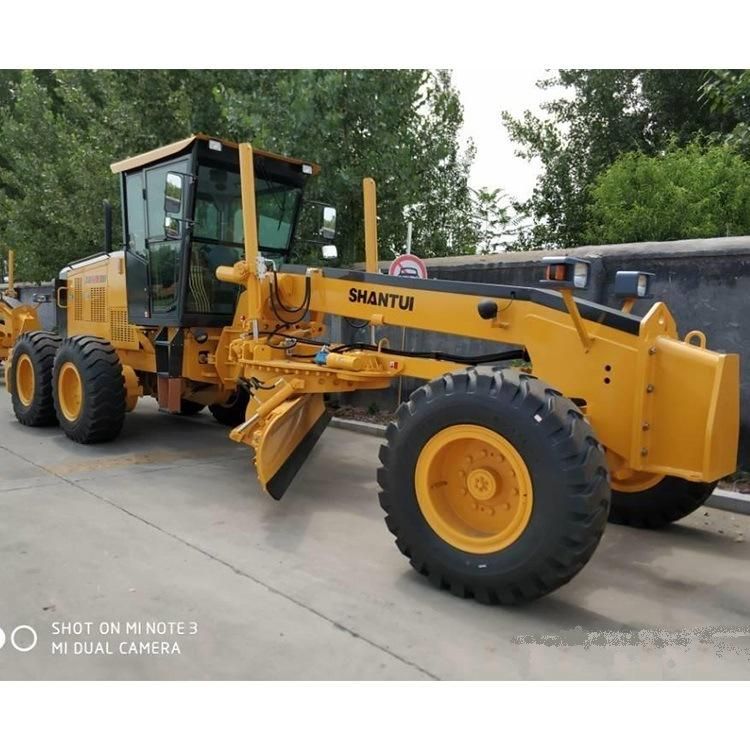

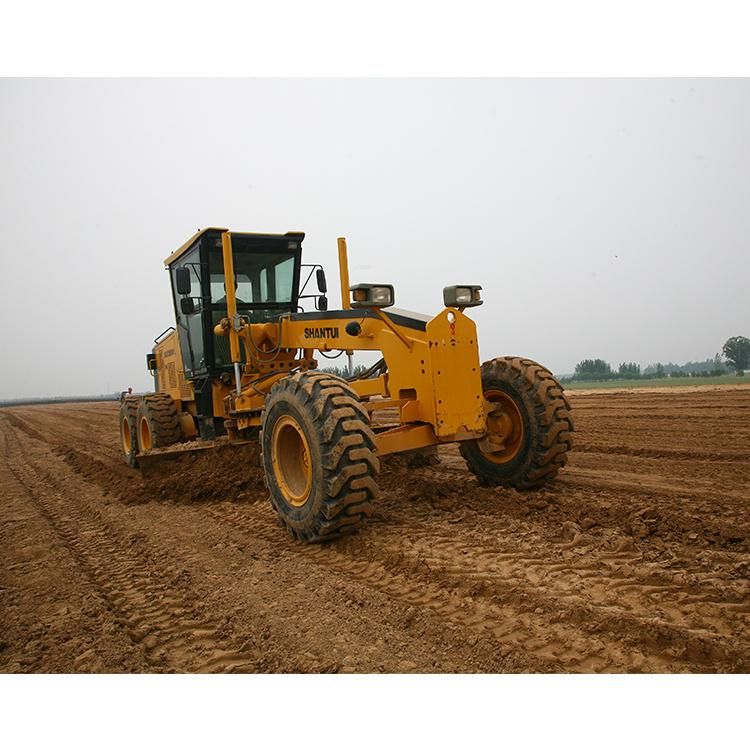

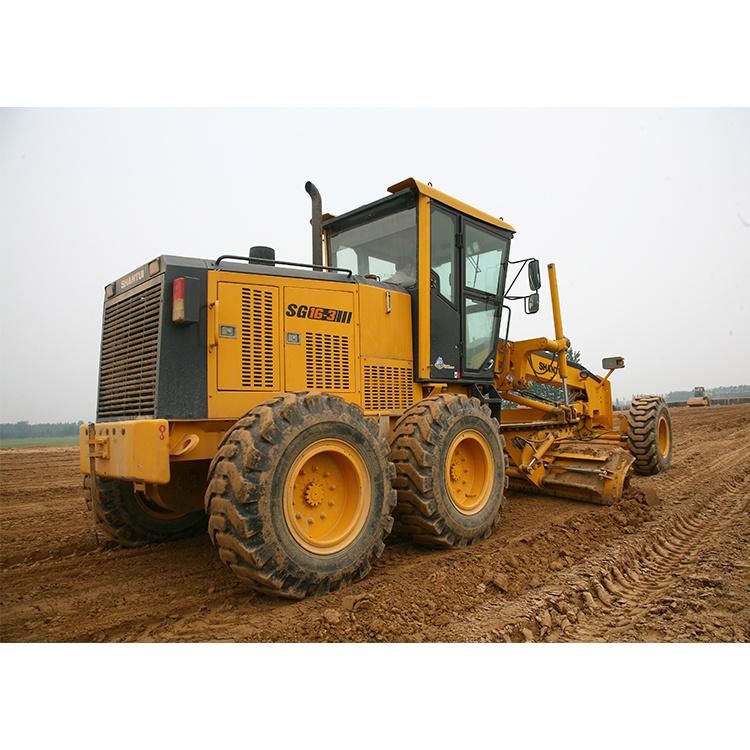

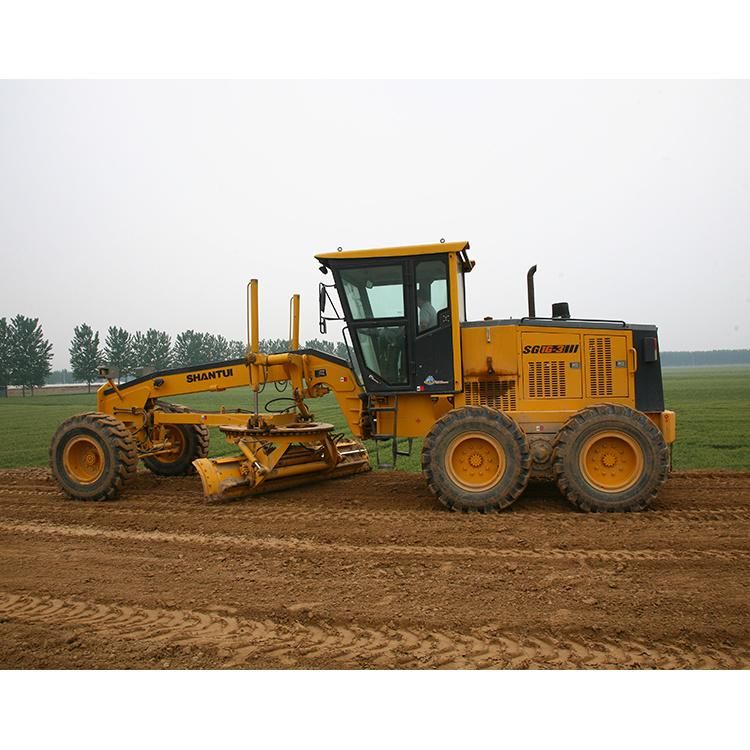

Shantui Brand Sg16-3 160HP Road Motor Grader Price
Product description

The 6-speed electronically controlled shift hydraulic transmission with ZF technology features reasonable speed ratio distribution to ensure that the whole machine has three working gears at choice to ensure operating reliability and flexibility.

 The box-type structure welded from integral plates features high strength.

 The extern ring gear adopted features high transmitted torque, larger blade cutting angle, and better material handling capability and is especially useful while handling dry materials and clays.

 Featuring simple operations and high impact resistance against external forces, it's applicable for the working conditions with high operating volume and severe operating environment.

 The international advanced hydraulic brake control technologies and international renowned hydraulic units are adopted to ensure braking safety and reliability.

 The full-hydraulic front wheel steering equipped features small turning radius and high mobility and flexibility.

 The high-grade full-sealed luxury cab with total visual field and the high-efficiency shock-absorbing seat maximize the operation comfort.

 The cab and the main frame are connected by shock absorber to ensure the operating safety and reliability.

 The standard high capacity heating and air conditioning system and the double-layer sealed side doors achieve <84dB noise and effectively reduce the labor strength of the operator.

 The maintenance-free high performance battery is equipped.

 The steel engine hood with four doors eases the maintenance and heat dissipation of the engine.

 The hydraulic oil tank adopts the overhead dismountable filter element, featuring convenient repairs and maintenances.

 The automatic leveling system can be additionally installed.

 The special drive tires and the conventional tires are at your choice for the motor grader.

Parameter

Product name	SG16-3
Performance parameters
Operating weight of machine (kg)	15100
Wheelbase (mm)	6260
Wheel tread (mm)	2155
Minimum ground clearance (mm)	430
Steering angle of front wheels (°)	±45
Articulated steering angle (°)	±25
Maximum traction force (kN)	79.3(f=0.75)
Turning radius (mm)	7,800 (Outer side of front wheel)
Maximum gradeability (°)	20
Width of shovel blade (mm)	3660
Height of shovel blade (mm)	635
Blade slewing angle (º)	360
Blade cutting angle (º)	37-83
Maximum digging depth of blade (mm)	500
Length (mm)	8726
Width (mm)	2600
Heigh (mm)	3400
Engine
Engine model	6BTAA5.9-C160
Emission	China-II
Type	Mechanical direct injection
Rated power/rated speed (kw/rpm)	118kW/2200
Drive system
Torque converter	Single-stage single-phase three-element
Transmission	Countershaft power shift
Gears	Six forward and three reverse
Speed for forward gear I (km/h)	5.4
Speed for forward gear II (km/h)	8.4
Speed for forward gear III (km/h)	13.4
Speed for forward gear IV (km/h)	20.3
Speed for forward gear V (km/h)	29.8
Speed for forward gear VI (km/h)	39.6
Speed for reverse gear I (km/h)	5.4
Speed for reverse gear II (km/h)	13.4
Speed for reverse gear III (km/h)	29.8
Brake system
Service brake type	Hydraulic brake
Parking brake type	Mechanical brake
Brake oil pressure (MPa)	10
Hydraulic system
Working pump	Constant displacement gear pump, with flow at 28ml/r
Operating valve	Integral multi-way valve
Pressure setting of safety valve (MPa)	16
Pressure setting of safety valve (MPa)	12.5
Filling of fuel/oils/fluids
Fuel tank (L)	340
Working hydraulic fuel tank (L)	110
Transmission (L)	28
Drive axle (L)	25
Balance box (L)	2X38
