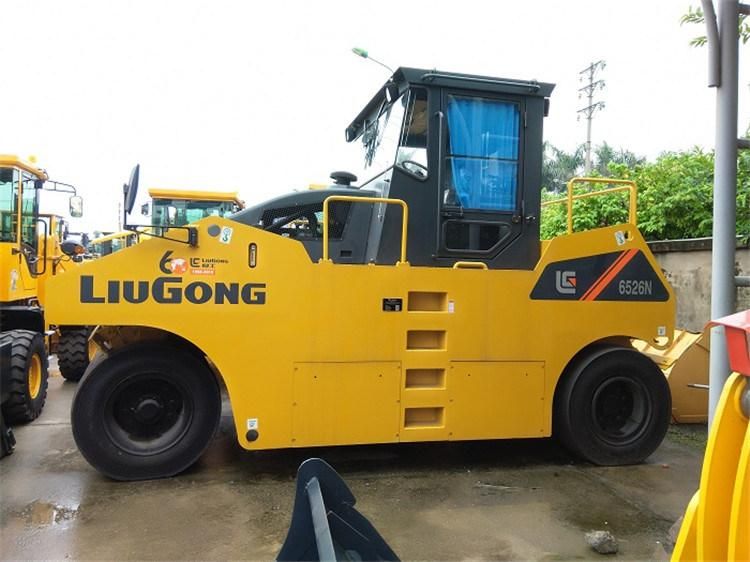

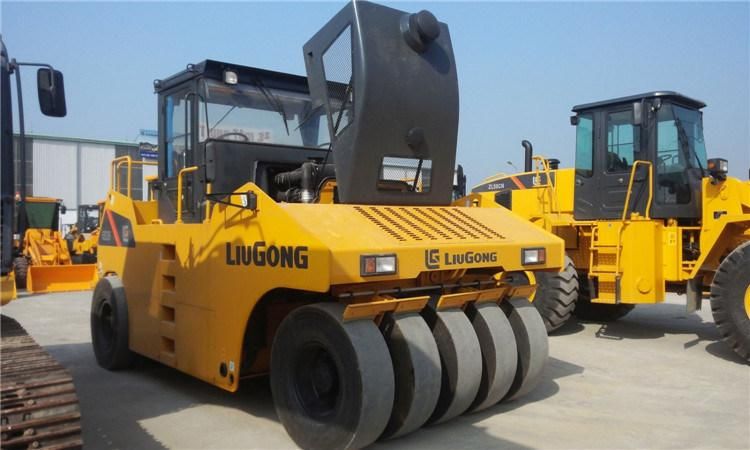

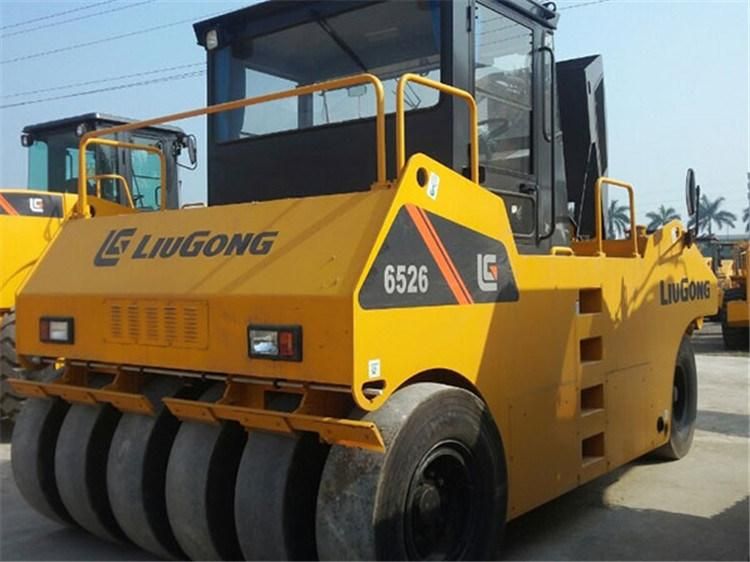

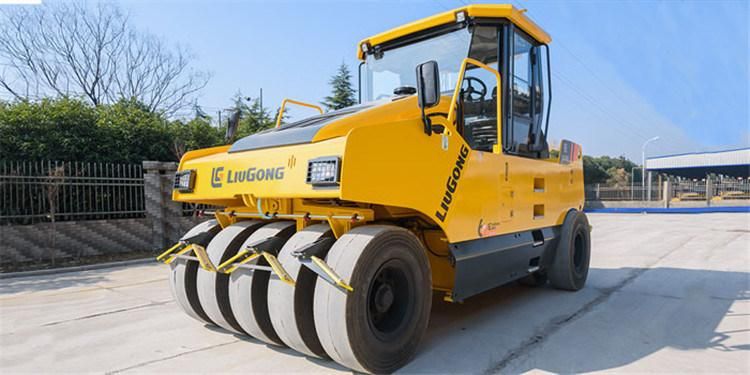

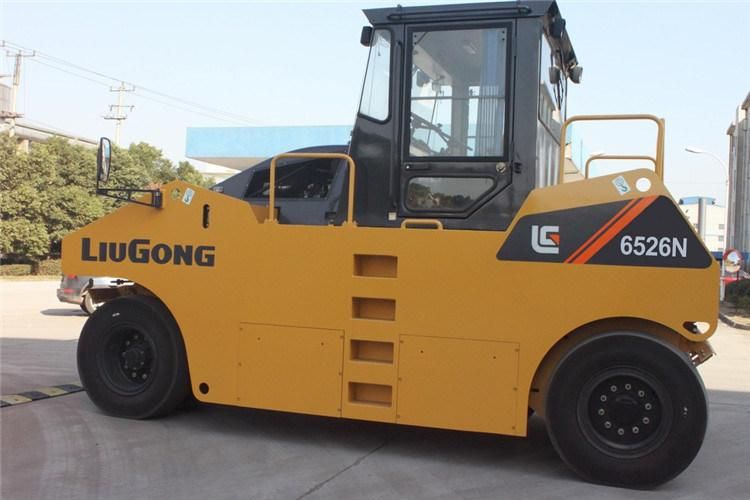

Liugong 26 Ton Clg6526 Tyre Compact Road Roller Price

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
  • Type:Road Roller
  • Working Method:Vibration
  • Axle:Biaxial Dual-Drum
  • Grinding Wheel Type:Slot Grind
  • Compaction Depth:30cm
  • Engine Type:Diesel Engine

Base Info

  • Model NO.:Clg6526
  • Travel Speed:40cm,s
  • Centrifugal Force:27KN
  • Certification:CE, ISO 9001:2000, ISO 9001:2008
  • Condition:New
  •  Max. Operating Mass:26000kg
  • Min. Operating Mass:21000kg
  • Rolling Pressure:250~420kpa
  • Single Tyre Load:2364kg
  •  Working Speed:0~8km,H
  •  Traveling Speed:0~20km,H
  •  Compacting Width:2750mm
  •  Min. Ground Clearance:290mm
  •  Wheelbase:3840mm
  • Transport Package:Nude
  • Specification:132kw
  • Trademark:Liugong
  • Origin:Guangxi China
  • Production Capacity:1000 Units Per Month

Description

Item  CLG6526Mass (kg)            Max. Operating Mass26000  (kg)             Min. Operating Mass21000  (kPa)                Rolling Pressure250~420  (kg)                 Single Tyre Load2364  (kPa)                 Tyre Inflation Pressure400~725  (mm)                 Overlapping of Front&Rear Tyre50Drive (km/h)             Working Speed0~8  (km/h)                   Traveling Speed0~20  (mm)          Compacting Width2750  (%)            Theoretical Gradeability20  (mm)                    Min. Ground Clearance290  (mm)                           Wheelbase3840  (°)                   Steering Angle±30  (mm)             Swing of Front Tyre±50  (mm)                   Min. Outside Turning Radius9000                          Tyre Type11.00-20-16PR                        Tyre Numbers56          Front 5 Rear 6  (mm)                      Overall Length4950  (mm)                     Overall Width2750  (mm)                      Overall Height3250Engine                           BrandDF Cummins                            Model6BTA5.9-C180-II                          Emission RegulationTier  (kW)                       Rated Power132  (r/min)                       Rated Rotation Speed2200  (g/kW.h)                Theoretical Fuel Consumption232  (N.m)                        Max. Torque750                        Number of Cylinders6  (L)                    Displacement5.9                    AspirationTurbocharged                       Cooling TypeWaterHydraulicTravel Pump                           Brand                            Model  (mL)                         Displacement Travel Motor                               Brand                           Model  (mL)                        DisplacementDrive Axle                            BrandFenyi                            ModelPQ20.5A Volume (V/Ah)                        Battery24/200  (V/A)                         Alternator28/70  (L)                   Drive Axle18  (L)               Booster Pump6  (L)                                Fuel Tank220  (L)                            Hydraulic Oil Tank60  (L)                        Engine Oil15  (L)                Transimission/Torque Converter27  (L)                           Coolant32  (L)                  Sprinkler Tank1000
