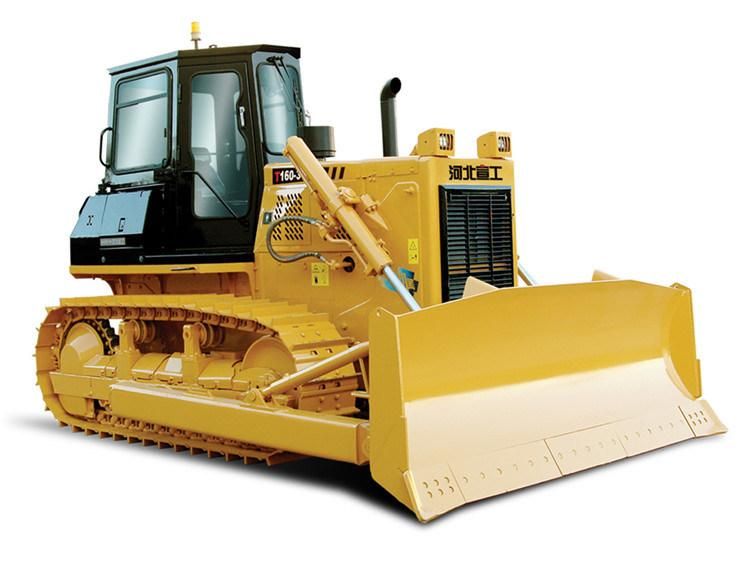

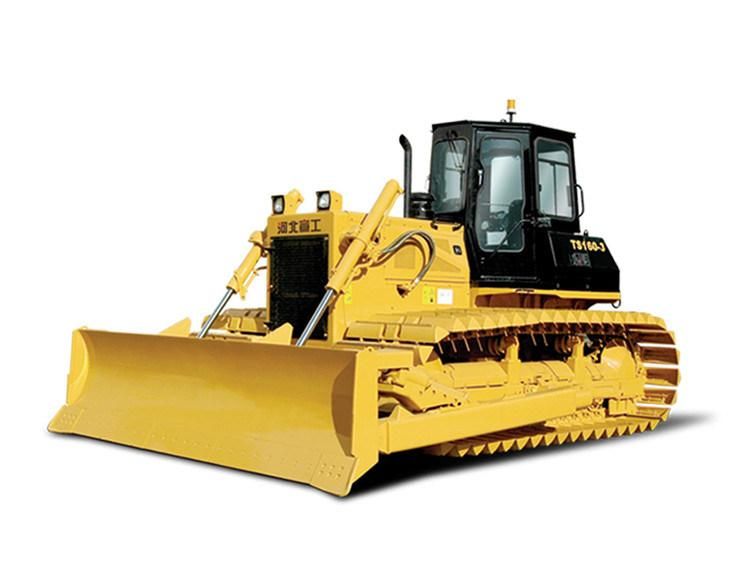

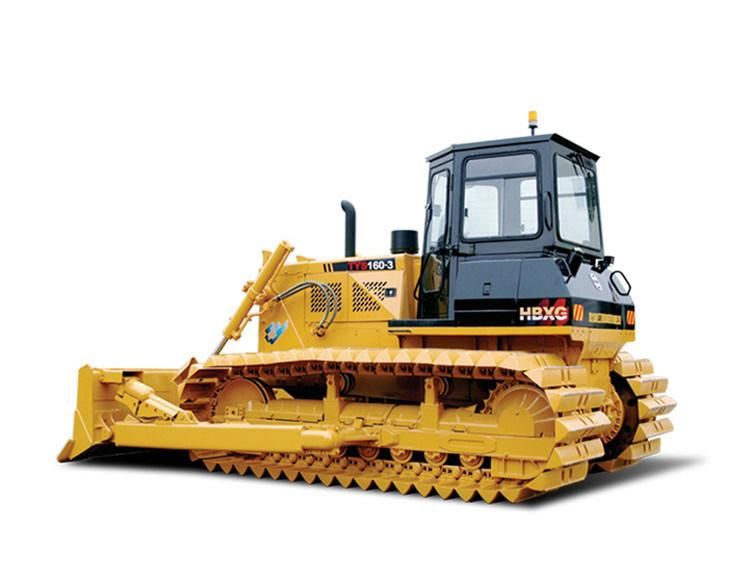

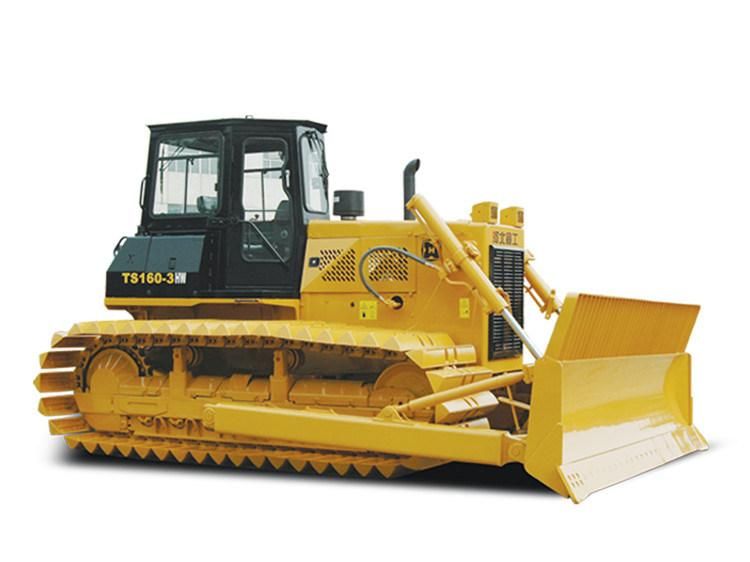

Hbxg Brand Ty165-3 18t 178HP Hydraulic Crawler Bulldozers with Low Price
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Type：Universal Type
- Transmission：Hydraulic Transmission
- Walking Mode：Crawler
- Load and Unload Method：Front Discharge
- Engine Power：74~147kw
- Certification：CE, ISO9001: 2000
Base Info
- Model NO.：Ty165-3
- Condition：New
- Color：Yellow
- Transport Package：Nude
- Specification：17550kg
- Trademark：HBXG
- Origin：Hebei China
- HS Code：8429199000
- Production Capacity：1000 Units Per Month
Description
Y165-3 Bulldozer
Unit
165HP
Model
TY165-3
L*W*H(Ripper not included)
mm
5447*3297*3160
Operating weight(Ripper not included)
kgs
17550
Engine Model
WD10G178E25
Rated Power
kw/rpm
131/1850
Gradeability(Longitudinal/Transverse)
°
30/25
Blade type
Straight tilt blade
Blade width
Dozing capacity
Max. drop below ground of blade
mm
m3
mm
3297
4.6
420
Max. lift height of blade
mm
900
Ripper type
Three shanks ripper
Max. digging depth of Ripper
mm
550
Max. lifting height of ripper
mm
510
Min. ground clearance
mm
352.5
Number of carrying roller(each side)
2
Number of track roller(each side)
6
Number of track shoe(each side)
38
Width of track shoe
mm
500
Track gauge
mm
1880
Ground lenth/Ground pressure
mm/mpa
2570/0.067
Pitch of track
mm
203
Forward speed
km/h
1st 0~3.32
2nd 0~6.26
3rd 0~11.4
Reverse speed
km/h
1st 0~4.0
2nd 0~7.57
3rd 0~13.87
