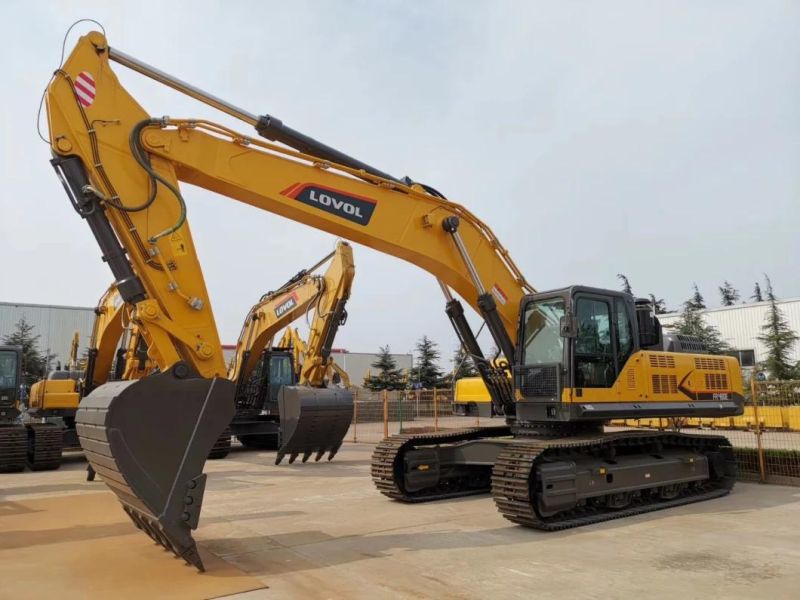

• Model NO.：FR330D
• Size：Large-Scale
• Certification：CE, ISO9001: 2000
• Condition：New
• Dimension：9580*2980*3060mm
• Engine：Isuzu
• Power：190.5kw,2000rpm
• Operating Weight：33600kg
• Transport Package：Nude Package
• Specification：large
• Trademark：LOVOL
• Origin：China
• Production Capacity：300units,Month

Main Parameters11303*3202*3290Operation Weight (Standard Configuration) (KN)33600Standard Bucket Capacity1.5Transport Dimensionsmm11303*3202*3290Bucket Digging Force (KN)205Bucket Rob Digging Force (KN)155Maximum Traction (KN)290DeviceMax. Walking Speed (Km/h)4.9Climbing Performance(°)35Total Length of the Crawler4600Minimum Revolving Radius (mm)4320Width of the Crawler600Ground Pressure (Kpa)68Turning MechanismTurning Speed (rpm)9.2EngineModel AA-6HK1XQPTypeFour Strokes, Water-cooling, Straight, Turbocharger, Inter CoolingRated Power/Rotate Speed (KW/rpm)190.5/2000Rated Torque/Rotate Speed (N.m/rpm)872.8/1700Cylinder Diameter*Stroke (mm)115*125Output Value (L)7.79Fuel Consumption (g/KW.h)237Fuel Tank Capacity (L)630Hydraulic SystemMain Pump Pressure (Mpa)37Main Pump Flow Operating ScopeMaximum Digging Height (mm)10120Maximum Dumping Height (mm)7400Maximum Digging Depth (mm)7330Maximum Digging Radius (mm)11075 OptionalBreaking Hammer& Standard Bucket & Earthmoving Bucket & Rock-moving Bucket
