• Model NO.：LZ-3A
• Certification：ISO9001: 2000, CE, SGS
• Condition：New
• Color：Yellow
• Drive Mode：Electric Motor Drive, Pneumatic Drive, Diesel Driv
• Output Capacity：1.5-3m 3 ,H
• Max. Horizontal Conveying Distance：200m
• Max. Aggregate Size：10 mm
• Conveying Hose Inner Diameter：50mm
• Transport Package：Standard Free-Fumigation Packing Case
• Specification：ISO, CE, SGS
• Trademark：Leadcrete
• Origin：China
• HS Code：84743100
• Production Capacity：5000 Sets,Year

Basic Info.

Model NO. LZ-3A Certification ISO9001: 2000, CE, SGS Condition New Color Yellow Drive Mode Electric Motor Drive, Pneumatic Drive, Diesel Driv Output Capacity 1.5-3m 3 /H Max. Horizontal Conveying Distance 200m Max. Aggregate Size 10 mm Conveying Hose Inner Diameter 50mm Transport Package Standard Free-Fumigation Packing Case Specification ISO, CE, SGS Trademark Leadcrete Origin China HS Code 84743100 Production Capacity 5000 Sets/Year

Product Description

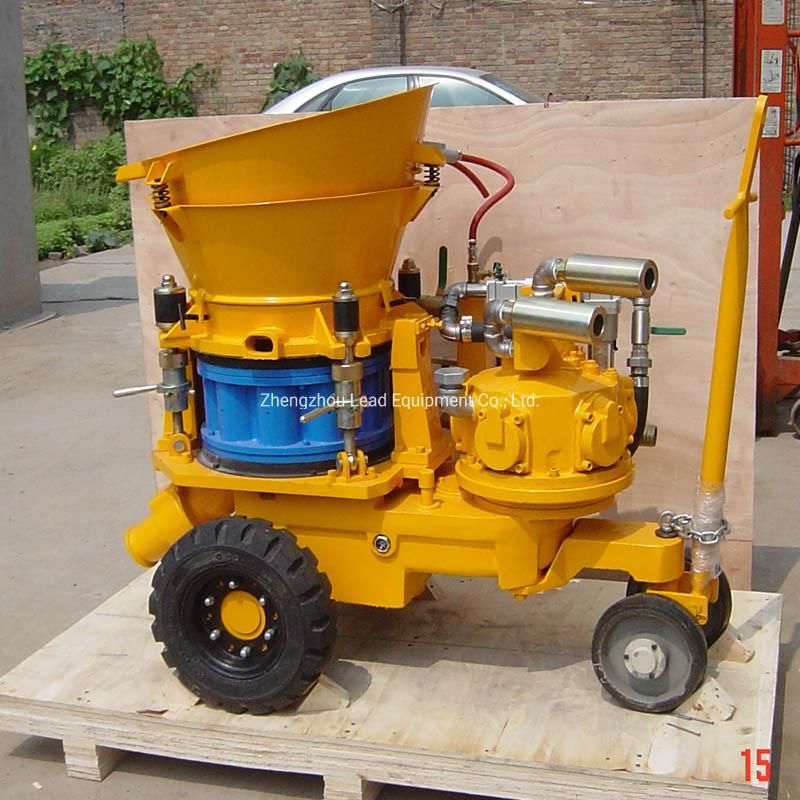

LZ-3A pneumatic type air motor drive dry small shotcrete machine

Description:

LZ-3 Shotcrete machine/Gunite machine /Concrete Spraying Machine is small-sized shotcrete machine for the dry spraying process.

LZ-3 shotcrete machine can be used as well for small jobs, such as joint filling, swimming pool, refractory application and extensive slope consolidation work, etc.


LZ-3 shotcrete machine is available in following versions:
Basic: Electric drive can be combined with tyre chassis
Extended (optional): Air motor or diesel drive combined skid or rail-wheel



Drive type	air motor drive
Output Capacity	1.5-3m 3 /h
Max. Horizontal Conveying Distance	200m
Suitable Mix Ratio(Cement/Sand)	≤1:3~5
Max. Aggregate Size	Φ10 mm
Conveying Hose Inner Diameter	Φ50mm
Conveying Pressure	0.2-0.4MPa(29-58PSI)
Air Consumption for conveying material	5~6m 3 /min(180-215CFM)
Air Motor Air Pressure	0.5MPa(71PSI)
Material Charging Height	0.9m
Rotor Speed	14r/min
Air Motor Type	TMH3.2
Air Motor Air Consumption	4.8m 3 /min(171CFM)
Overall Dimension(length×width×height)	1.13×0.54×1.02m
Net Weight	430kg(947lbs)
