• Model NO.：LDS1500E
• Condition：New
• Color：Green
• Drive Type：Electric Motor, Diesel Engine, Gasoline Engine
• Transport Package：Plastic Wrap, Plywood Case, Free-Fumigation
• Specification：ISO, CE, SGS
• Trademark：Leadcrete
• Origin：China
• HS Code：8413609090
• Production Capacity：5000 Sets,Year

Basic Info.

Model NO. LDS1500E Condition New Color Green Drive Type Electric Motor, Diesel Engine, Gasoline Engine Transport Package Plastic Wrap, Plywood Case, Free-Fumigation Specification ISO, CE, SGS Trademark Leadcrete Origin China HS Code 8413609090 Production Capacity 5000 Sets/Year

Product Description

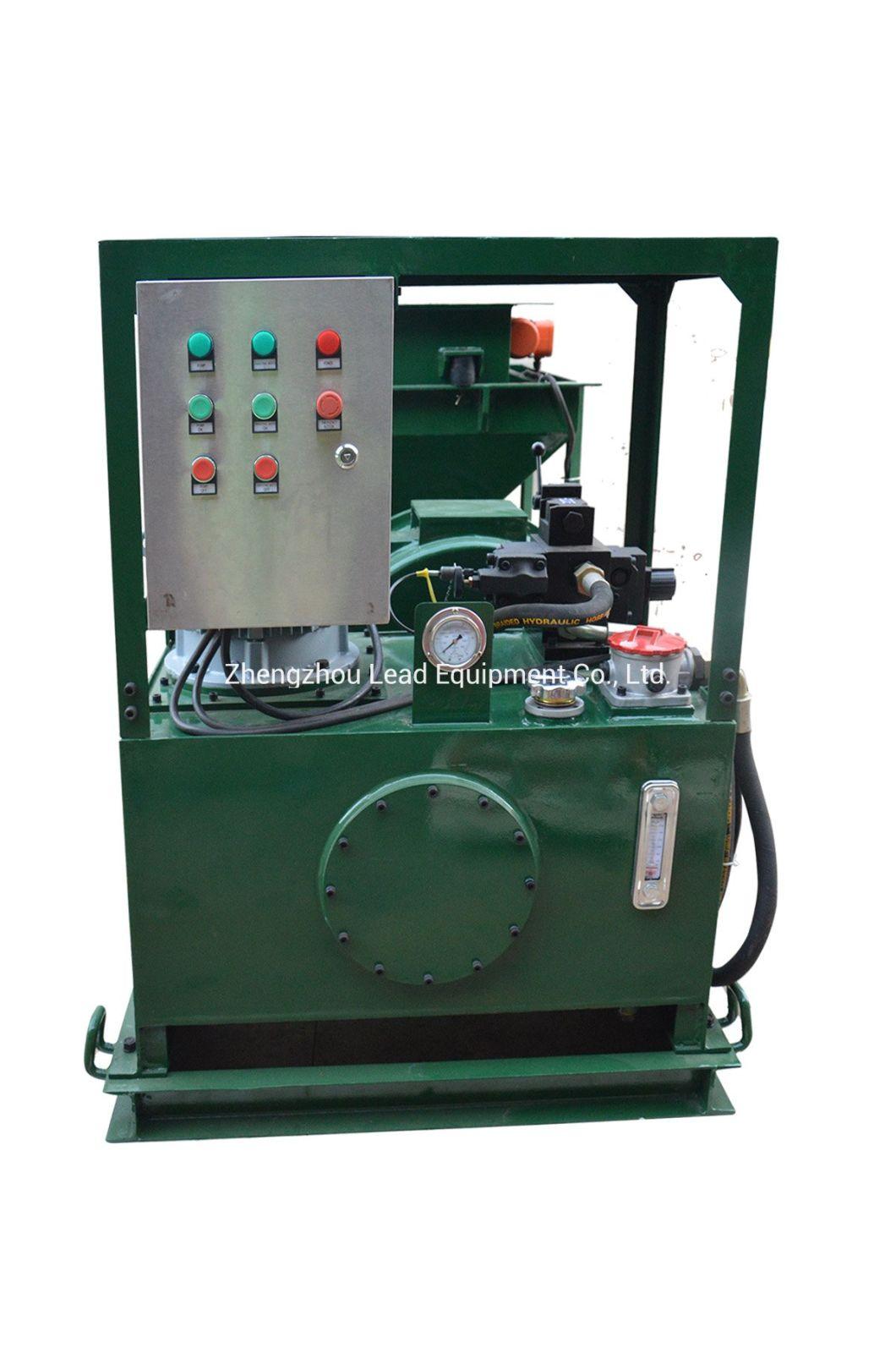

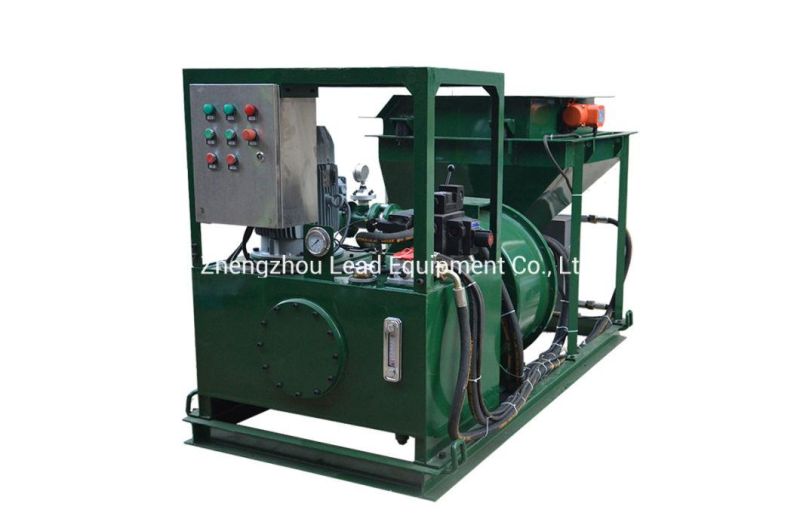

LDS1500E Electric Motor Type Shotcrete Concrete Peristaltic Carousel Pump



LDS1500E Electric Motor Type Shotcrete Concrete Peristaltic Carousel Pump description:
The LDS1500 is a lightweight shotcrete pump run by a highly-reliable direct drive planetary gearbox and hydraulic power pack. This sturdy workhorse is made better with the added improvement of a direct drive to the carousel.

Note: we also supply Honda gasoline engine type and diesel engine type shocrete small concrete pump.
Chinese squeeze hose and Trelleborg squeeze hose are also for optional.


LDS1500E Electric Motor Type Shotcrete Concrete Peristaltic Carousel Pump features:
1) Highly reliable direct drive planetary gearbox
2) Infinite speed variation
3) Easily operating on site work
4) Standard spare part supply


LDS1500E Electric Motor Type Shotcrete Concrete Peristaltic Carousel Pump application:
It's designed specifically for the dome-building process. It can be used for pumping concrete, grout and shotcrete.

Pressure	1.5 Mpa (Chinese squeeze hose)/ 3.5 Mpa (Trelleborg squeeze hose)
Output	1.5-3m3/h
Max. Aggregate	8mm
The Squeeze Hose	ID 50mm
Conveying Hose	ID 38mm
Squeeze pump	LH50-455
Power	5.5kw, electric motor
Overall Dimension	1900x850x1250mm
Hopper volume:	200 Liter
Weight	610kg
Requested air compressor:	3m3/min, 0.5Mpa Pressure
Vertical Conveying Distance	15 m (Chinese squeeze hose)/30 m (Trelleborg squeeze hose)
Horizontal Conveying Distance	40 m (Chinese squeeze hose)/80 m (Trelleborg squeeze hose)
