• Model NO.：ZY32-250-1000
• Whole Line Size：About 18*1.8*1.4m (Depend on Final Design)
• Operation Language：English or as Per Client`S Required
• Cutting Type：Cut to Length
• Controlling System：Mitsubishi PLC & Converter
• Transport Package：40gp
• Specification：CE SGS BV
• Trademark：zhongyuan
• Origin：China
• HS Code：84552210
• Production Capacity：20 Sets,Month

ItemSpecificationMaterialTypePre-painted steel coil & galvanized coilsThickness (mm)0.4-0.7Yield strength (mpa)235-345Roller material45#Chrome steelForming speed(m/min)About 15Speed adjusting modeAC FrequencyRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mold steel Length measurementEncoderControl modeMitsubishi PLCOperating modeButton + Mitsubishi Touch screenMain motor power (kw)5.5 kw  (Depend on final design)Hydraulic station power 2.2 kw (Depend on final design)Total power (kw)7.7 kwUncoiler's loading capacityMax. Capacity: 5000kgs (can be increased to be 10T)Machine`s sizeAbout 10.5*1.7*1.4m (Depend on final design)

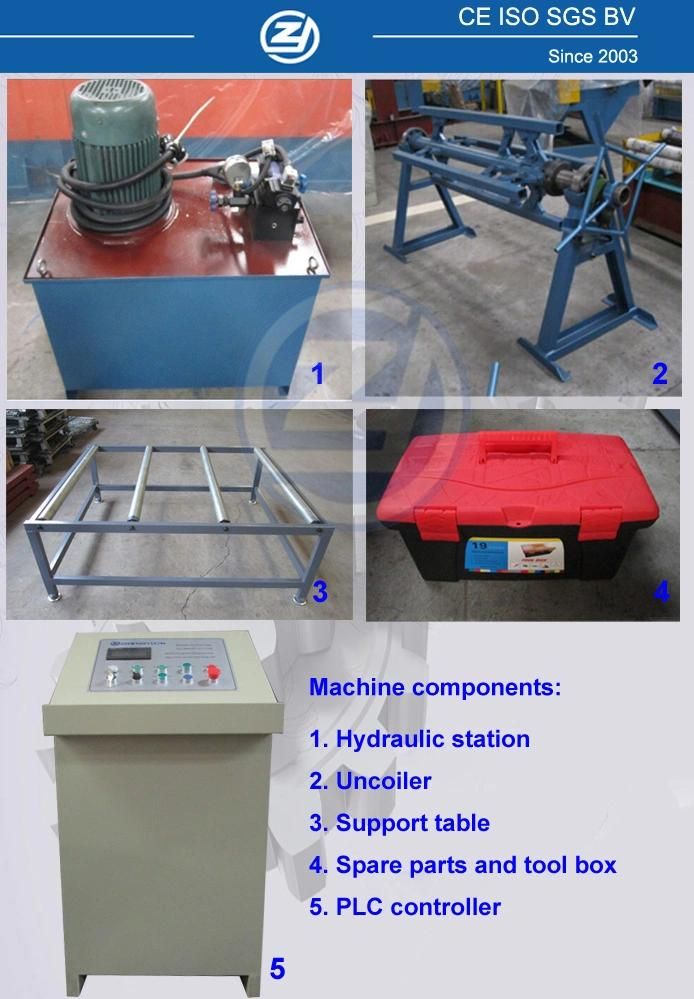

Components of machineDecoiler
(manual decoiler and hydraulic decoiler for option)1set  Feeding & guiding device1setMain roll forming machine1setHydraulic cutting system1setControlling system1setRun out table (auto. Stacker for option)1set
Process flow:
Decoiler -- Feeding & Guiding -- Roll Forming-- Hydraulic Cutting - Product to Run Out Table
Controller:
Controller is the "CPU" of forming machine. We choose Mitsubishi PLC from Japan.
With touch screen mode, let your workers enjoy the easy operation;
With auto working mode, let your workers free their hands!






About us
We are professional in making roll forming machines since 2003. Company occupies 6650, in which 5650 for workshops.
1.  Capacity: 12-15 sets/month
2.  Delivery: in only 5-8 weeks for urgent order
3.  Have our own tool center. 12 sets CNC machines.
4. Zhongyuan is a "All-in-house source"
     --from raw material to the final high-precision forming machine. We have our precise tooling center.
5.  You can rely on our team!
      We have engineers with experience more than 15 years in metal forming industry.

Get Free:
"Send" below get profile drawing & design technical support by our 15 year experience technicians FOR FREE!
