• Model NO.：LGH-H series
• Theory：Reciprocating Pump
• Power：Electric Motor
• Pressure：High Pressure
• Application：Foundation Treatment,Curtain Grouting,etc.
• Max.Aggregate：3mm
• W/C：Larger Than 0.5
• Hydraulic Oil Tank：100L
• Certificate：ISO
• Transport Package：Veneer Case or According to Customers′requirement
• Specification：nonstandard
• Trademark：leadcrete
• Origin：Henan, China(Mainland)
• HS Code：8413609090
• Production Capacity：500 Sets,Year

Basic Info.

Model NO. LGH-H series Theory Reciprocating Pump Power Electric Motor Pressure High Pressure Application Foundation Treatment,Curtain Grouting,etc. Max.Aggregate 3mm W/C Larger Than 0.5 Hydraulic Oil Tank 100L Certificate ISO Transport Package Veneer Case or According to Customers′requirement Specification nonstandard Trademark leadcrete Origin Henan, China(Mainland) HS Code 8413609090 Production Capacity 500 Sets/Year

Product Description

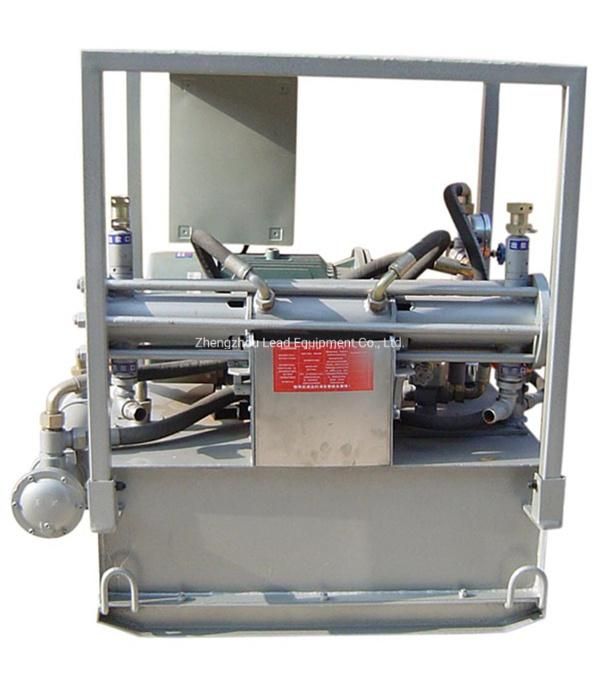

LGH-H series hydraculic grout pump

LGH-H series dual cylinders and single action hydraulic grouting pump is suitable for grouting pulgging project of high pressure and large displacement. This pump transmits pressure signals by working medium(slurry and hydraulic oil)to form closed-loop automatic control function, therefore the pump is simple in structure, can regulate timely and accurately, and has no overpressure problem. This pump can adjust its output and working pressure by continuously variable adjustment, the pump can grout simple-liquid and chemical grout.

Feature:

1. ISO9001-2008&CE

2. High pressure grouting pump

3. Dual cylinders and single action hydraulic grouting pump

4. Operation and maintenance are simple

5. Accessory: Suction hose, filter, delivery hose, junction device, tools, sealing parts bit. Optional: Thickness slurry hopper, hole plug, mixture ratio regulator, baume gauge.

power(kw)	overall dimension(m)	weight(kg)	aggregate	pump slurry ratio	hydraulic oil tank
11, 15	1.0× 1.0× 0.98	420	≤ Φ 3mm	0.5: 1-1: 1(W/C)	100L



power(kw)	model	output(L/min)	pressure(Mpa)
11	LGH110/4-11H	≤ 110	≤ 4
11	LGH80/5.6-11H	≤ 80	≤ 5.6
11	LGH60/7-11H	≤ 60	≤ 7
15	LGH110/5.6-15H	≤ 110	≤ 5.6
15	LGH80/8-15H	≤ 80	≤ 8
15	LGH60/10-15H	≤ 60	≤ 10
