• Model NO.：ZL30GN
• Type：Small Loader
• Load and Unload Method：Front Discharge
• Color：Yellow
• Transport Package：Nude
• Specification：25cbm
• Trademark：China
• Origin：China

Basic Info.

Model NO. ZL30GN Type Small Loader Load and Unload Method Front Discharge Color Yellow Transport Package Nude Specification 25cbm Trademark China Origin China

Product Description

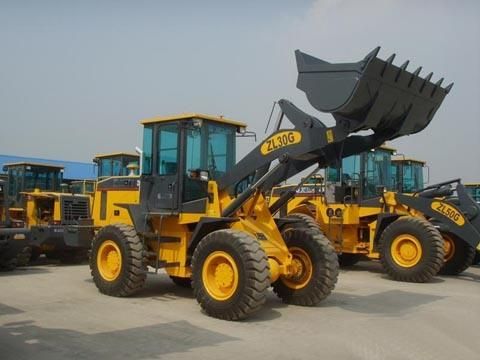

Optimized designing for its working device and its features in terms of dumping clearance, dumping reach, breakout force, raising capacity and total cycling time make ZL30G an international-class wheel loader, which is featured in automatic leveling and high. Optimum design of working device,dumping clearance,dumping reach,breakout force,raising capacity,short total cycling time,automatic leveling at high position,and greater productivity.
Center-point frame articulated, small turning radius and front and rear wheels track reduce resistance and tyre wear and improve the going-through capability of the whole machine.
Fully hydraulic steering,power shift transmission,flexable operation.
Key-block type propeller shaft,resistance against strike is strong,Power transmitting is reliable.
Air-valva control band type emergency brake system,safty and reliability.
Integated hood made of compound material,right and left open,auto-lock,reduce sound.Operation and maintenance easy.
The design of luxury cab egnomically,excellent sight.Operational air conditioner provides operator with a comfortable job environment.



Specification	ZL30G  Wheel Loader
L/M/H	6830*2460*3170mm
Rated loading weight	3t
Operating weight	10.5t
Max.traction force	90KN
Static side-dumping load
Min.ground clearance
Steering angle
Min.turning radius	<4800mm
Speed
Forward I Gear	7.8km/h
Forward II Gear	13km/h
Forward III Gear	25km/h
Forward IV Gear	35km/h
Reverse I Gear	9.5km/h
Reverse II Gear	28km/h
Engine
Engine model	YC6105G-1640H
Rated power/R.P.M	85kw/2300r/min
Cylinder/Cyliner dia./Stroke
Bucket capacity	1.8m3
Max.break-out force	110KN
Lifting force
Total cycling time
Unloading height
Unloading distance
Optional attachment
Tyre specification	17.5-25
Inflation pressure
Engine options	Weichai Detuz engine/perkins 1006-6T engine
